Delta VFD-B Series User Manual

Chapter 5 Parameters|VFD-B-P Series
Revision April 2009, SW V1.00 5-33
01 - 16 Acceleration S-Curve
01 - 17 Deceleration S-Curve
Factory Setting: 00
Settings 00 S-curve disabled
01 to 07 S-curve enabled (07 is the smoothest)
 This parameter is used to ensure smooth acceleration and deceleration via S-curve.
The S-curve is disabled when set to 00 and enabled when set to 01 to 07.
Setting 01 gives the quickest and setting 07 the longest and smoothest S-curve.

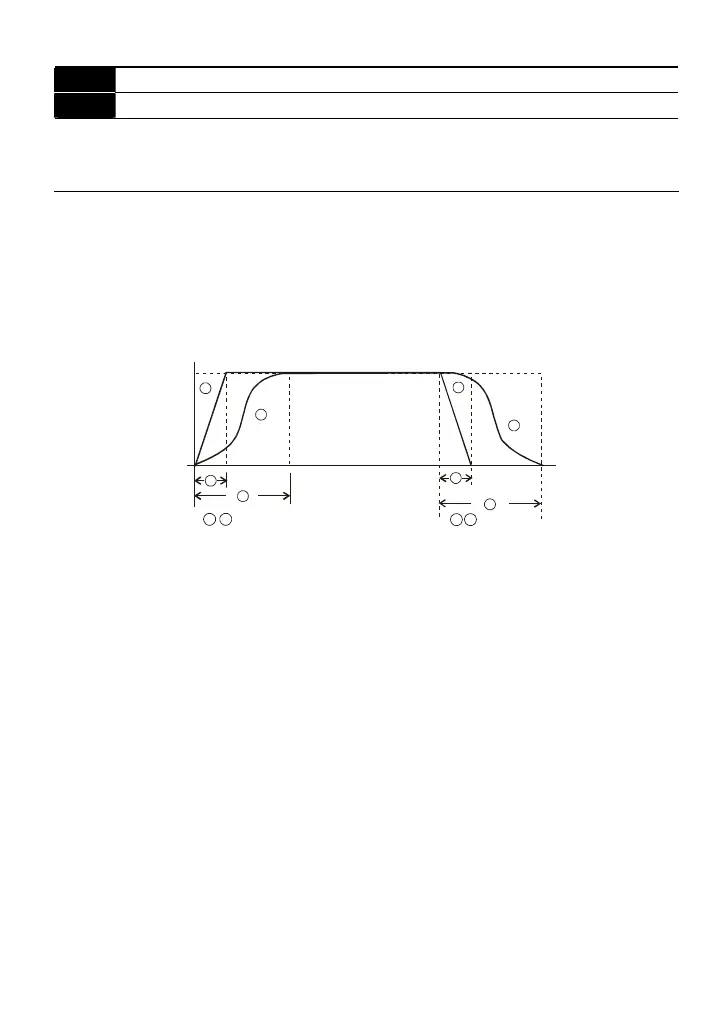

 The diagram below shows that the original setting of the Accel/Decel Time is only for reference
when the S-curve is enabled. The actual Accel/Decel Time depends on the selected S-curve
(01 to 07).
3
1
2
4
1
3
4
2
1 2
Disable S curve
3 4
Enable S curve
A
cceleration/deceleration Characteristics

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
