Delta VFD-EL-W Series User Manual

Chapter 2 Installation and WiringVFD-EL-W
27

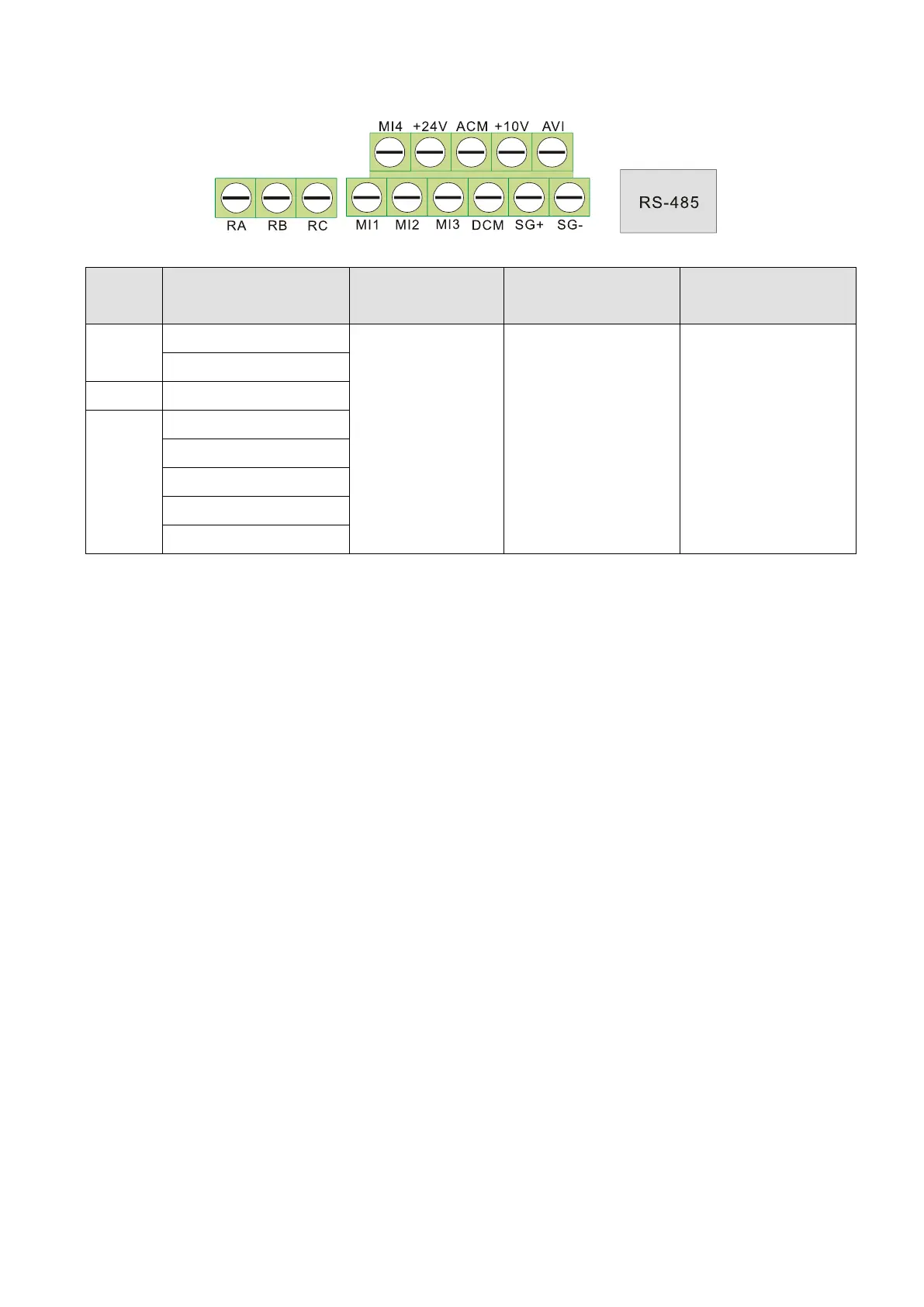

2-4-2 Specification for the control terminals
Frame
Model
Wire
Single Row Terminal
Torque (±10%)
Double Row Terminal
Torque (±10%)
A1
VFD007EL21W(-1)
16–24 AWG
(1.3–0.2 mm
2
)
4 kgf-cm
(3.5 lbf-in)
(0.4 N-m)
7 kgf-cm
(6.2 lbf-in)
(0.7 N-m)
VFD007EL43W(-1)
A2
VFD015EL43W(-1)
B
VFD015EL21W(-1)
VFD022EL21W(-1)
VFD022EL43W(-1)
VFD040EL43W(-1)
VFD055EL43W(-1)
