Delta VFD-EL-W Series - Digital Keypad Overview

Chapter 3 Keypad and Start-up VFD-EL-W
31
3-1 Description of the Digital Keypad
3-1-1 Digital Keypad Appearance

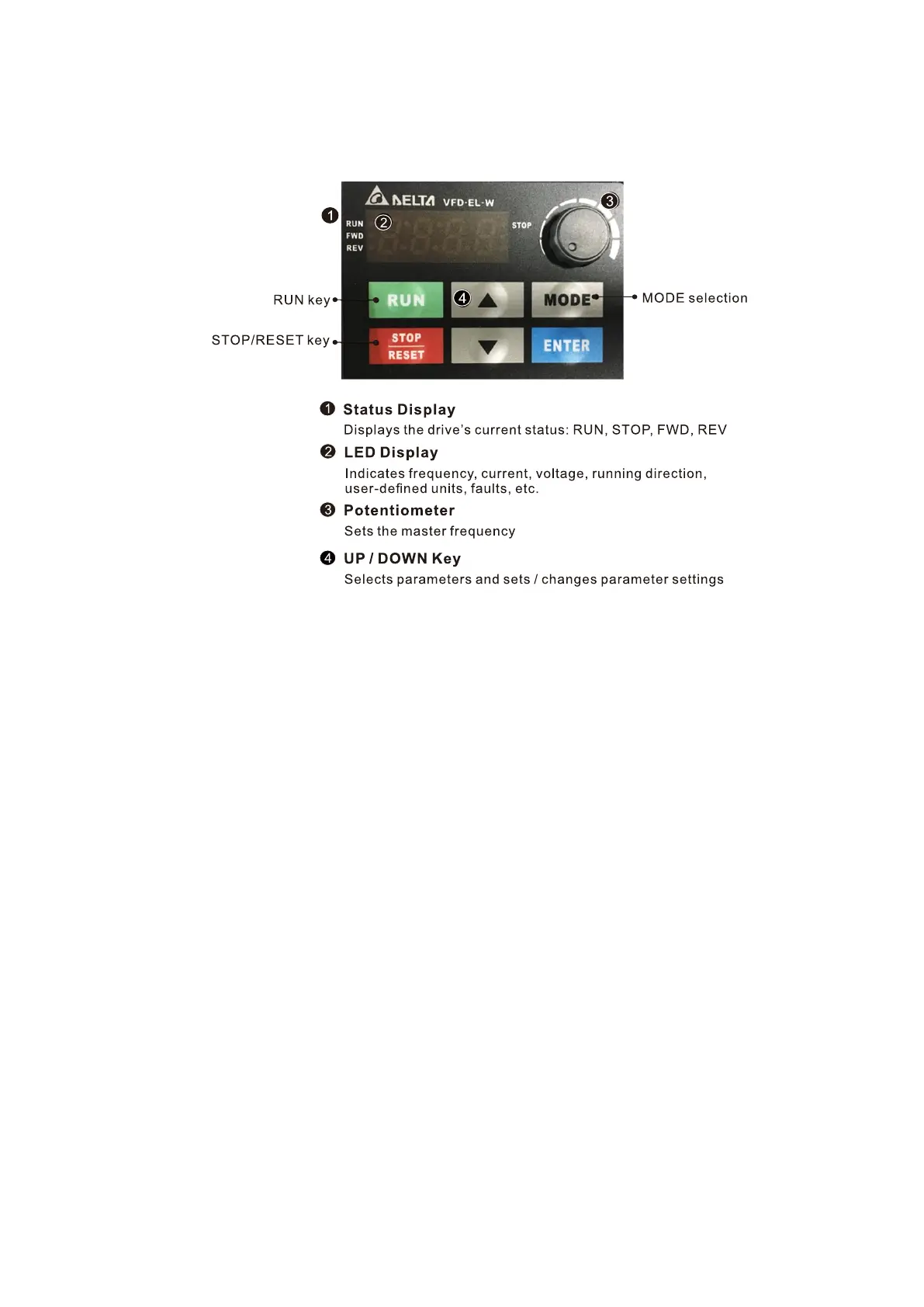

VFD-EL-W series operates the running and displays the functions by the digital keypad.
There are four LEDs on the keypad
 STOP: Lights when the drive stops.
 RUN: Lights when the motor is running.
 FWD: Lights when the motor is running forward.
 REV: Lights when the motor is running reverse.
