Chapter 1 IntroductionVFD-EL-W
11

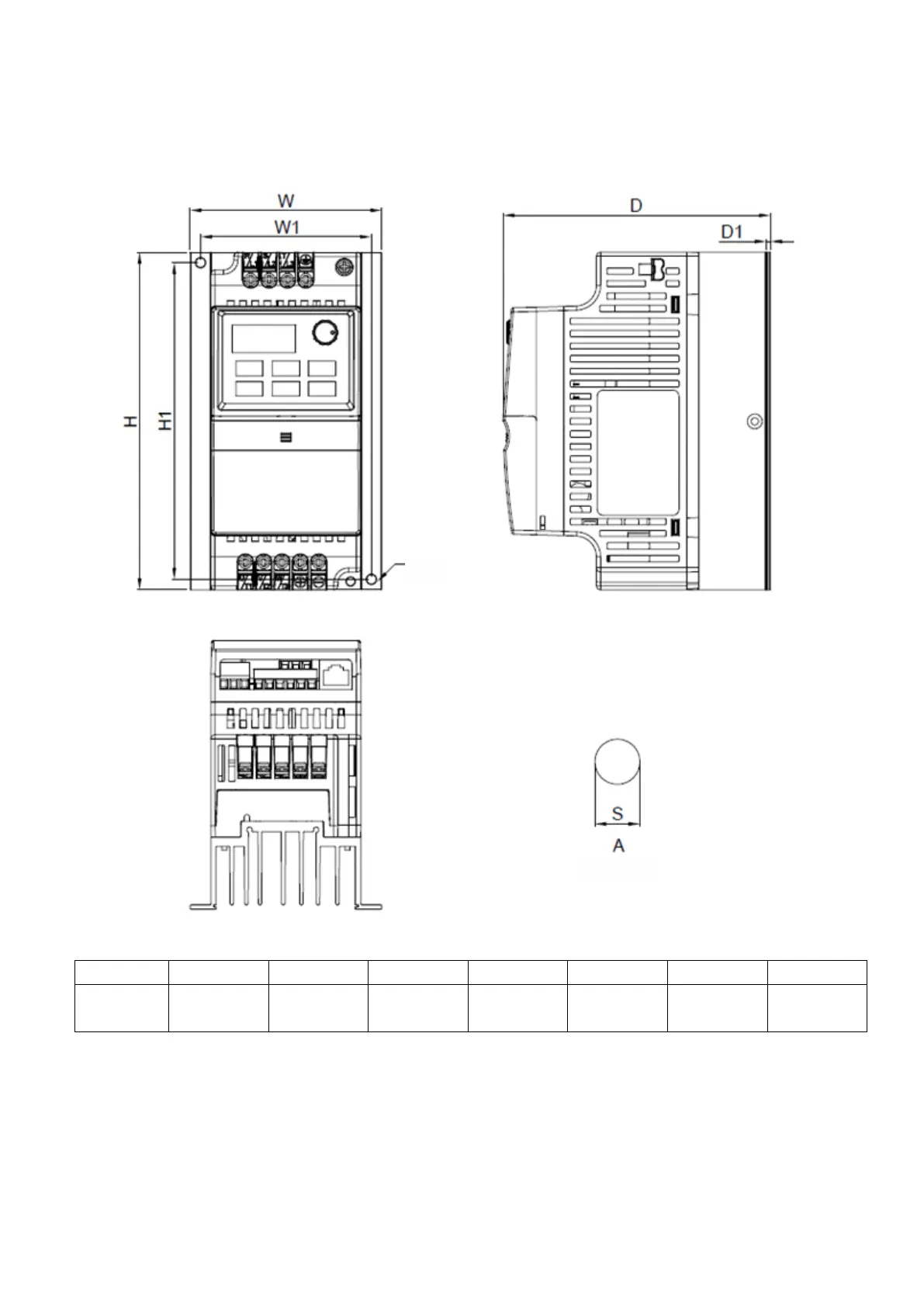

1-3 Dimensions
Frame A1
VFD002EL21W(-1), VFD004EL21W(-1), VFD004EL43W(-1), VFD007EL21W(-1), VFD007EL43W(-1)
See A
(mounting hole)
Unit: mm (inch)
Frame
W
W1
H
H1
D
D1
S1
A1
92.0
(3.62)
82.0
(3.23)
162.0
(6.38)
152
(5.98)
128.7
(5.07)
5.4
(0.21)
5.4
(0.21)
