Delta VFD-EL-W Series User Manual

Chapter 4 Parameters｜VFD-EL-W
90
03.11
Mechanical Brake Release Frequency
Default: 0.00
Settings
0.00–20.00 Hz
03.12
Mechanical Brake Active Frequency
Default: 0.00
Settings
0.00–20.00 Hz

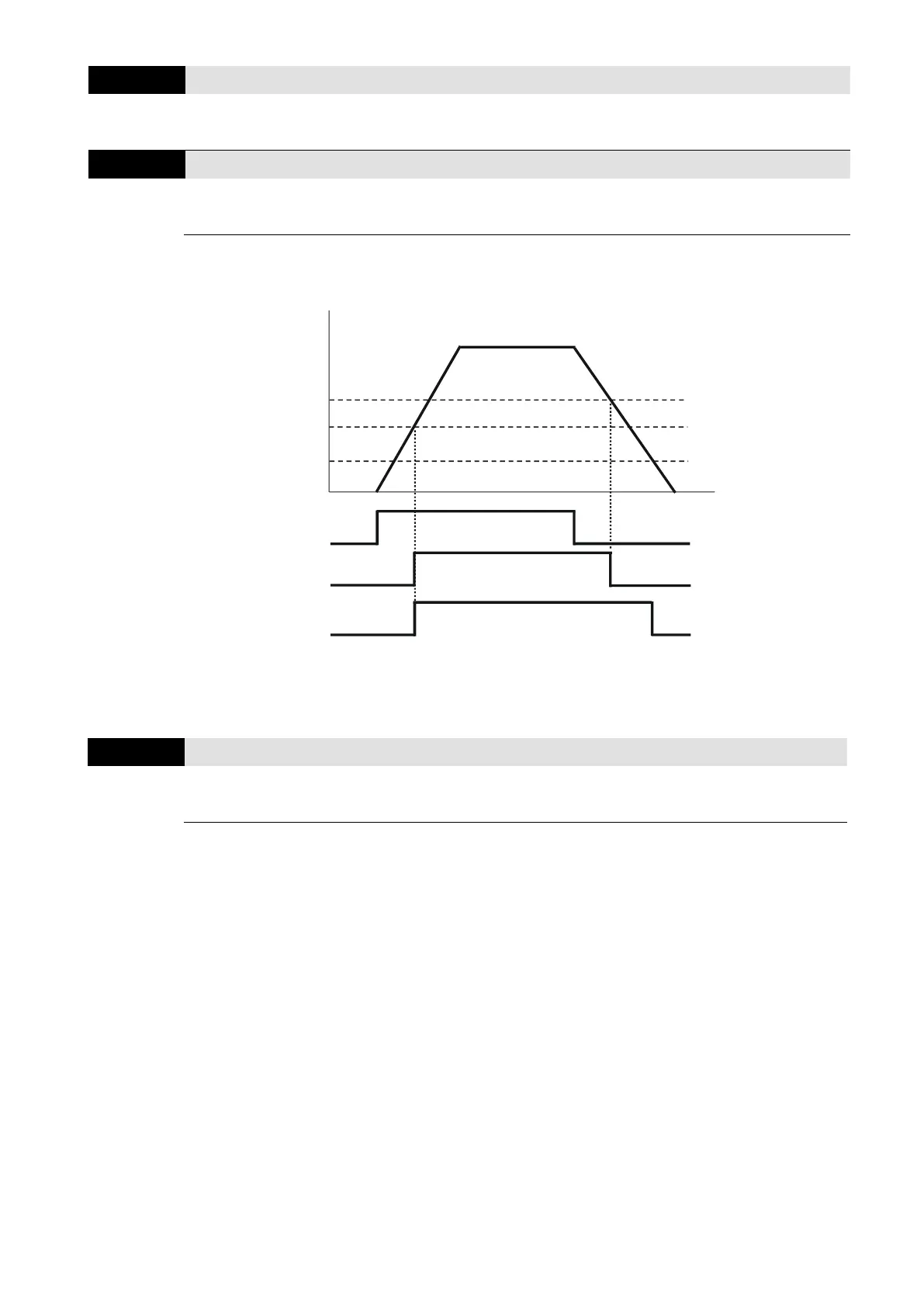

 Set the closing (ON) and breaking frequency of the output terminal (Relay) corresponding to the
control parameter 03.00 multi-function output terminal 21: Mechanical brake control.
Case 1: Pr.03.12
Case 2: Pr.03.12
Pr. 03.11
Frequency
Output
Time
Run/Stop
Case 1: Pr.03.00=21
Case 2: Pr.03.00=21
 Pr.03.00 multi-function output terminal 21: Mechanical brake control: When the output frequency
reaches Pr.03.11 (Mechanical brake release frequency), this terminal is closed (ON); when the
output frequency reaches Pr.03.12 (Mechanical brake active frequency), this terminal is OFF.
03.13
Display the Status of Multi-function Output Terminal
Default: Read only
Settings
Read only
 The multi-function output terminal is falling-edge triggered, Pr.03.13 displays 1 when the relay is
OFF.
