7-8 Conduit Box Kit
 Appearance
Conduit box kit is optional for VFDXXXCXXA-00 (Frame D and above) and VFDXXXC43S-00, the
protection will be IP20 / NEMA1 / UL TYPE1 after installation.
Frame D0
Applicable models: VFD370C43S-00; VFD450SC43S-00
Model『MKC-D0N1CB』
ITEM Description Qty.
1 Screw M5*0.8*10L 4
2 Bushing Rubber 28 2
3 Bushing Rubber 44 2
4 Bushing Rubber 73 2
5 Conduit box cover 1
6 Conduit box base 1

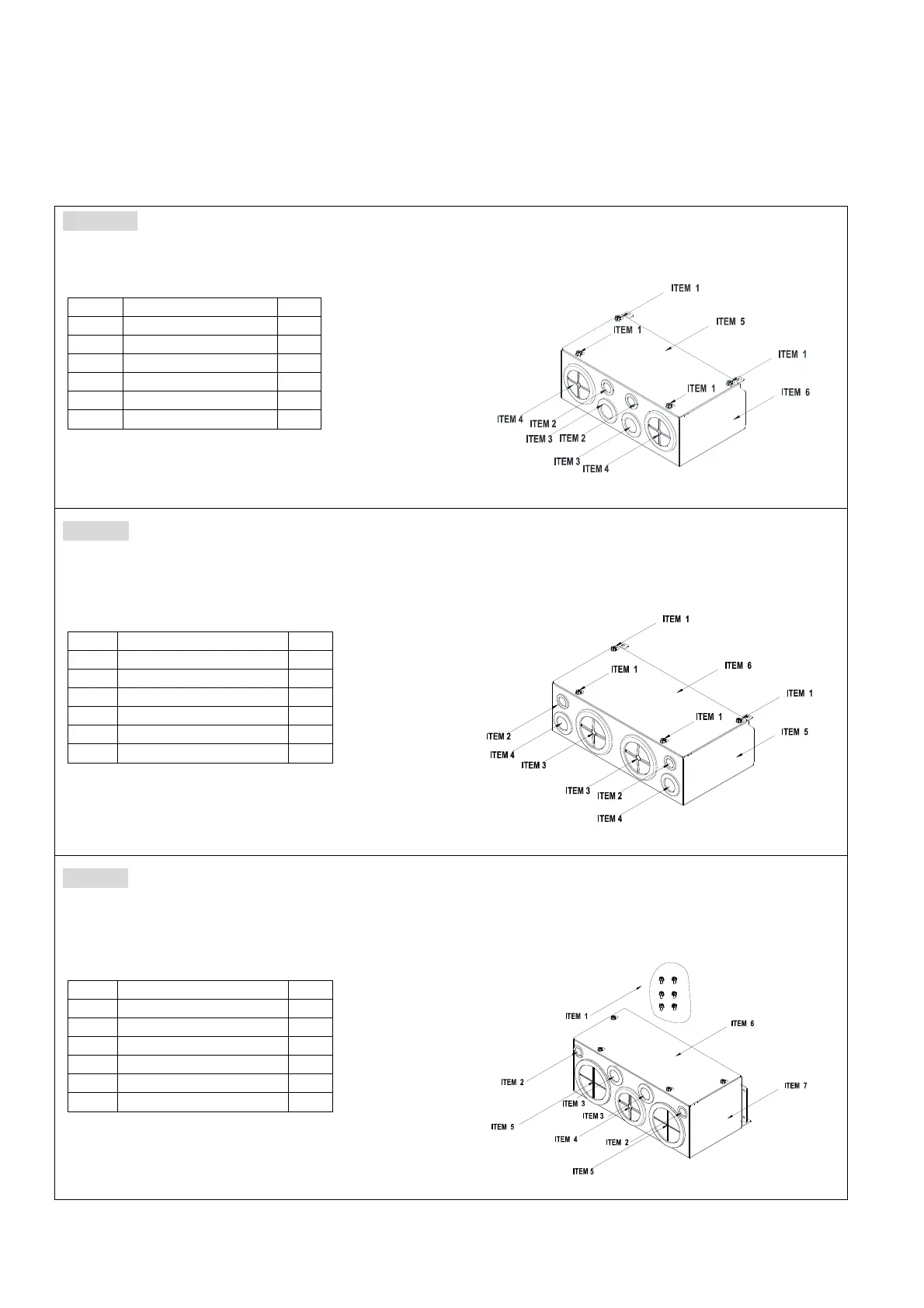

Figure 7-87
Frame D
Applicable models: VFD300C23A-00; VFD370C23A-00; VFD550C43A-00; VFD750C43A-00;
VFD450C63B-00; VFD550C63B-00
Model『MKC-DN1CB』
ITEM Description Qty.
1 Screw M5*0.8*10L 4
2 Bushing Rubber 28 2
3 Bushing Rubber 44 2
4 Bushing Rubber 88 2
5 Conduit box cover 1
6 Conduit box base 1
Figure 7-88
Frame E
Applicable models: VFD450C23A-00; VFD550C23A-00; VFD750C23A-00; VFD900C43A-00;
VFD1100C43A-00; VFD750C63B-00; VFD900C63B-00; VFD1100C63B-00; VFD1320C63B-00
Model『MKC-EN1CB』
ITEM Description Qty.
1 Screw M5*0.8*10L 6
2 Bushing Rubber 28 2
3 Bushing Rubber 44 4
4 Bushing Rubber 100 2
5 Conduit box cover 1
6 Conduit box base 1
Figure 7-89
Table 7-87
Table 7-88
Table 7-89
