Delta VFD450C43S-00 - Flange Mounting Kit

Chapter 7 Optional AccessoriesC2000 Plus
7-132

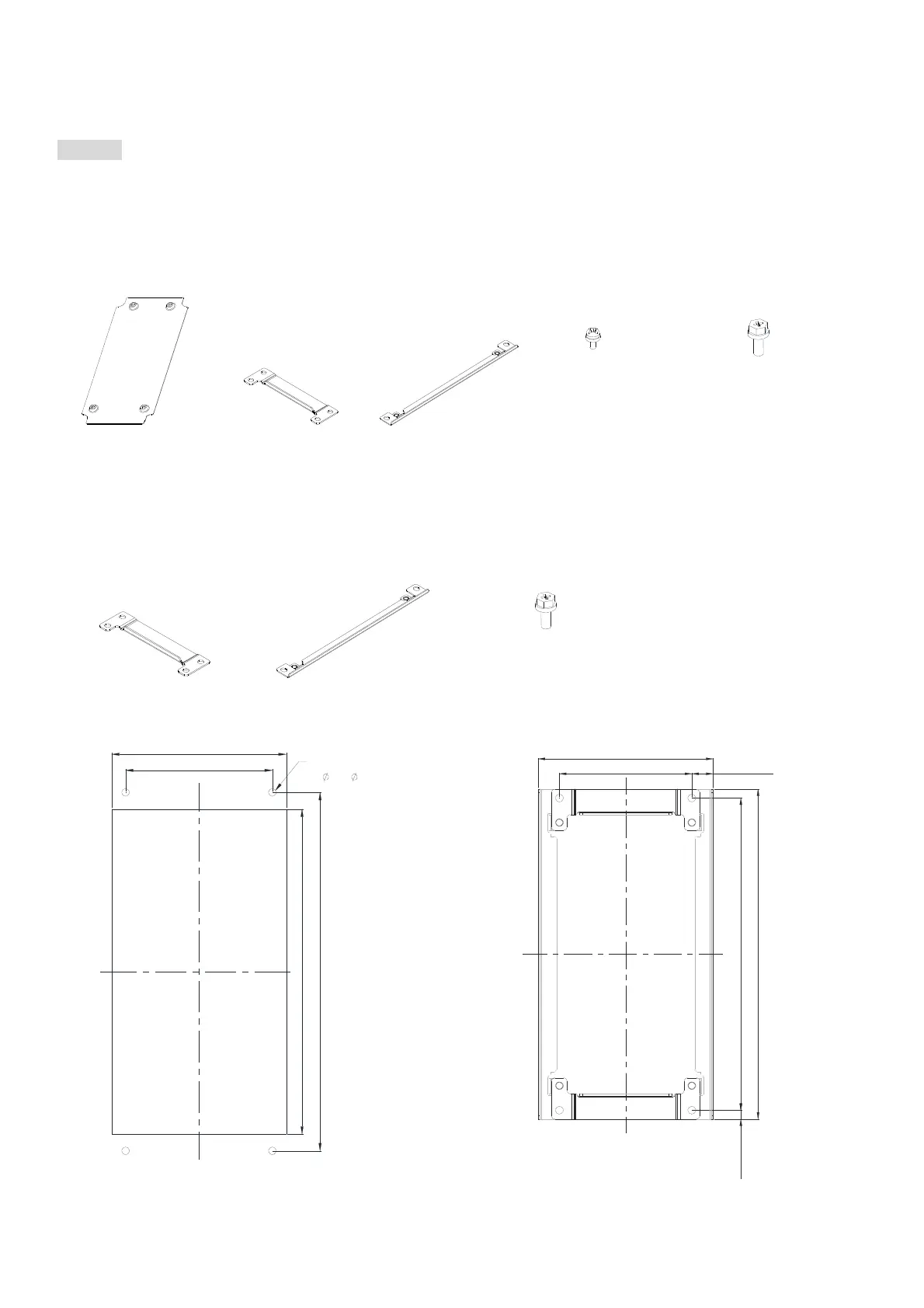

7-10 Flange Mounting Kit
Applicable Models, Frame A–F
Frame A
MKC-AFM1
Applicable models
VFD015C23A-21; VFD015C53A-21; VFD022C23A-21; VFD022C43A-21; VFD022C4EA-21;
VFD022C53A-21; VFD037C53A-21
Accessory 1*1 Accessory 2*2 Accessory 3*2
Screw 1*4
M3*P 0.5
L= 6 mm
Screw 2*8
M6*P 1.0
L=16 mm
MKC-AFM
Applicable models
VFD007C23A-21; VFD007C43A-21; VFD007C4EA-21; VFD015C43A-21; VFD015C4EA-21;
VFD037C23A-21; VFD037C43A-21; VFD037C4EA-21; VFD040C43A-21; VFD040C4EA-21;
VFD055C43A-21; VFD055C4EA-21
Accessory 2*2 Accessory 3*2
Screw 1*8
M6*P 1.0
L= 16 mm
Hole sites and dimension Unit: mm (inch)
138.0 [5.43]
M6*P1.0(4X)
or
6.5[ 0.26](4X)
116.0 [4.57]
280.0 [11.02] 254.0 [10.00]
Figure 7-195
296.0 [11.65]
116.0 [4.57] 18.6 [0.73]
153.2 [6.03]
8.0 [0.31] 280.0 [11.02]
Figure 7-196
