Chapter 8 Option CardsC2000 Plus
8-39
8-13 CMC-PD01 -- Communication card, PROFIBUS DP
8-13-1 Features
1. Supports PZD control data exchange.
2. Supports PKW access AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports a Max. 12 Mbps.

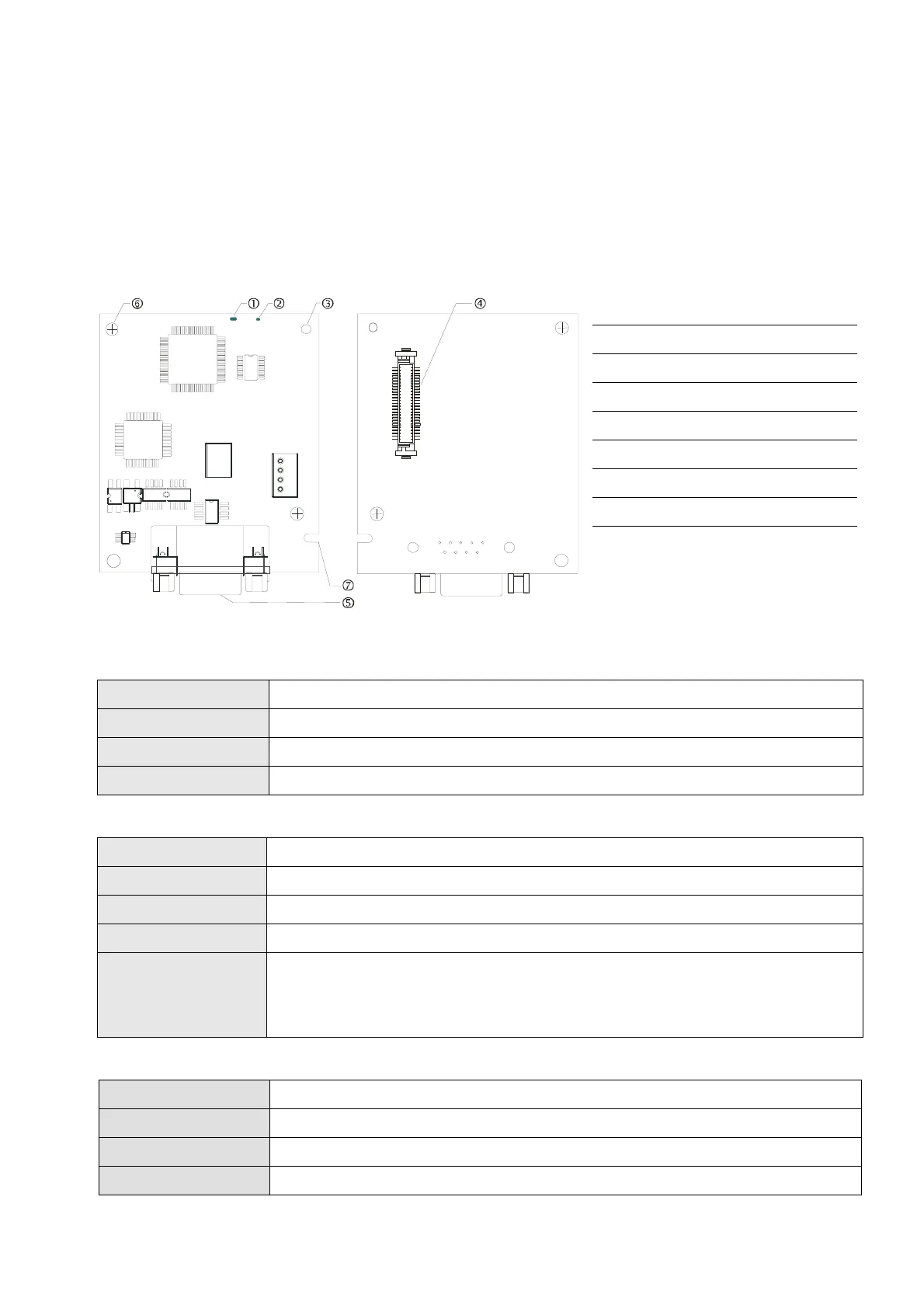

8-13-2 Product Profile
1. NET indicator
2. POWER indicator
3. Positioning hole
4. AC motor drive connection port
5. PROFIBUS DP connection port
6. Screw fixing hole
7. Fool-proof groove
8-13-3 Specifications
PROFIBUS DP Connector
Interface DB9 connector
Transmission method High-speed RS-485
Transmission cable Shielded twisted pair cable
Electrical isolation 500 V
DC
Communication
Message type Cyclic data exchange
Module name CMC-PD01
GSD document DELA08DB.GSD
Company ID 08DB (HEX)
Serial transmission
speed supported
(auto-detection)
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 500 Kbps; 1.5 Mbps; 3 Mbps; 6 Mbps;
12 Mbps (bit per second)
Electrical Specification
Power supply voltage 5 V
DC
(supplied by the AC motor drive)
Insulation voltage
500 V
DC
Power consumption 1 W
Weight 28 g
