Chapter 8 Option CardsC2000 Plus
8-36

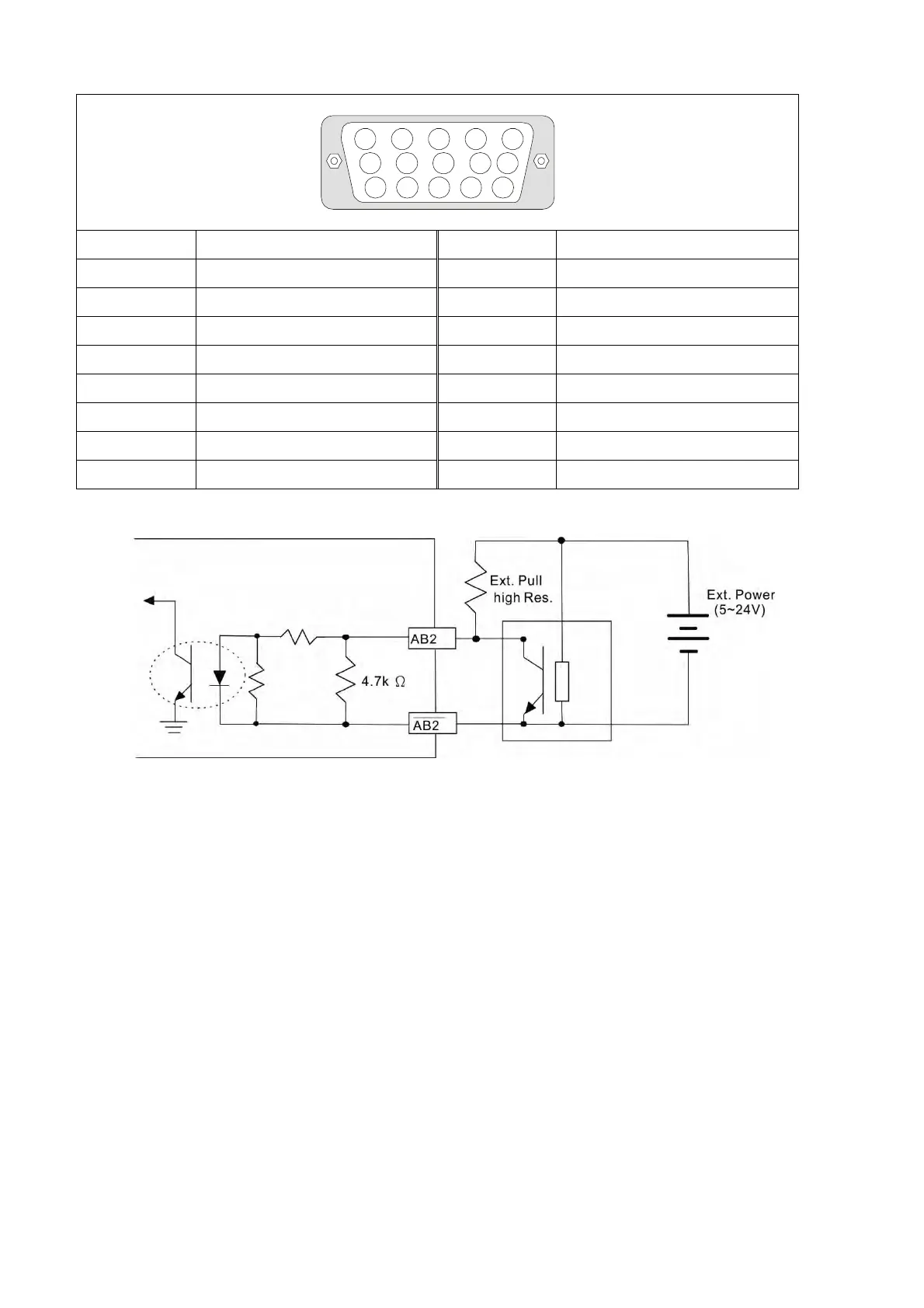

PG1 Terminal Descriptions (15pin D-SUB female connector)
5
4
3
2
1
10 9 8 7
6
15
14
13 12
11
No. Terminal No. Terminal
1 Reserved 9 VP
2 NC 10 NC
3 Data+ 11 NC
4 Data- 12 NC
5 Reserved 13 NC
6 Reserved 14 Reserved
7 DCM 15 Reserved
8 Reserved
PG2 Wiring Diagram
