109

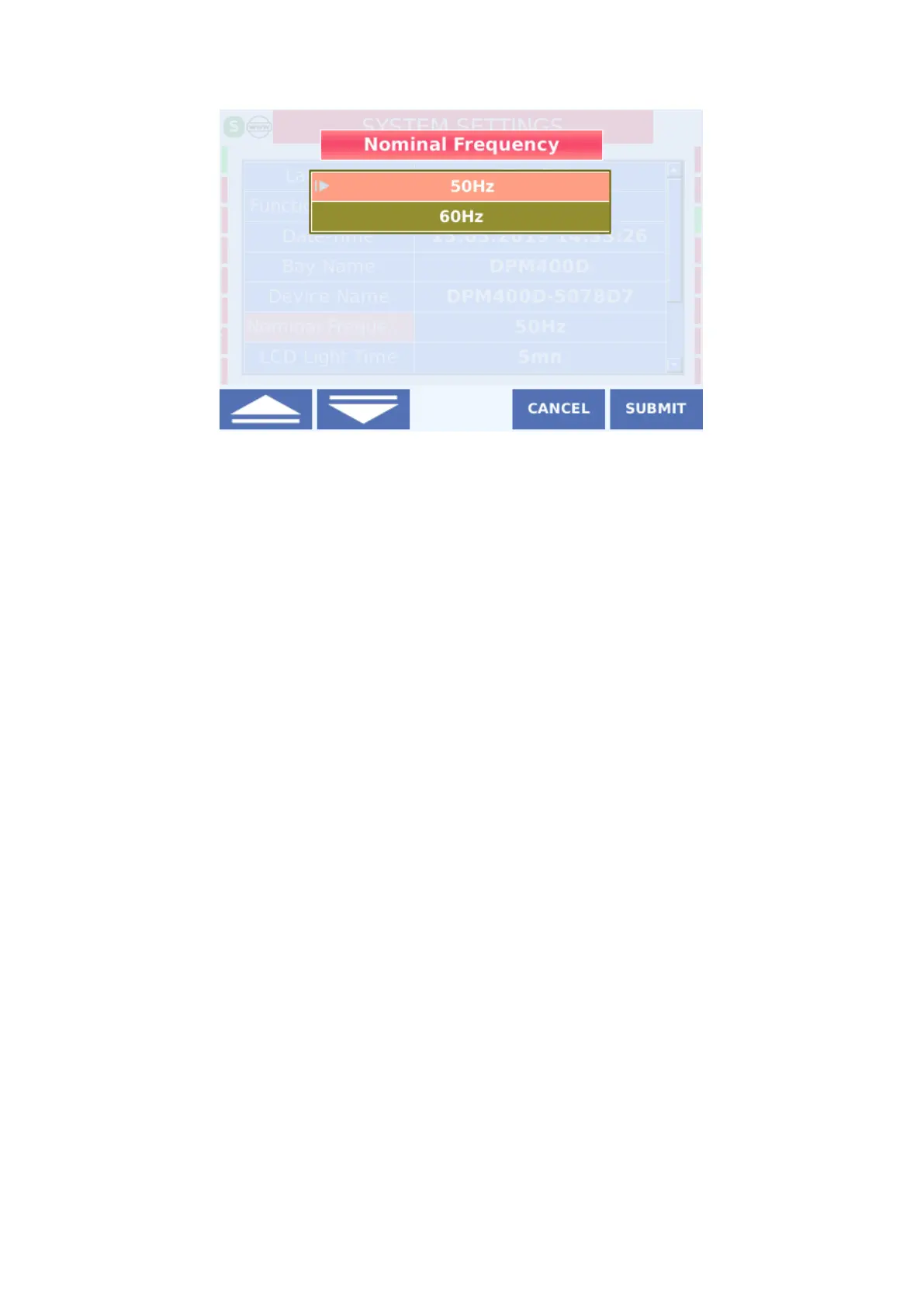

Nominal Frequency Setting Display
4.5.7 LCD Lighting Time
It is the screen in which the LCD display remains on in standby mode. The LCD lighting time
settings are listed under Main Menu> System Settings> LCD Lighting Time on the device
and are made in (0 - 60) minutes. When the assigned value 0 is selected, the light will remain
on.
4.5.8 Default Screen
It is the setting screen for which a specific time (Default Screen Rotation Time) is set on the
device. These choices are made from the following headings.
• Main monitor
• Breaker Command
• RMS Flows
• I0 - I1 - I2
• Phase - Phase Voltages
• Phase - Neutral Voltages
• V0 - V1 - V2
4.5.9 Default Screen Timeout
If value 0 is selected, this setting will turn off. The default display return settings are listed
under "Main Menu> System Settings> Return to Default Screen" on the device.
