Main Menu
This section introduces the Main menu of DPM 400 Protection Relay. Main menu is the
interface where the protection settings on the device, general device settings, basic component
measurements and breaker positions are observed.
When the physical connections of the device are completed and energized, home screen is
seen in the figure
This document has been prepared in accordance with the SW_1.1.15.2 software version.

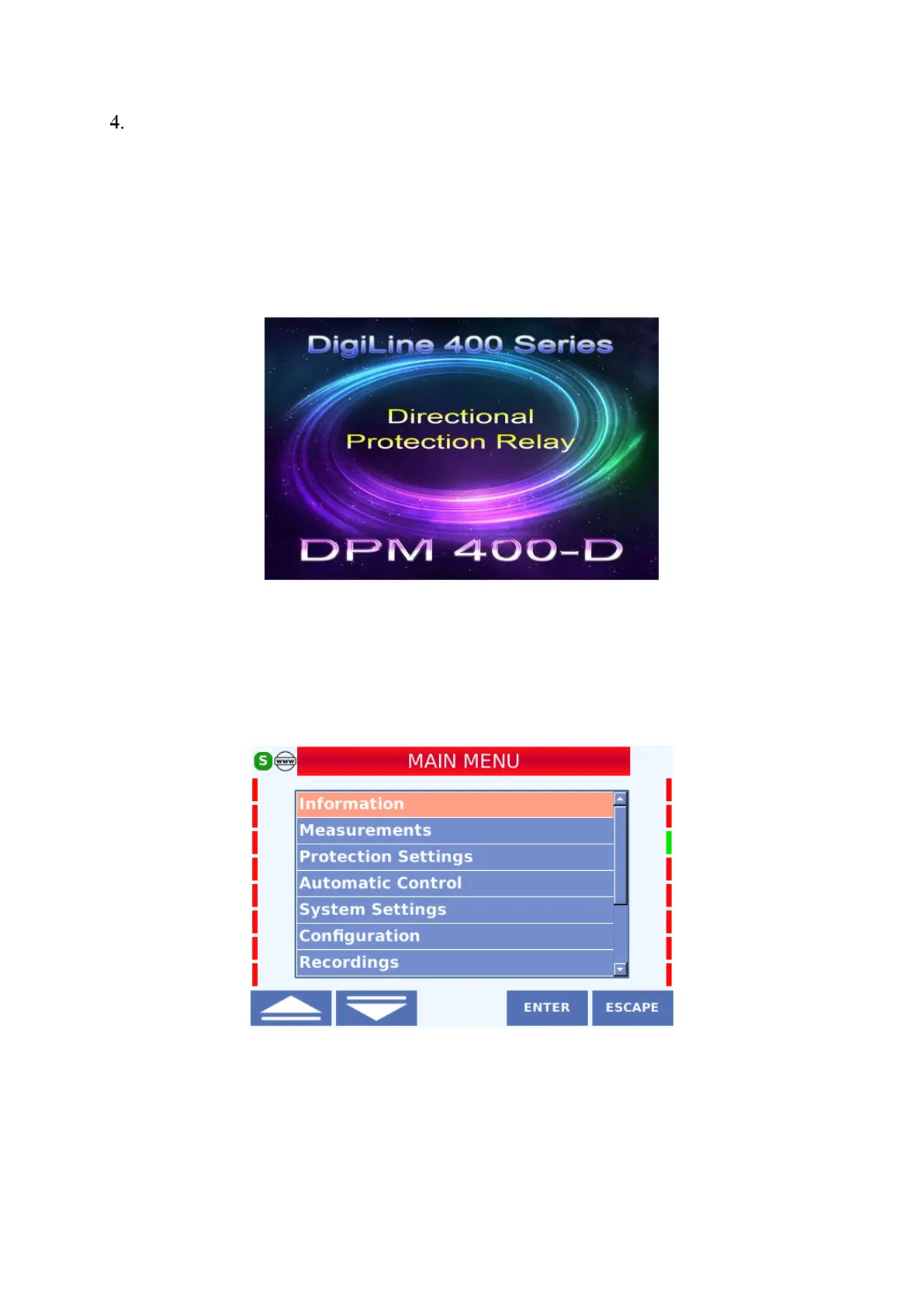

DPM 400-D Home Screen
When the device initialization process is completed, the main screen of the device is opened.
When you click the menu button, main menu appears on the screen. The screenshots of the
main menu are as follows:
Main Menu
In the Device Status Notification on the main menu screen;
The letter S (Stable) indicates that no setting changes have been made on the device and that it
is working steadily.
