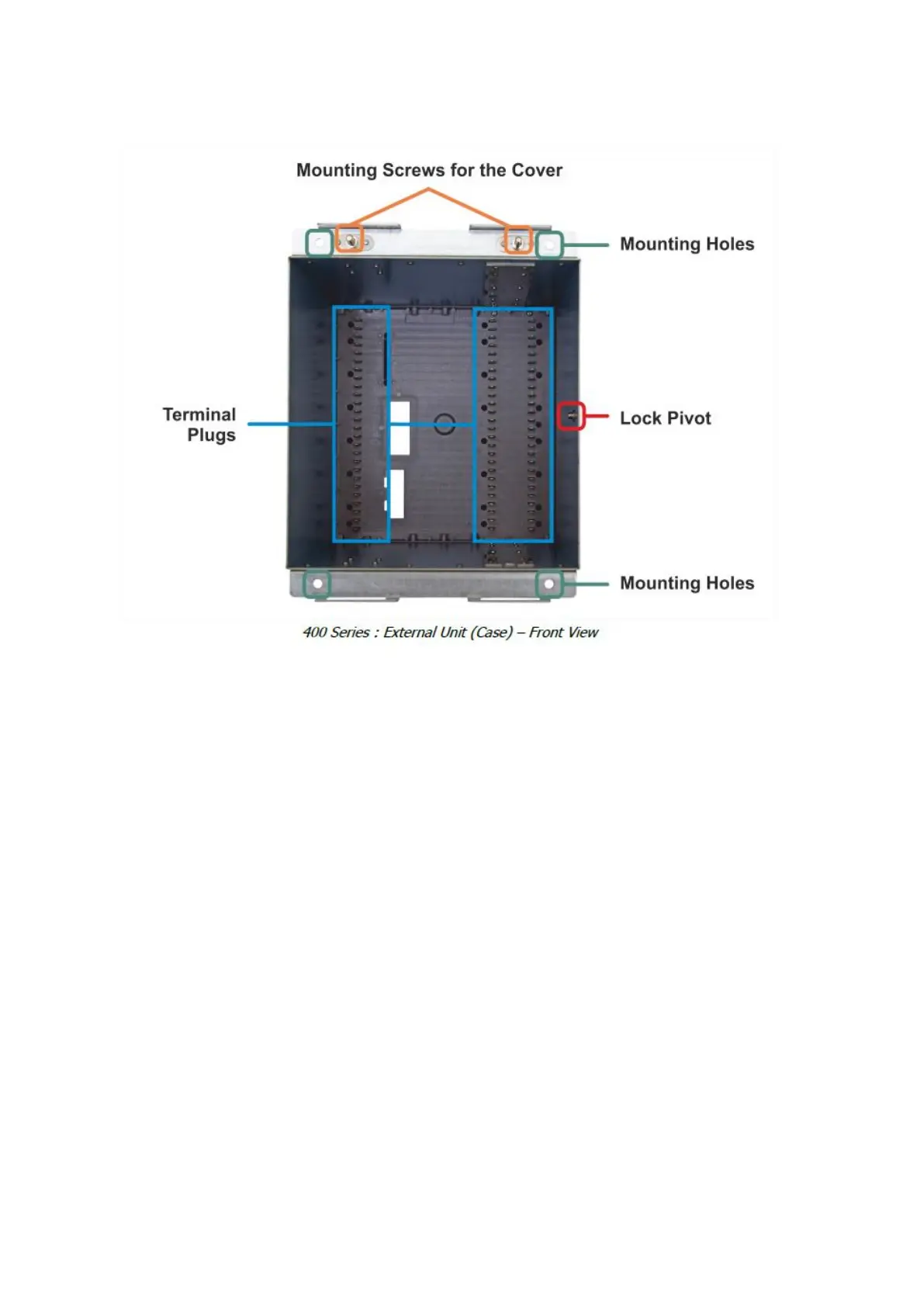

3.30 Mounting Screws for the Cover
The cover is mounted onto the case via these screws. Screws are permanently fixed on the
case.
3.31 Terminal Plugs
Plugs make the electrical connection by locking to the sockets when the internal unit is drawn
into the case.
3.32 Lock Pivot
Internal unit locking mechanism locks to this pivot, providing mechanical and contacting
stability.
3.33 Mounting Holes
The relay case is mounted on the panel or rack from these mounting holes. Connection
elements necessary for mounting the case is supplied within the product box.
