DEMA 400 Series User Manual

37
Phase-Neutral Voltages

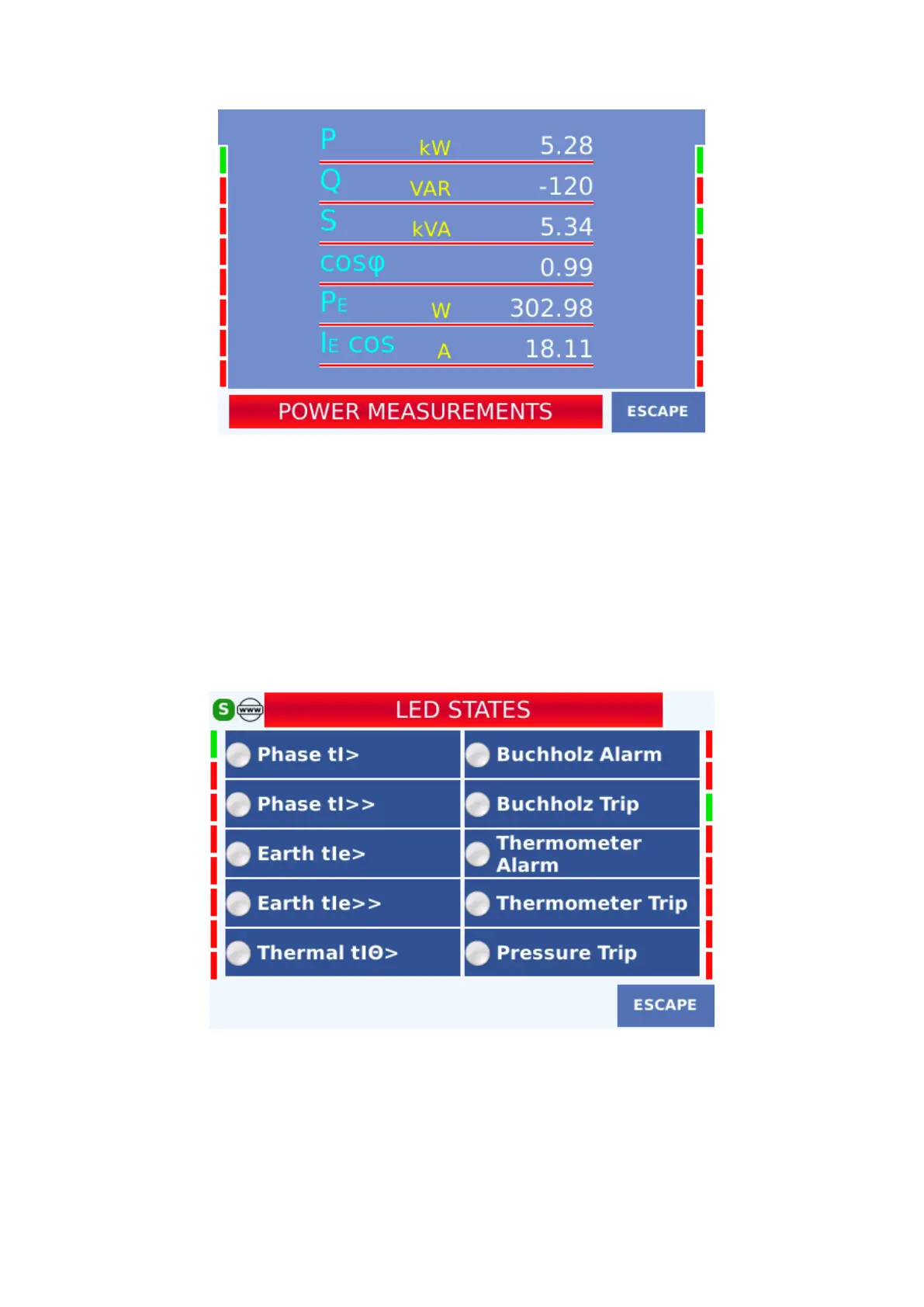

4.2.12 LED States
The status of the 10 programmable LEDs in the relay can be viewed from the following
screen of the device. LED states also appear embedded on the Home page. The names of
these LEDs can be changed under the configuration menu. (Main Menu> Configuration> Led
Settings / Writings)
LED States Display
4.2.13 Current Breaker Monitoring
The values on circuit monitoring display are the values for the breaker. The values in the
circiut breaker measurements screen are the values recorded for the Breaker operation. In
order to active these measurements, it is necessary to active the Breaker.
