46
t Trip time delay (minute).
Te Thermal Constant (minute); setting range: (1-200) min, in 1 min steps.
k Trip Threshold Translation Constant (-); setting range: (1.00-1.50), in 0.01 steps.
I RMS value of load current (A).
-3.20) In, in 0.01 In steps.
-heating (%); setting range: (50-200) %, in 1% steps.
-200) %, in 1% steps.

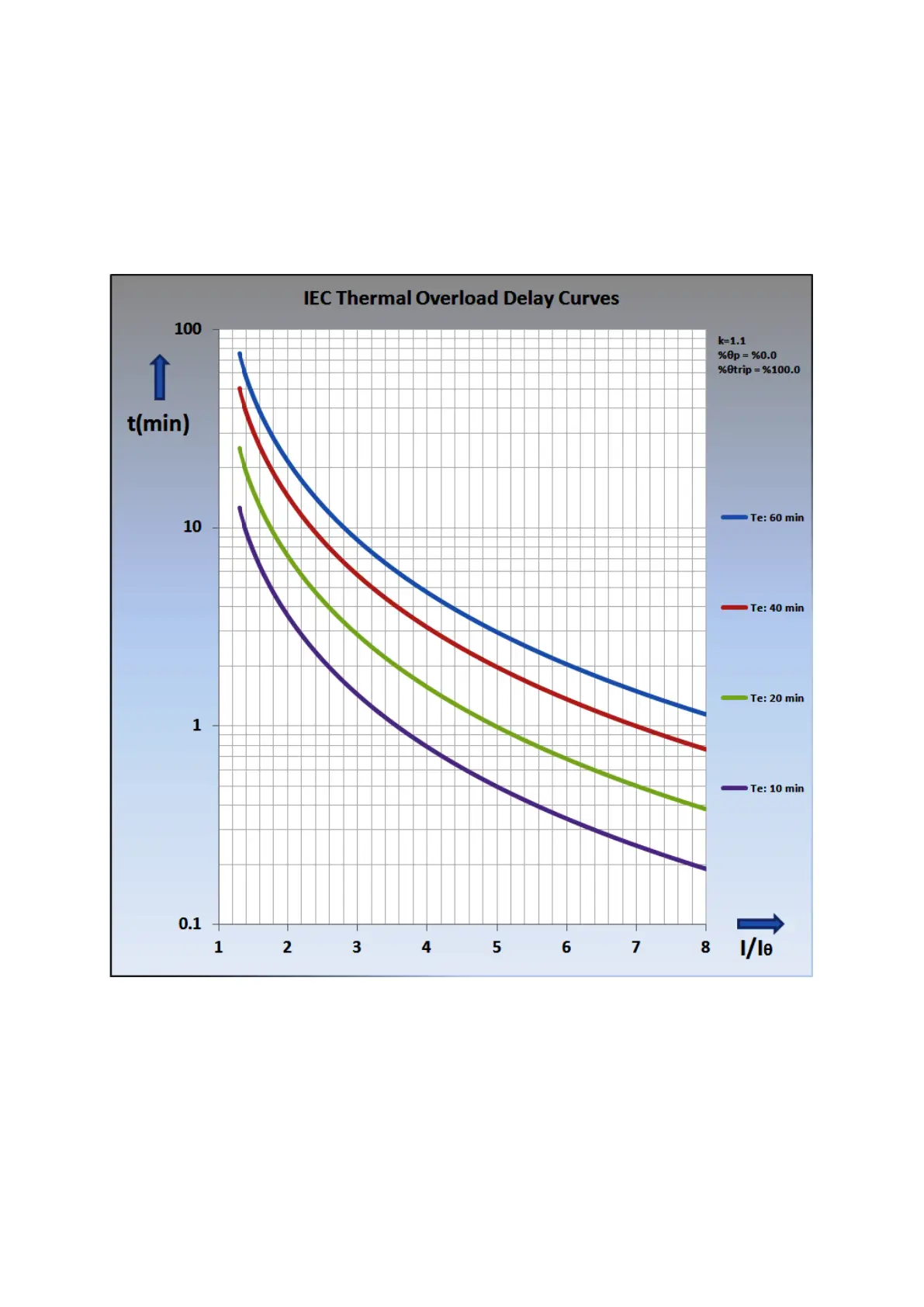

Thermal Overload Delay Curves
