DEMA DPM 400 D - Analog Ma Input

40

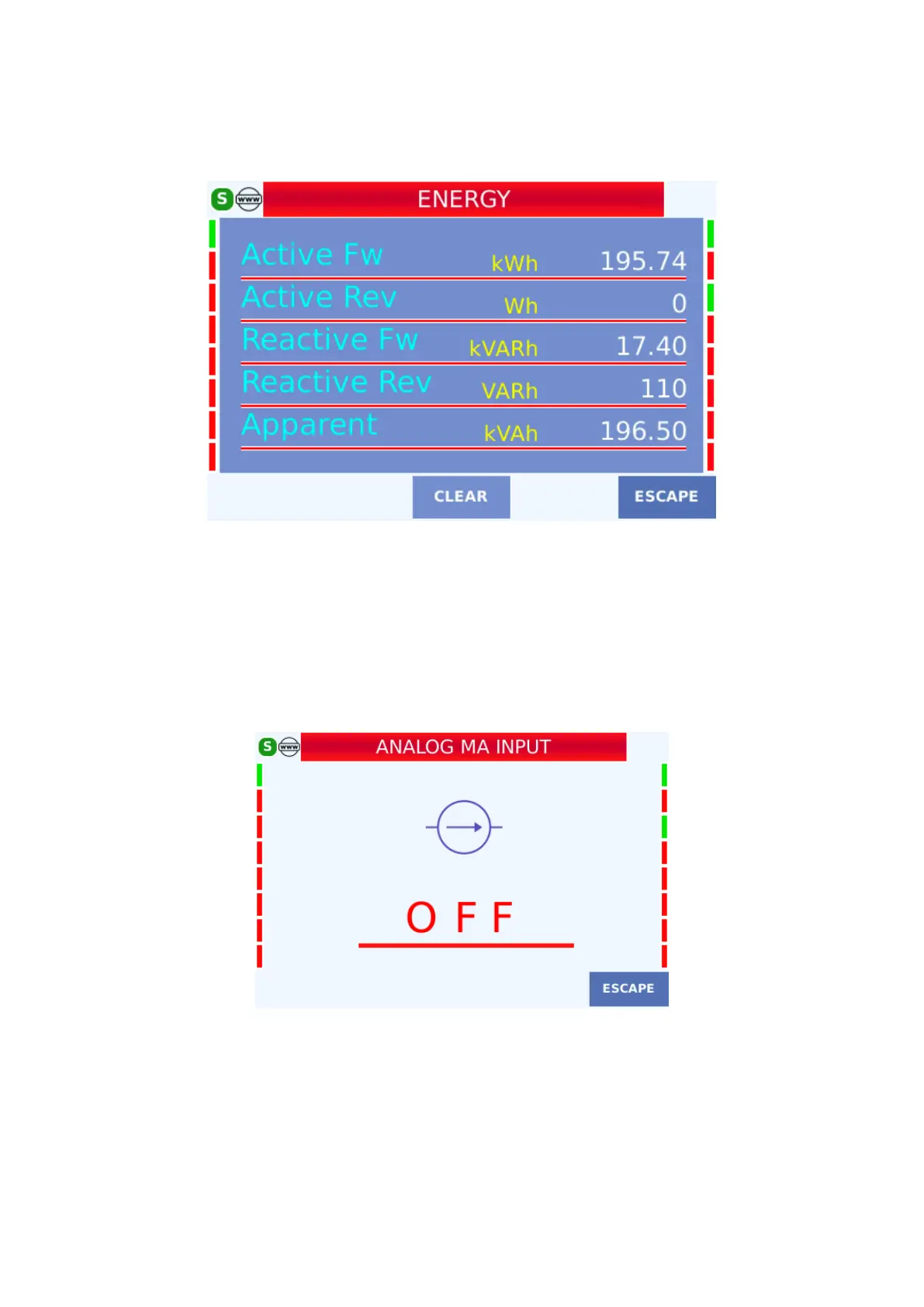

The display of energy measurements is as follows.
Energy Metrics Screen
4.2.17 Analog mA Input
It is the input in which the Analog 4-20 mA signal is connected to the terminals 48 and 49 of
the terminal block X03 of the device.
The display of the analog mA input is as follows.
Analog mA Input Display
4.3 Protection Settings
The Protection Settings are gathered under the following five headings from the basic
functions of the device.
