The D1000
Installation and
Service
Version 2.1
1 9
Programmable Logic Controller (PLC)

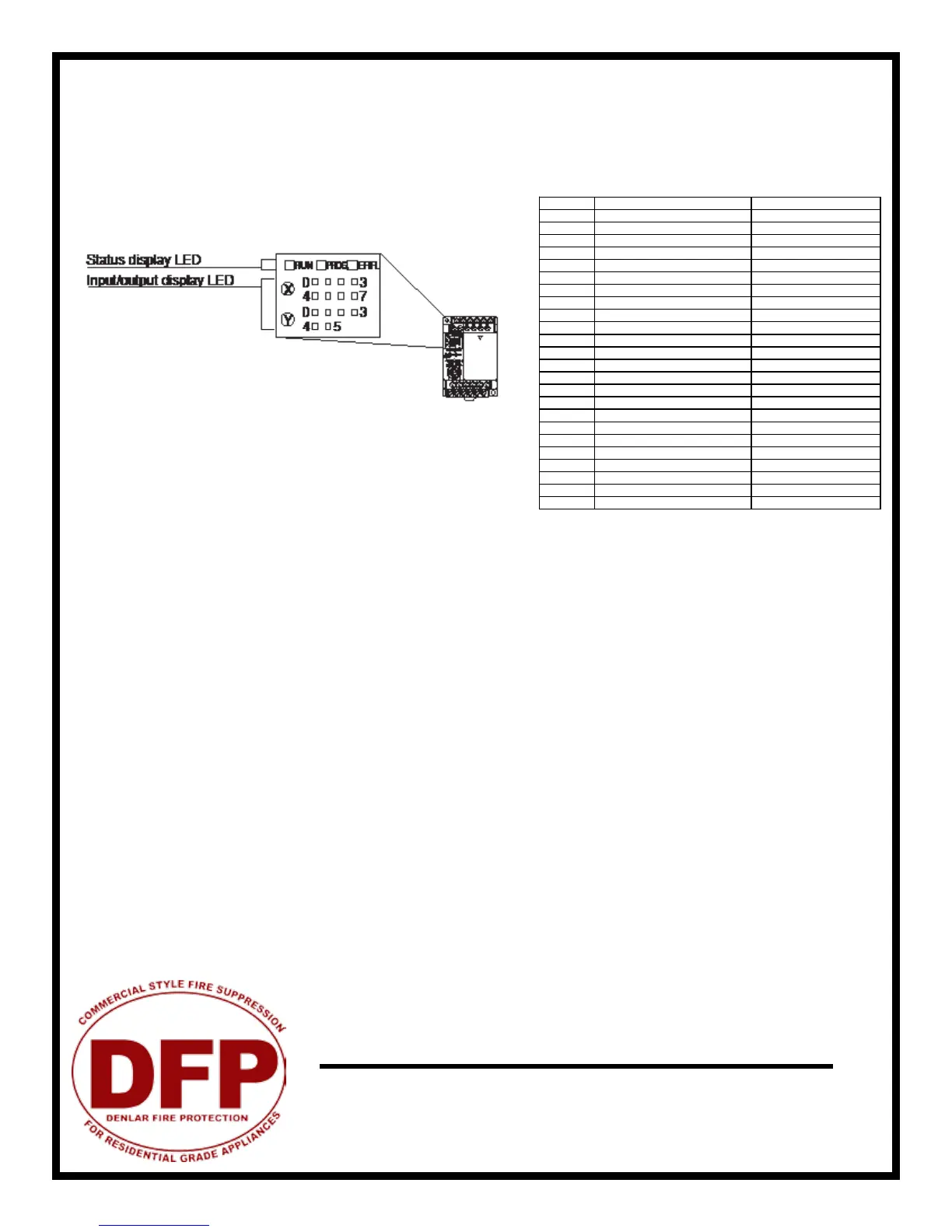

LED Indications
The PLC operating system is designed to enhance the functionality of the unit and the safety of the cooking
environment.
The system relies on input from a set of thermostats to control the fan and shuto power to the stove when the
temperature reaches preset points.
As the temperature rises, the PLC monitors the environment with the 3 thermostats. The board is programmed
to respond to 2 temperature thresholds: the rst at 150 deg F and the second at 190 deg F.
At the rst temperature threshold the ventilation fan will turn on, REGARDLESS OF THE FRONT PANEL SWITCH
SETTING.
At the second temperature threshold, several events happen:
1) The power disconnect to the stove (valve or contactor) is de-energized, shutting o power to the stove;
2) The “local” alarm output is tripped, indicating a trouble condition with the unit. This output is from
contacts C0 and Y0 on the PLC.
3) The on-board audible alarm sounds (high pitched tone).
DESCRIPTION VALUE
CB CLOCK BOX 2 HR
F1 PLC FUSE 1 AMP FAST BLOW
F2 FAN FUSE 2 AMP SLOW BLOW
F3 DUAL DISCONNECT 1 AMP SLOW BLOW
F3 DISCONNECT FUSE 0.5 AMP SLOW BLOW
F4 MAIN FUSE 8 AMP SLOW BLOW
F5 CLOCK BOX FUSE 8 AMP SLOW BLOW
MP1 MAIN POWER CONNECTOR
FP2 FAN CONNECTOR
SW1 MAIN POWER SWITCH
SW2 LIGHT SWITCH
SW3 SERVICE SWITCH
SW4 RESET SWITCH
SW5 OPTIONAL ADA LIGHT
SW6 OPTIONAL ADA FAN
HSW1 HOSE SWITCH
HITH1 HIGH TEMP THERMOSTAT 190°
LOTH1,2 LOW TEMP THERMOSTAT 150°
FSP1 FAN SPEED CONTROLLER 4.0 FLA
FAN INLINE OR RECIRC FAN
CAP1 FOR RECIRC FAN 10 UF
M1 STOVE DISCONNECT 40 FLA 50 A RES
LIGHT HOOD LIGHT 60 WATT
PLC COMPUTER DRIVING HOOD
HORN ALARM IN HOOD 90DB
D1000 Operating System - PLC Drive Functions
Environmental Monitoring / Pre-Suppression Functions
110 - 120 VAC
