Denlar D1000 - Installing The D1000

The D1000
Installation and
Service
Version 2.1
1 0

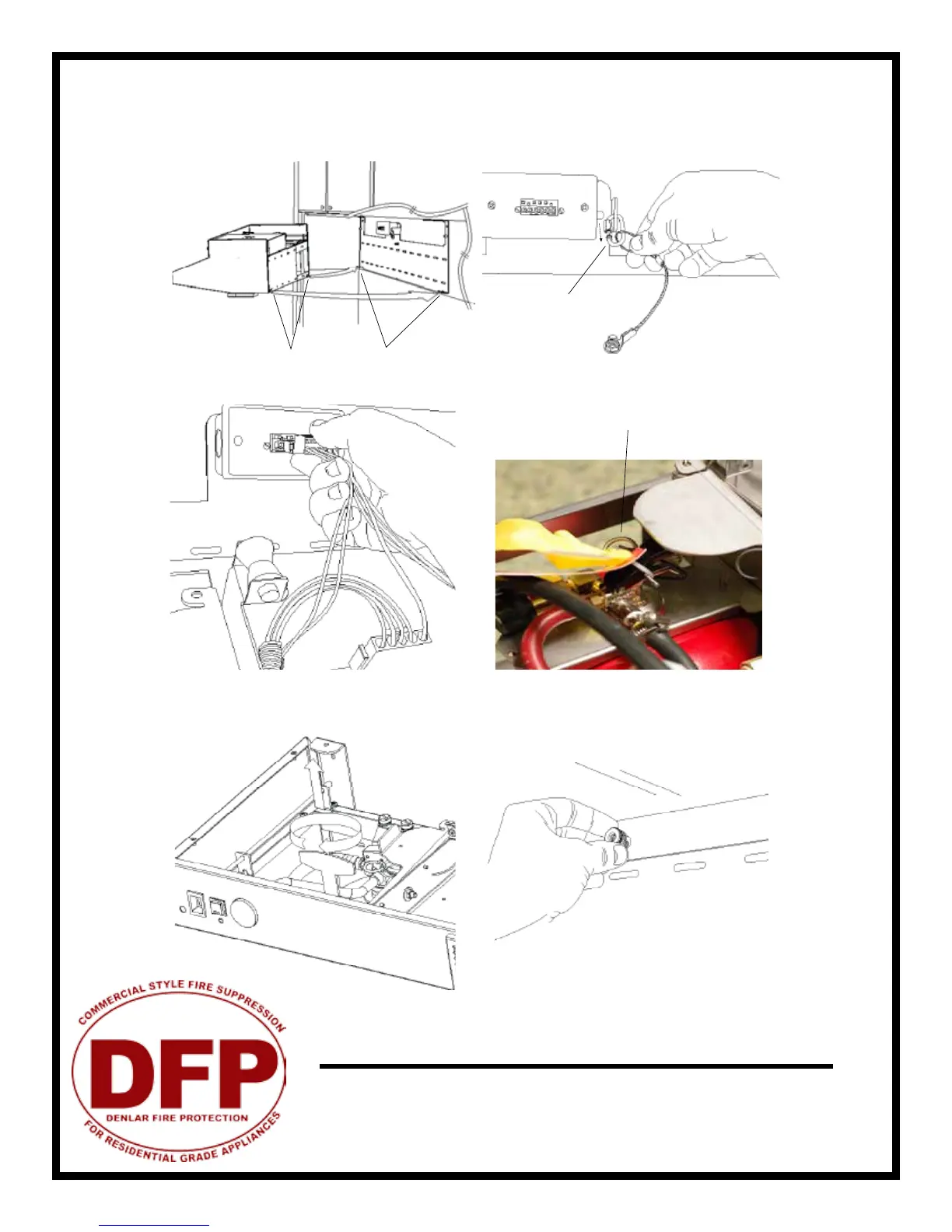

1. Lift unit to mounting bracket and seat lower tabs into
slots in back of hood.
2. While holding the unit up, hook cable to chain link on
mounting bracket and screw nut to close the link. The
hood is now in the service position.
3. Connect power to junction box.
4. Remove the safety pin -identied with the yellow
ag “
caution”- from the trigger on top of the extin-
guisher bottle.
Slots
Lower Tabs
Chain Link
Safety Pin
5. Remove the safety key from the actuator arm by rotat-
ing and lifting straight upwards. Note that the system will
not actuate without completing steps 4 and 5.
6. Lift unit to wall and thread the three thumb nuts to the
bolts in the back support mounting plate. Check page 16
for location of thumb nuts.
Installing The D1000
