The D1000
Installation and
Service
Version 2.1
If installing under cabinets, keeping
the fan box ush to the underside will
guarantee correct spacing. Otherwise,
center and mark the installation area
according to wall bracket prior to
hanging.

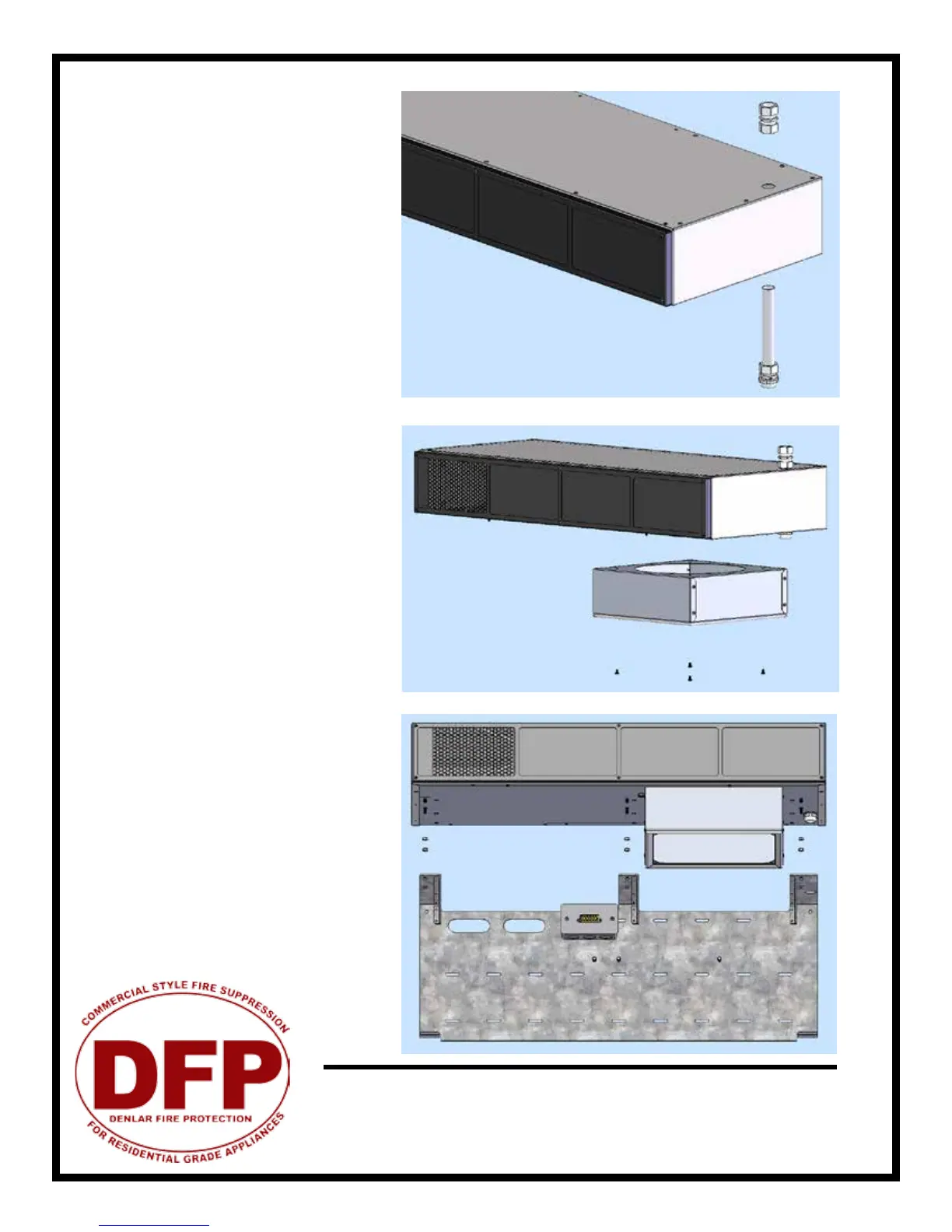

1. insert/attach the top portion of the
mpk conduit through the fan box
2. attach square duct collar to the
bottom of the fan box with included
hardware
3. attach the fan box to the mounting
bracket with included 8/32 nuts, then
complete the installation on the MPK
conduit and top/bottom unions
The fan bow is 4.535” tall. If prep-
ping a space for install, this much
space must be left between the top of
the mounting bracket and the bottom
of the cabinet.
The additional height of the unit
should not result in reduced range
clearance. Cabinets should be in-
stalled approximately 5” higher to
accomidate the additional size of the
NFPA101 fan box assembly.
