Denon AVR-1707 Service Manual

8
AVR-1707/1507/687/587/487
(c) PR/CR 信号レベル
調整個所 ： C-SVIDEO1VR603
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : C-S VIDEO 1 VR603
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model

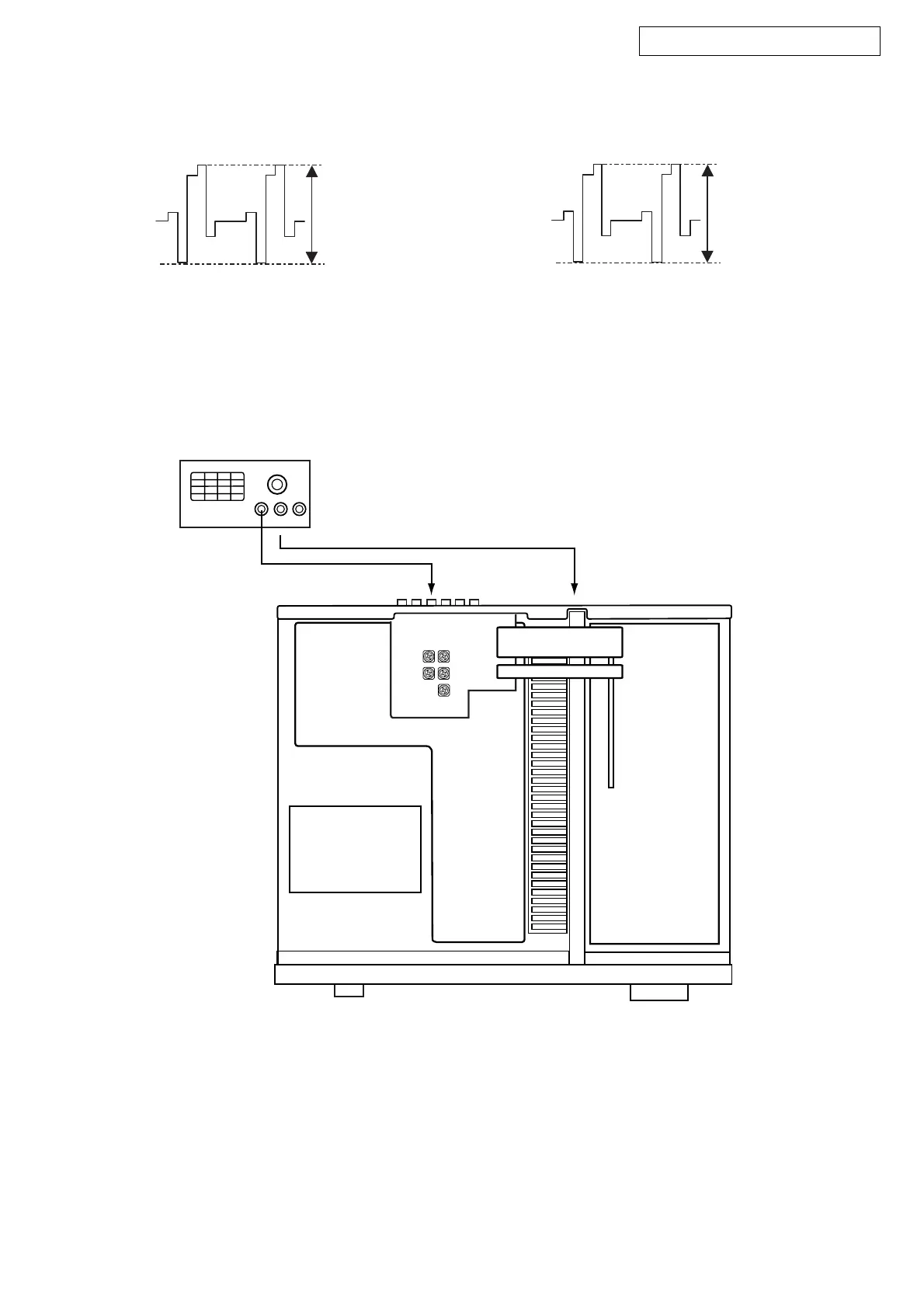

C-S VIDEO 1 UNIT
PR/CR-signal COMPONENT OUT
PR/CR
Oscilloscope
COMPONENT VIDEO
MONITOR OUT
(Y,P
B /C B ,P R /C R )
S-VIDEO
MONITOR OUT
(Y,C)
Video Section
VR603
VR604
VR605
VR602
VR601
Pb
Pr
Py
Y
C
