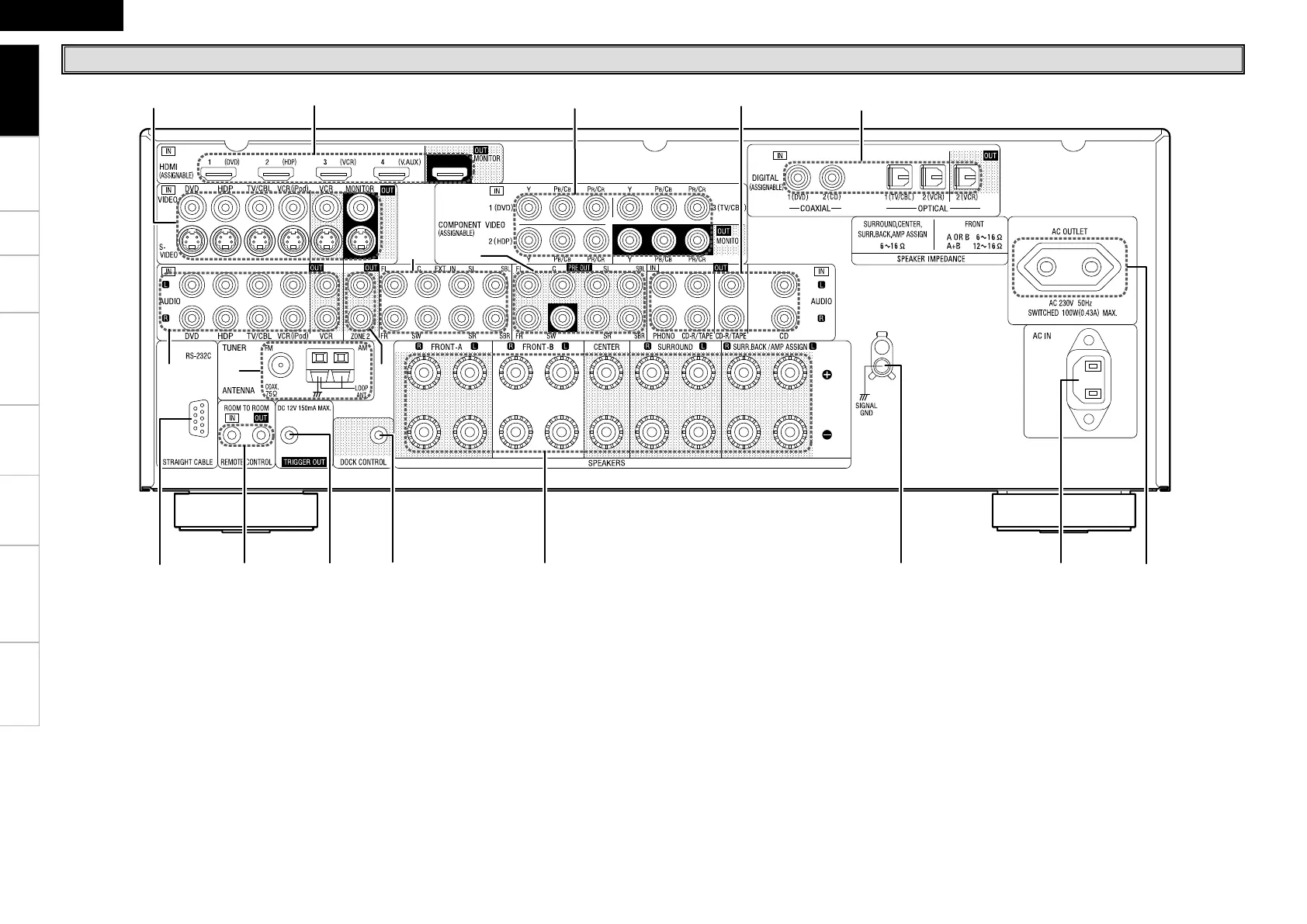

q RS-232C connector ·································································· (16)

w REMOTE CONTROL jacks ······················································· (16)

e TRIGGER OUT jack ·································································· (16)

r DOCK CONTROL jack ······························································ (13)

t Speaker terminals (SPEAKERS) ············································· (10)

y SIGNAL GND terminal ···························································· (12)

u AC inlet (AC IN) ········································································ (16)

i AC OUTLET ·············································································· (16)

o Digital audio connectors (OPTICAL / COAXIAL)··········· (12 ~ 14)

Q0 Analog audio connectors (AUDIO) ·································· (13, 14)

Q1 COMPONENT VIDEO connectors ····································· (12, 13)

Q2 HDMI connectors ························································· (11, 12, 14)

Q3 VIDEO / S-VIDEO connectors ··········································· (12, 14)

Q4 FM/AM antenna terminals (TUNER ANTENNA)··················· (15)

Q5 ZONE2 connectors ·································································· (16)

Q6 EXT. IN connectors ·································································· (15)

Q7 PRE OUT connectors ······························································· (10)

Rear Panel

Getting Started



Connections Setup Playback Remote Control Multi-zone Information Troubleshooting

ENGLISH

Speciﬁcations

Questions and Answers:

Need help?

Do you have a question about the Denon AVR-2309 and is the answer not in the manual?

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
