For buttons not explained here, see the page indicated in parentheses ( ).
q w
e
r
t
y u
i
o Q0Q1 Q2
Q3
Q4
Q5
W4 W5 W6 W7 W8 W9 E0 E1 E2 E3
Q8 Q7 Q6Q9W0W1W2W3
q Power operation button (ON/STANDBY) ····························· (46)
w Power indicator ······································································· (46)
e Power switch (hON jOFF) ·················································· (46)
r Headphones jack (PHONES) ··················································· (46)
t INPUT MODE button ························································· (15, 34)
y SPEAKERS button ····························································· (26, 46)
u ZONE2 ON/OFF button ··························································· (62)
i QUICK SELECT buttons ·························································· (55)
o V. AUX INPUT connectors
Remove the cap covering the terminals when you want to use
them.
Q0 SETUP MIC jack ······································································· (20)
Q1 MENU button ············································································(17)
Q2 RETURN button ······································································· (17)
Q3 SELECT/ENTER knob ······························································ (17)

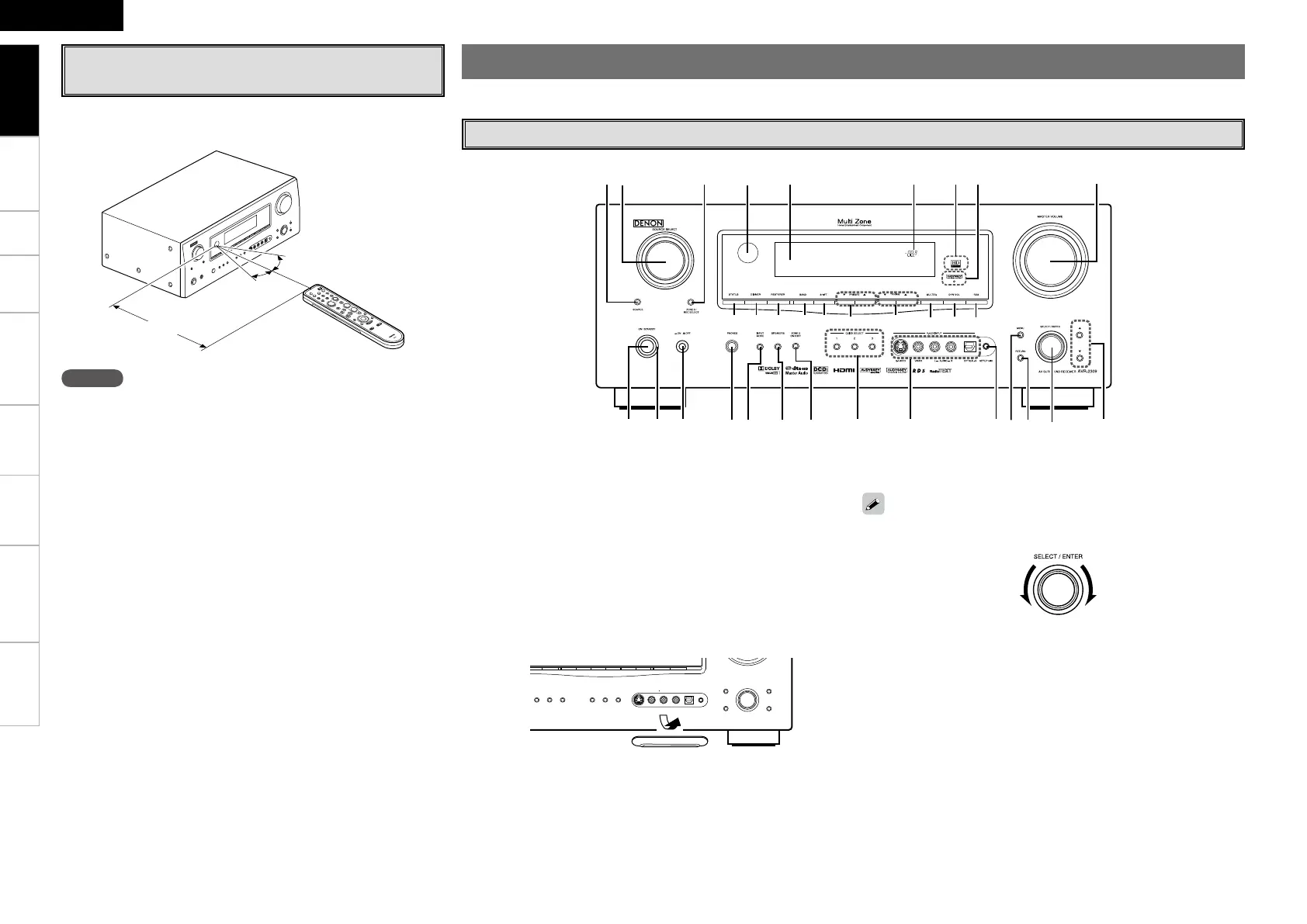

Part Names and Functions
Front Panel
• The SELECT/ENTER knob on the main unit operates in the same way
as the cursor o and p buttons on the remote control unit.
• The control functions in the same way as the cursor o button when
turned counterclockwise, as the cursor p button when turned
clockwise.
• The control functions in the same way as the ENTER button when
pressed the knob.
Getting Started
30°
30°
Approx. 7 m
Operating Range of the Remote Control
Unit
Point the remote control unit at the remote sensor when operating it.
NOTE
The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or infrared
light.
Q4 Cursor buttons (ui) ······························································ (17)
Q5 MASTER VOLUME control knob ············································ (46)
Q6 AUDYSSEY DYNAMIC VOLUME indicator ··························· (42)
Q7 HD AUDIO indicator ································································ (37)

Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
