Denon AVR-2309 User Manual

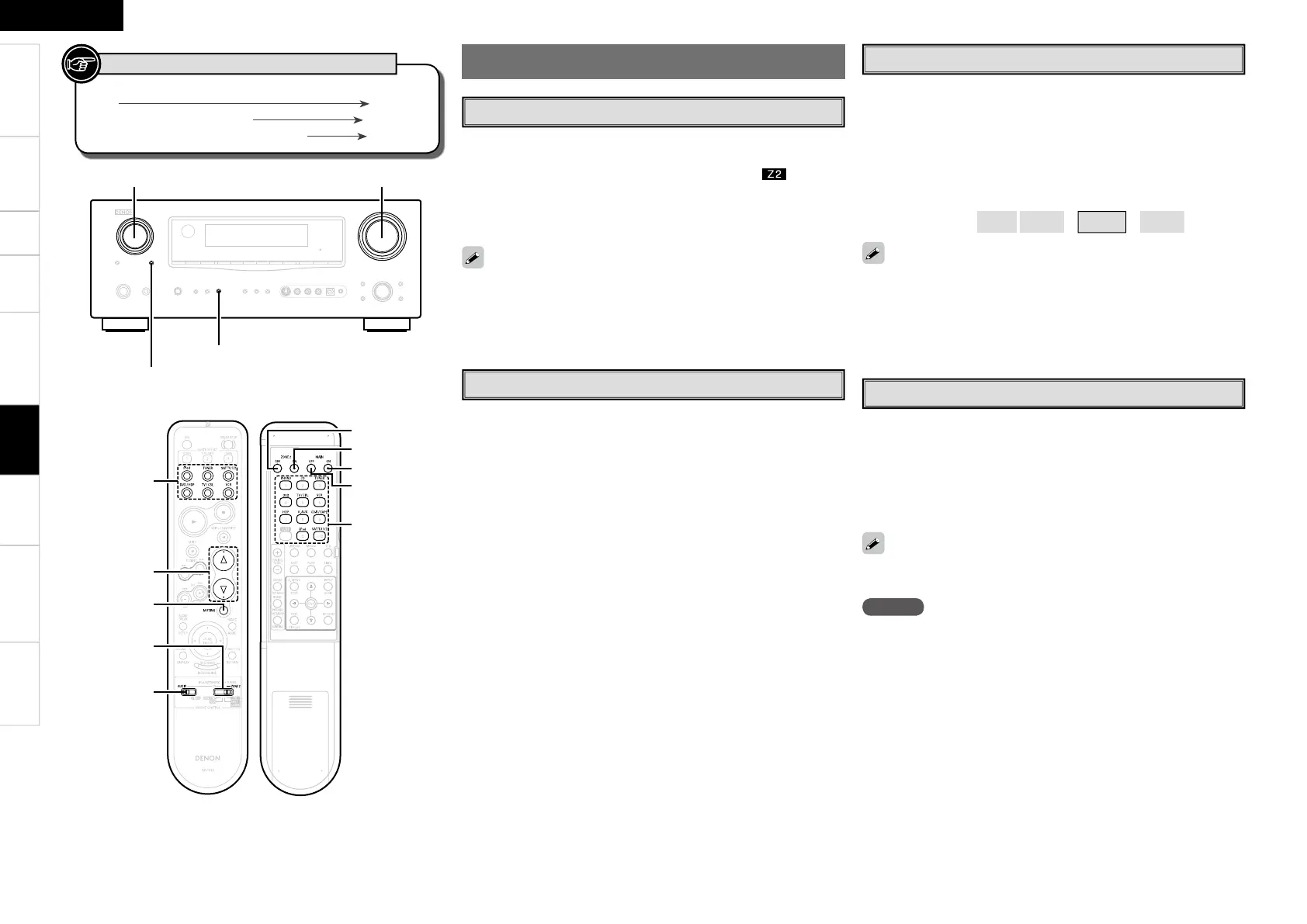

Multi-zone Operations
Turning the Power On and Off
GOperation on the main unitH
Press <ZONE2 ON/OFF>.
When the power turns on, the multi-zone indicator ( ) lights on
the display.
GOperation on the remote control unitH
Press [ZONE2 ON] or [ZONE2 OFF].
Selecting the Input Source
GOperation on the main unitH
q Press <ZONE2/REC SELECT> and select the zone to be adjusted.
w Turn <SOURCE SELECT>.
GOperation on the remote control unitH
q Set [SOURCE CONTROL 1] to “AUDIO” and [SOURCE CONTROL 2]
to “ZONE2”.
w Press [SOURCE SELECT].
Adjusting the Volume
GOperation on the main unitH
q Press <ZONE2/REC SELECT> and select the zone to be adjusted.
w Turn <VOLUME> to adjust.
GOperation on the remote control unitH
q Set [SOURCE CONTROL 1] to “AUDIO” and [SOURCE CONTROL 2]
to “ZONE2”.
w Press [VOLUME].
<ZONE2 ON/OFF>
<ZONE2/REC SELECT>
<SOURCE SELECT> <VOLUME>
[SOURCE
CONTROL 1]
[SOURCE
CONTROL 2]
[SOURCE
SELECT]
[VOLUME]
[MUTING]
[Variable range]
– – – –70dB
~
–40dB
~
+18dB
• The volume can be increased up to the value set at menu “Manual
Setup” – “ZONE2 Setup” – “Volume Limit” (vpage 29).
• The ZONE2 volume can be adjusted only when “ZONE2” is selected
at menu “Manual Setup” – “Option Setup” – “Amp Assign”
(vpage 29).
Turning off the Sound Temporarily
q Set [SOURCE CONTROL 1] to “AUDIO” and [SOURCE CONTROL 2]
to “ZONE2”.
w Press [MUTING].
The sound is reduced to the level set at menu “Manual Setup”
– “ZONE2 Setup” – “Mute Level” (vpage 29).
To cancel, either adjust the volume or press [MUTING] again.
The setting is canceled when the zone’s power is turned off.
The source selected for ZONE2 is also output from the recording
output connectors.
NOTE
Digital audio signals input from the COAXIAL, OPTICAL or HDMI
connectors cannot be played in multi-zone.
[ZONE2 ON]
[MAIN ON]
[MAIN OFF]
[SOURCE
SELECT]
[ZONE2 OFF]
• Also press [SOURCE SELECT] when in standby mode, the power
turns on.
• When using ZONE2, it is possible to turn the power for the MAIN
ZONE only on or off by pressing [MAIN ON] or [MAIN OFF].
[Front] [Rear]
Button located on both the main unit and the remote control
unit BUTTON
Button only on the main unit <BUTTON>
Button only on the remote control unit [BUTTON]
Symbols used to indicate buttons in this manual

Getting Started Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifi cations

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
