Denon AVR-2309 User Manual

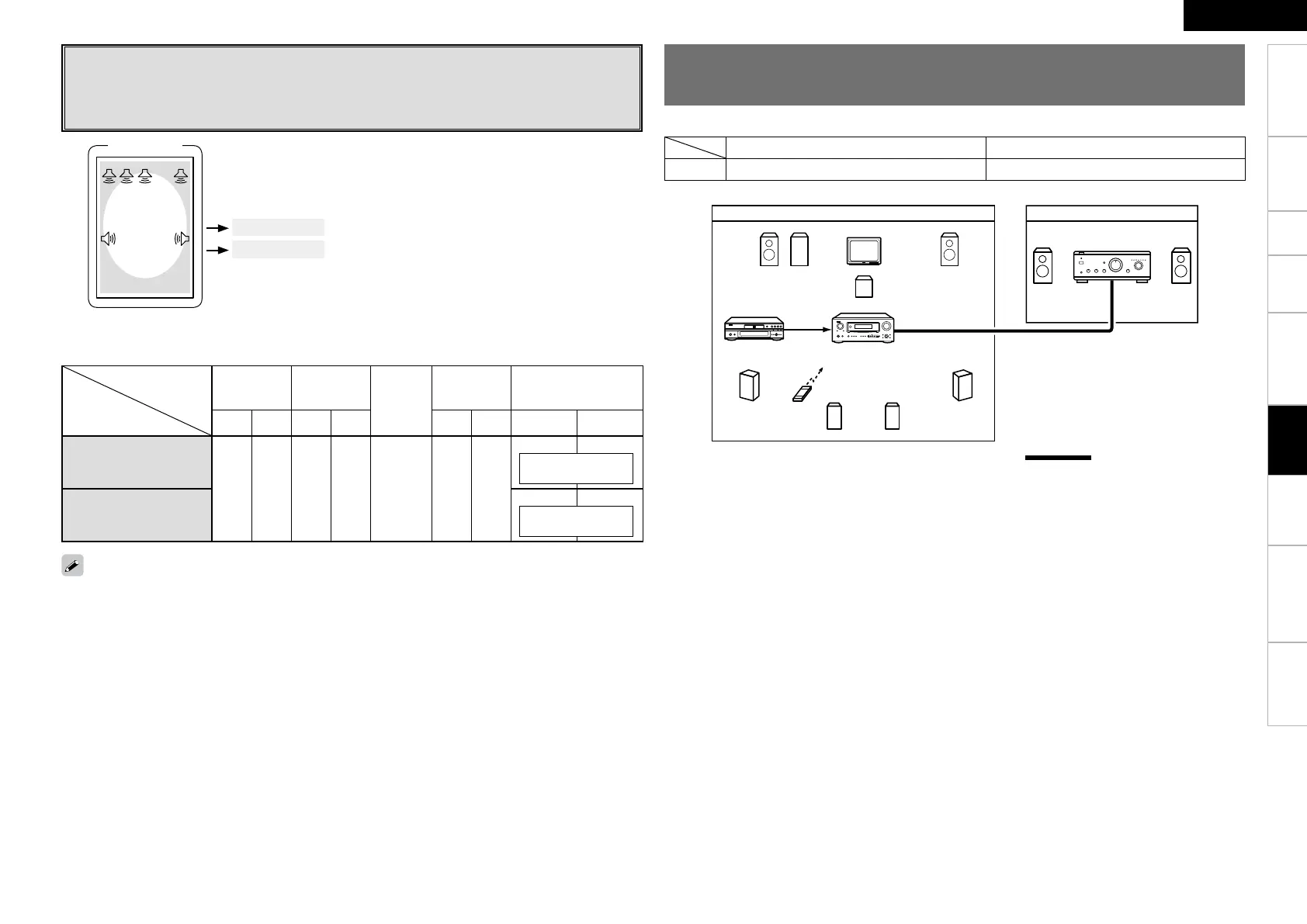

Setting 3 :
F Making bi-amp connections for the FL and FR channels in the MAIN ZONE
and conducting 5.1-channel playback
(switching with other modes not possible)
FL
SW C FR
SL SR
MAIN ZONE
5.1ch
FL/FR
Bi-Amp
Front A Bi-Amp
Amp Assign mode:
Front B Bi-Amp
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT-A FRONT-B
CENTER
SURROUND
SURROUND BACK /
AMP ASSIGN
R L R L R L R L
Front A Bi-Amp
FR-A FL-A FR-B FL-B C SR SL
FR FL
Front B Bi-Amp
FR FL
FL-A/FR-A Bi-Amp
connection
FL-B/FR-B Bi-Amp
connection
The Front A or Front B channel for Bi-Amp use is output from the speakers connected to the SURR.BACK/
AMP ASSIGN terminals.
Multi-zone Settings and Operations with Zone
Output
$
'- 48 '3
4-
43
4#
3
4#
-
y
MAIN ZONE (7.1-channel system)
Monitor
ZONE2
Blu-ray Disc player /
DVD player
Input
ZONE2
audio output
AVR-2309
Pre-main amplifier
: Multi-zone audio cable
Connectors for audio output Audio signals
ZONE2 ZONE2 OUT Stereo
Prepare pre-main amplifiers for ZONE2.
Remote
control unit

Getting Started Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
