Denon AVR-2309 User Manual

Convenient Functions

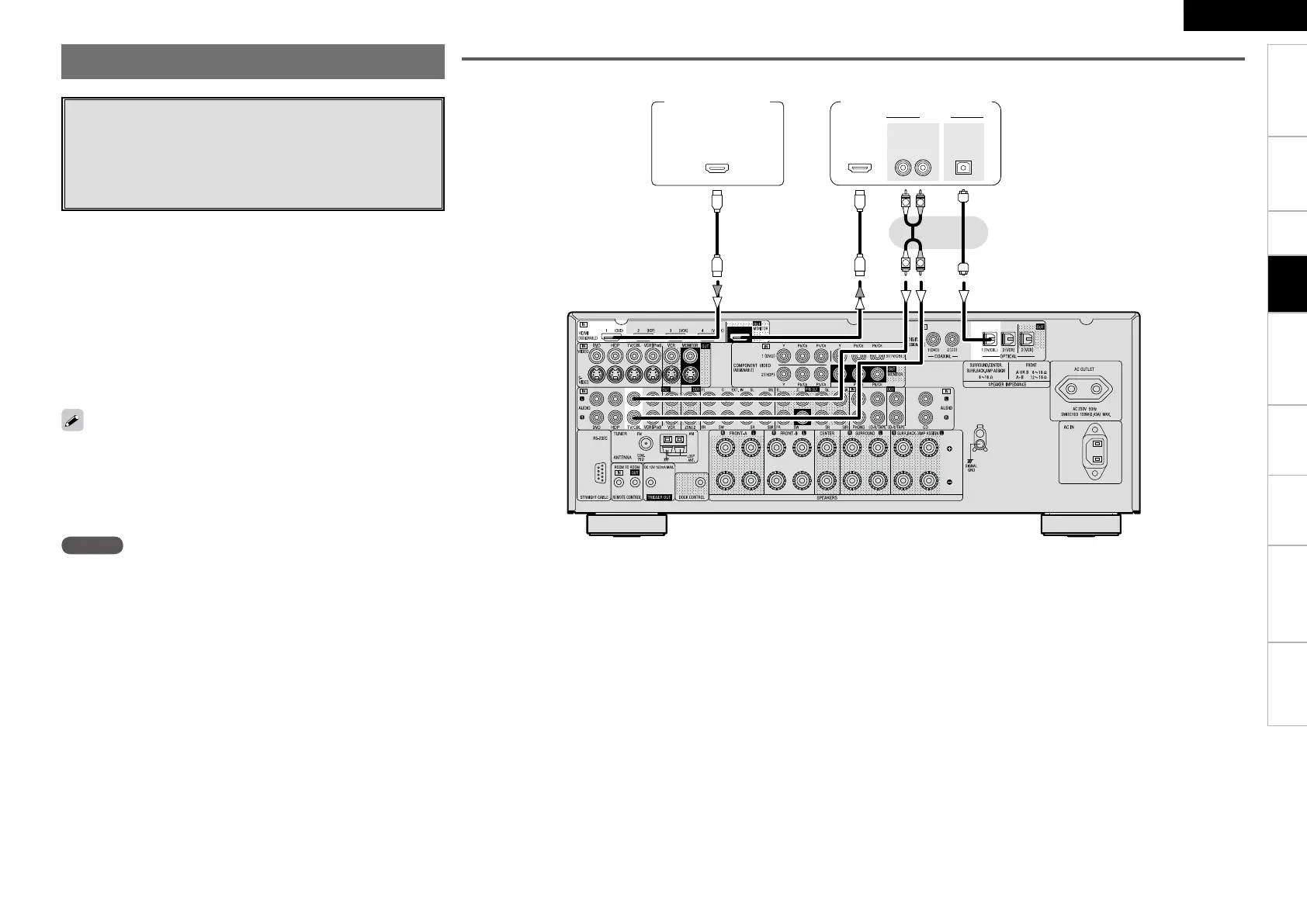

HDMI Control Function
When AVR-2309 is connected to a TV and player compatible with
HDMI control function, you can perform the following operations.
Settings other than AVR-2309 settings must be made on the
respective devices. (Check the operating instructions of each
device for details.)
NOTE
When using the HDMI control function, do not assign HDMI input to “TV/
CBL” by setting “Input Setup” – “Assign” – “HDMI In” in the menu.
3-
065
015*$"-
065
"6%*0
"6%*0
R
L
R
L
065
)%.*
*/
)%.*
Connections
Player compatible
with HDMI
control function
Television compatible with
HDMI control function
• When you want to listen to TV audio by AVR-2309, connect optical
digital or analog.
If the TV you are using has both connection jacks, use the optical
digital connection.
• When using these functions set as follows: menu “Manual Setup” –
“HDMI Setup” – “HDMI Control” (vpage 26).
• AVR-2309 power off can be linked to the TV power off step.
When you set “Output audio from amp” in the TV audio output setup
operation, you can switch the amp power on.
• You can switch audio output devices with a TV operation.
(When outputting from the TV speakers, output switches from
speakers connected to AVR-2309).
• You can adjust AVR-2309 volume in the TV volume adjustment
operation.
• You can switch AVR-2309 functions through linkage to TV input
function switching.
• When playing the player, the AVR-2309 input function switches to
the function of that player.

Getting Started Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
