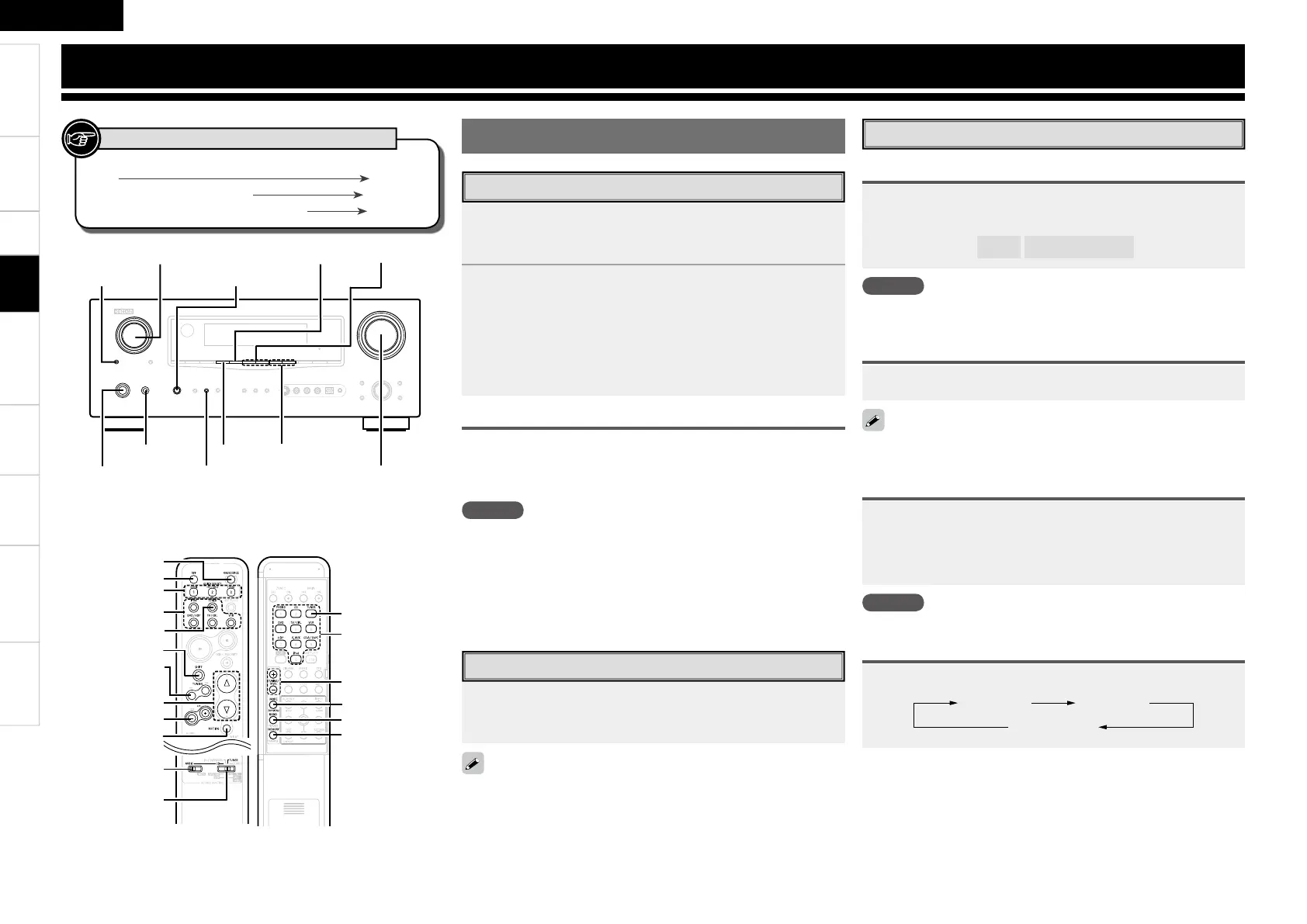

Denon AVR-2309 User Manual

Preparations
1
Press <POWER>.
The power indicator lights red and the power is set to the
standby mode.
2
Press <ON/STANDBY> or [ON/SOURCE].
The power indicator fl ashes green and the power turns on.
b Also press SOURCE SELECT when in standby mode, the power
turns on. In this case the input source is selected by remote
control unit.
b Also press [QUICK SELECT] when in standby mode, the power
turns on. In this case Quick Select is selected.
Turning the Power Off
q Press <ON/STANDBY> or [OFF].
The power is set to the standby mode.
w Press <POWER>.
The power indicator turns off, and so does the power.
NOTE
• Power continues to be supplied to some of the circuitry even when
the power is in the standby mode. When leaving home for long
periods of time or when traveling, either press <POWER> to turn off
the power, or unplug the power cord from the power outlet.
• When the multi-zone power is switched on, and you want to switch
off the main zone power, press [OFF].
Turning the Power On
Selecting the Input Source
If “Rec Select” is selected for the input source, press <SOURCE>
before turning <SOURCE SELECT>.
Either turn <MASTER VOLUME> or press [MASTER
VOLUME].
[Variable range]
– – – –80.0dB ~ +18.0dB
Operations During Playback
Adjusting the Master Volume
Press [MUTING].
To cancel, press [MUTING] again. Muting can also be canceled by
adjusting the master volume.
Plug the headphones into the PHONES jack on the main
unit.
The sound from the speakers and pre-out connectors is automatically
cut.
NOTE
Be careful not to set the volume too high when using headphones.
Turning Off the Sound Temporarily (Muting)
Listening with Headphones
Press <SPEAKERS>.
Front A Front B
Front A+B
Switching the front speakers
<ON/STANDBY>
<POWER>
<SPEAKERS>
<SOURCE>
<SOURCE SELECT>
<MASTER VOLUME>
BAND
TUNING
<PRESET>
SHIFT
SOURCE SELECT
SHIFT
TUNING
[SOURCE
CONTROL 1]
[SOURCE
CONTROL 2]
[TUNER]
[CHANNEL+/–]
[OFF]
[QUICK SELECT]
[ON/SOURCE]
[MASTER
VOLUME]
[MUTING]
SOURCE SELECT
TUNING
[MODE]
[MEMORY]
[TUNER]
BAND
[Front] [Rear]
Button located on both the main unit and the remote control
unit BUTTON
Button only on the main unit <BUTTON>
Button only on the remote control unit [BUTTON]
Symbols used to indicate buttons in this manual
Playback
Select the source using SOURCE SELECT.
Turn <SOURCE SELECT> or press [SOURCE SELECT] to switch
between input sources.
NOTE
The adjustable range will differ depending upon factors such as the
type of input signal and the channel level setting.
PHONES jack

Getting Started Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifi cations

Denon AVR-2309 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic IIx
Auto Calibration	Audyssey MultEQ
Component Video Inputs	3
Analog Audio Inputs	7
Response Bandwidth	10 - 100000 Hz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
HDMI Pass-Through	Yes
Frequency Response	10 - 100000 Hz
DTS Technologies	DTS-HD Master Audio
Digital Audio Inputs	2 Coaxial
Audio D/A Converter	192kHz/24-bit
Amplifier Output Details	100 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 7 channel(s)
