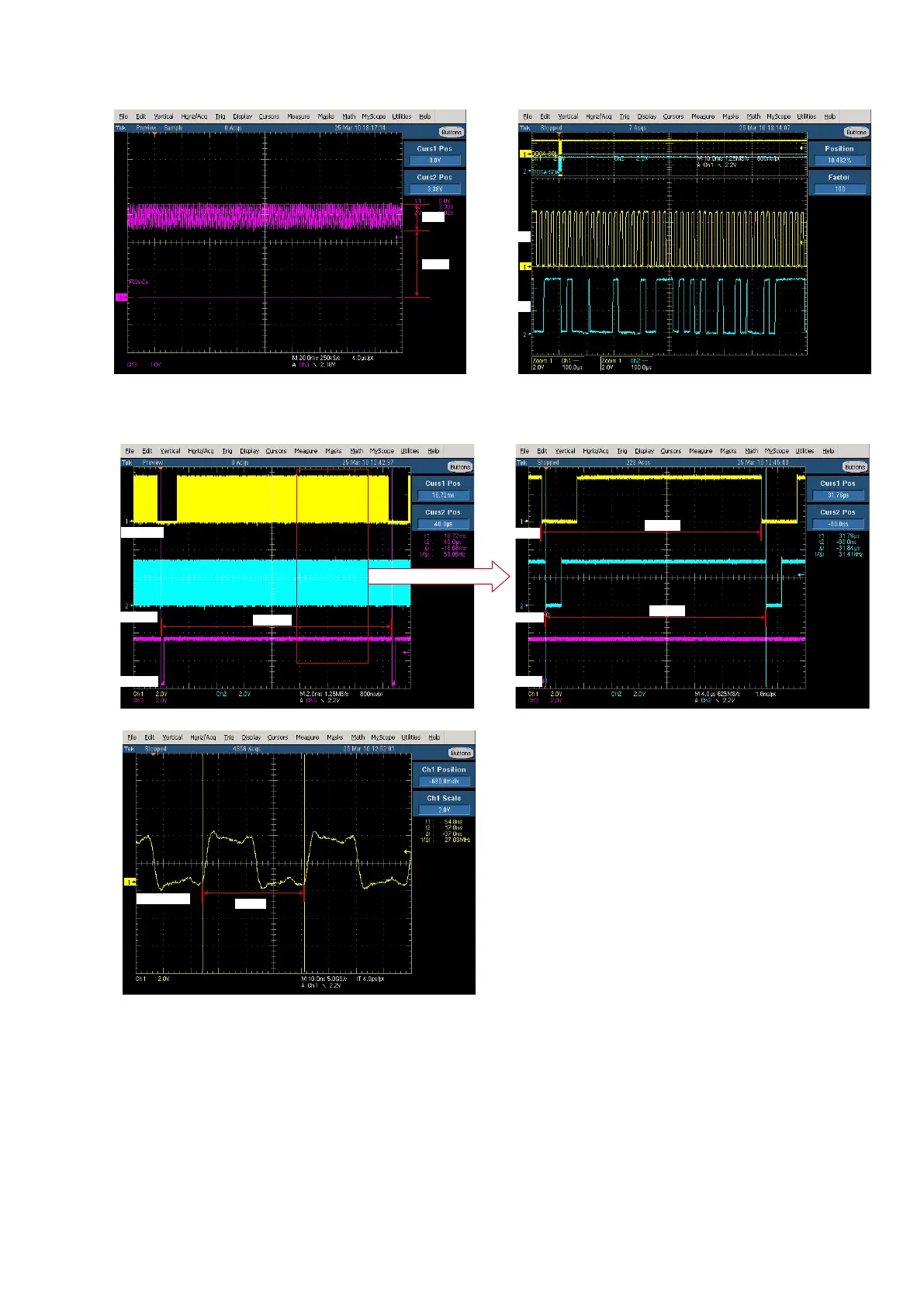

DDC_CLK/DDC_DATA/TMDS : Check item (15),(17),(25),(35),(36)

INPUTDE/INPUTVSN/INPUTHSN/INPUTVCLK : Check item (21)

0.9V

2.48V

DDC_CLK

DDC_DATA

16.68ms

INPUTHSN

INPUTVSN

INPUTHSN

INPUTVSN

31.84us

31.76us

INPUTDE

INPUTVCLK

37.0ns
