Denon AVR-3312 Service Manual

91

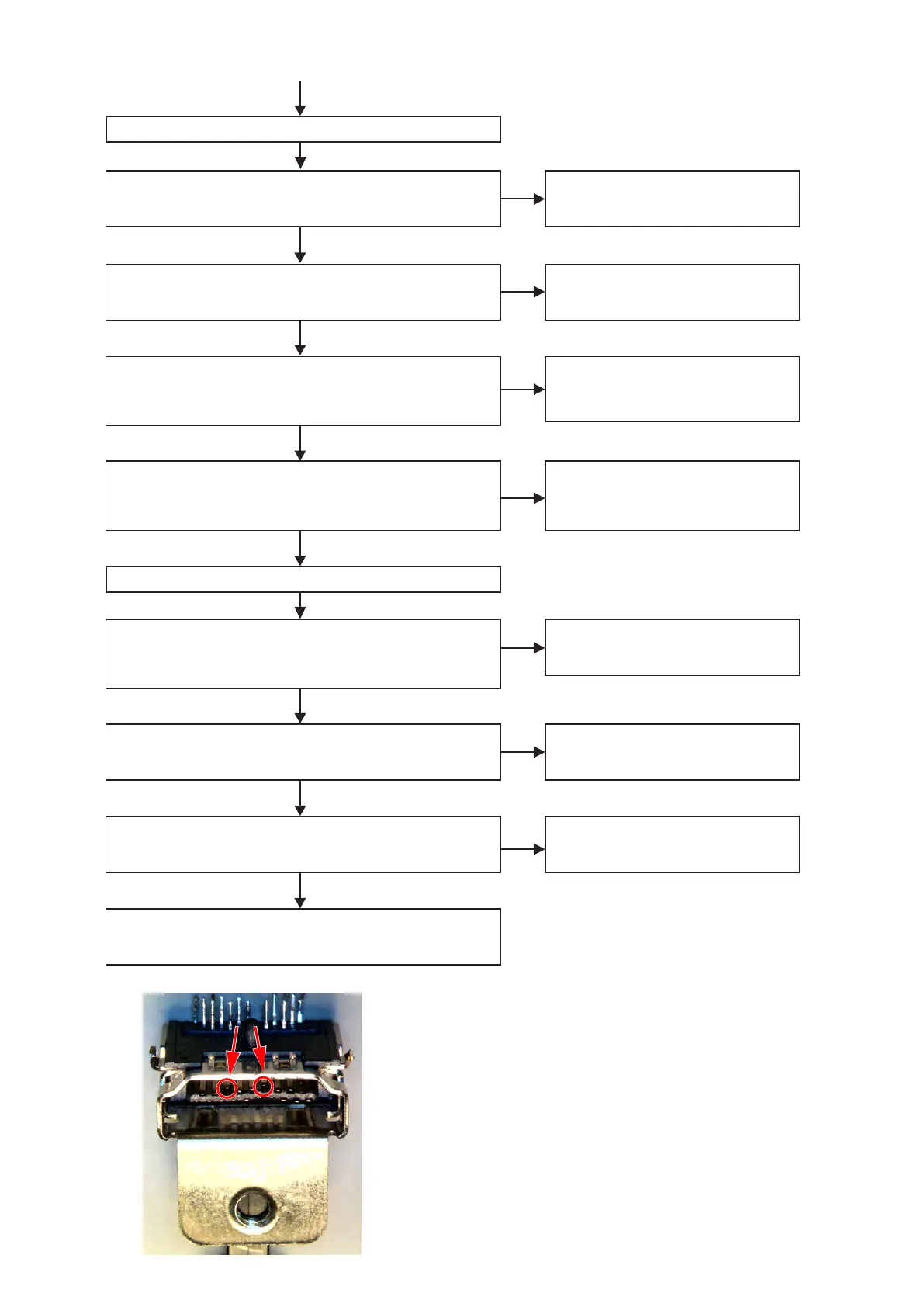

CheckoperationofIC121(ADV7844).
(25) Check power supply.
Are 1.8V supplied to L1202/L1203/L1204/L1205?
Are 3.3V supplied to L1201/L1206/L1207?
The power supply circuitry is defective.
NO
YES
(27) Check RESET.
Is RESET waveform conrmed in TP[7844_RESET], when power
is turned on? (If the waveform is not the reference waveform,
proceed to NO.)
The RESET circuitry or IC121 is defective.
NO
YES
YES
(26) Check xtal oscillator.
Is oscillation of X1201(28.6363MHz) transmitted?
The X1201 or IC121 is defective.
NO
YES
(28) Check output signal.
Is waveform con rmed in TP[DE/VSYNC/HSYNC/PCLK].
(If the waveform is not the reference waveform, proceed to NO.)
The IC121 is defective.
NO
YES
YES
YES
CheckoperationofIC151(ADV8002)
(30) Check xtal oscillator.
Is oscillation of X1501(27MHz) transmitted?
(31) Check RESET.
Is RESET waveform conrmed in TP[8002_RESET], when power
is turned on? (If not reference waveform, proceed to "NO".)
The pattern and circuit from the HDMI connector (JK151/JK152) to
the IC(IC151) is defective, or HDMI output circuitry is defective.
(29) Check power supply.
Are 1.8V supplied to L1501/L1502/L1503/L1504/L1505/C1529/
C1561/L1509/L1513/L1518/L1521/L1522?
Are 3.3V supplied to L1508/L1510/L1511/L1514?
The power supply circuitry is defective.
The X1501 or IC151 is defective.
The RESET circuitry (Q1507 and
surrounding circuitry) or IC151 is defective.
NO
NO
NO
YES
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon AVR-3312 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	125 W
HDMI in	7
Audio (L/R) in	8
Composite video in	5
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Composite video out	3
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFL
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	670 W
Card reader integrated	-
Cables included	AC

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11800 g
