10
ENGLISH
System setup Default settings
!1
On Screen
Display
This sets whether or not to display the on-screen display that
appears on the monitor screen when the controls on the remote
control unit or main unit are operated.
A setting to prevent flickering.
On Screen Display = ON / Mode 1
A1 ~ A8 87.5 / 89.1 / 98.1 / 108.0 / 90.1 / 90.1 / 90.1 / 90.1 MHz
B1 ~ B8 522 / 603 / 999 / 1404 / 1611 kHz, 90.1 / 90.1 MHz
C1 ~ C8 90.1 MHz
D1 ~ D8 90.1 MHz
E1 ~ E8 90.1 MHz
!3
Auto Tuner
Preset
FM stations are received automatically and stored in the
memory.
i
Audio Delay
Set the audio delay to delay time the sound and synchronize it
with the picture.
0 ms
o
Ext. In
Subwoofer
Level
Set the Ext. In Subwoofer terminal playback level. Subwoofer = +15 dB
!0
Auto Surround
Mode
Set the Auto surround mode function. Auto Surround Mode = ON
!2
Trigger Out
Setup
Set the Trigger Out output for the different input sources.
PHONO
CD TUNER DVD TV
V. AUX
VDP
CDR/TAPE
DBS VCR-2VCR-1
OFF OFF OFF
ON ON ONON
OFF
ON ONON
!4
Setup Lock
Set whether or not to lock the system setup settings so that
they cannot be changed.
Setup Lock = OFF
NOTES:
• The on-screen display signals are output with priority to the S-VIDEO MONITOR OUT jack during playback
of a video component. For example, if the TV monitor is connected to both the AVR-3803’s S-Video and
video monitor output jacks and signals are input to the AVR-3803 from a video source (VDP, etc.) connected
to both the S-Video and video input jacks, the on-screen display signals are output with priority to the S-
Video monitor output. If you wish to output the signals to the video monitor output jack, do not connect a
cord to the S-VIDEO MONITOR OUT jack. (For details, see page 18.)
• The AVR-3803’s on-screen display function is designed for use with high resolution monitor TVs, so it may
be difficult to read small characters on TVs with small screens or low resolutions.
• The setup menu is not displayed when headphones are being used.

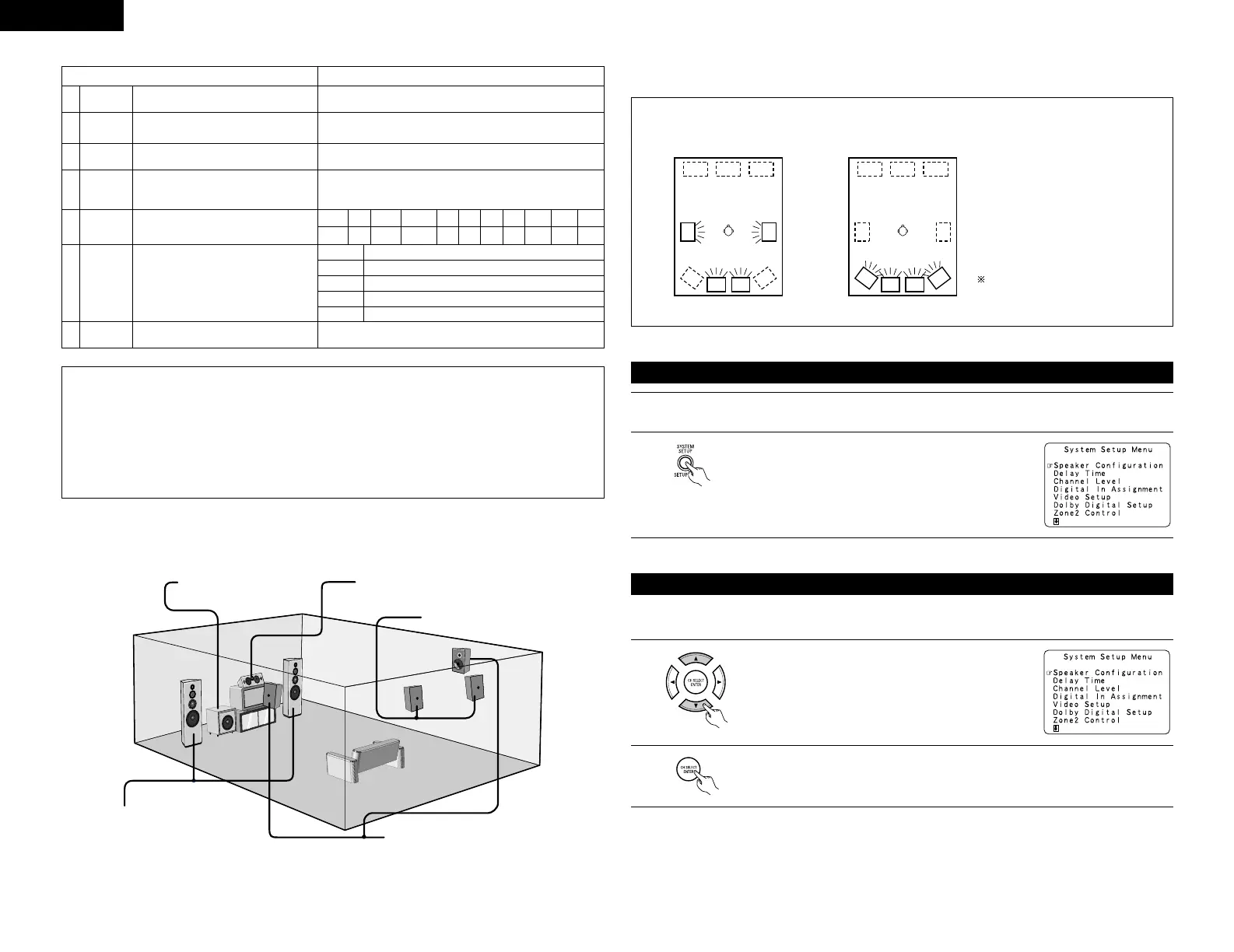

• Speaker system layout
Basic system layout
• The following is an example of the basic layout for a system consisting of eight speaker systems and a
television monitor:
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems
Set these at the sides of the TV or
screen with their front surfaces as flush
with the front of the screen as possible.
With the AVR-3803 it is also possible to use the surround speaker selector function to choose the best layout for
a variety of sources and surround modes.
• Surround speaker selector function
This function makes it possible to achieve the optimum sound fields for different sources by switching
between two systems of surround speakers (A and B).
Using A only Using B only
SB: SURROUND BACK SPEAKER
Before setting up the system
2
Display the System Setup Menu.
1
Check that all the connections are correct, then turn on the main unit’s power.
• The composition of the signals output to the different channels and the frequency response are adjusted
automatically according to the combination of speakers actually being used.
Setting the type of speakers
1
At the System Setup Menu select “Speaker Configuration”.
2
Switch to the speaker configuration screen.
To Next Page
