Denon AVR-3803 Operating Instruction

21
ENGLISH
2
Operate the component.
• For details, refer to the component’s operating instructions.
Some models cannot be operated with this remote control unit.
DVD
1. Digital video disc player
(DVD, DVD SETUP) system
buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 :Stop
1 : Play
8,9 : Auto search
(to beginning of track)
3 : Pause
0 ~ 9, +10 : 10 key
DISC SKIP + : Disc skip
(for DVD changer only)
DISPLAY : Display
MENU : Menu
RETURN : Return
SETUP : Setup
ENTER : Enter
•, ª,
0 , 1 : Cursor up, down, left
and right
2. Video disc player (VDP)
system buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 : Stop
1 : Play
8,9 : Auto search (cue)
3 : Pause
0~9, +10 : 10 key
VDP
3. Video deck (VCR-1/VCR-2)
system buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 :Stop
1 : Play
3 : Pause
Channel +, – : Channels
VCR1
4. Monitor TV (TV), digital
broadcast satellite (DBS)
tuner and cable (CABLE)
system buttons
POWER : Power on/standby
(ON/SOURCE)
MENU : Menu
•, ª,
0 , 1 : Cursor up, down,
left and right
ENTER : Enter
CHANNEL : Switch channels
+, –
0~9, +10 : Channels
TV/VCR : Switch between TV
and video player
TV VOL +, – : Volume up/down
DISPLAY : Switch display
RETURN : Return
TV

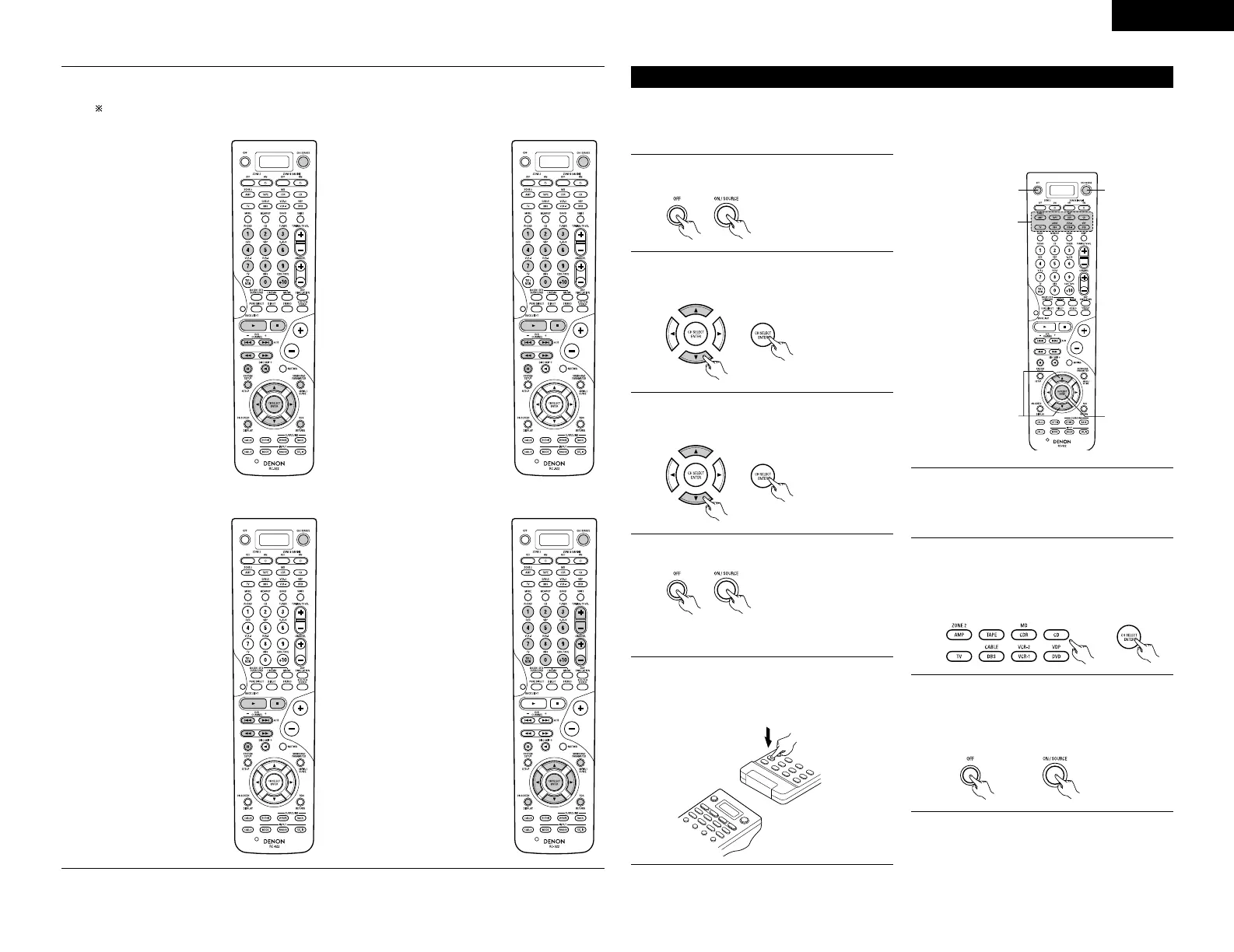

If your AV component is not a DENON product or if it cannot be operated using the preset memory, it can be
controlled with the included remote control unit by storing its remote control signals in the remote control unit.
For some remote control signals it is not possible to “learn” the signals or the device will not operate properly.
In such cases use the remote control unit included with the device to operate it.
Learning function
1
Press the power ON/SOURCE button and the
OFF button simultaneously.
•“PRE” appears on the
remote control unit’s
display.
2
Use the • and ª cursor buttons to display
“LRN” on the remote control unit’s display, then
press the ENTER button.
•“SEL” is displayed.
DVD
7
2, 3
1, 4, 81, 4, 8
2, 3, 7
3
Use the • and ª cursor buttons to select the
mode for the button to be “learned”, then press
the ENTER button.
•“KEY” is displayed.
4
Press the button to be “learned” while “KEY”
is displayed. “START” appears.
•“AGAIN” is displayed if a
button that cannot be
“learned” is pressed.
• To cancel, press the power ON/SOURCE
button and the OFF button simultaneously.
5
Point the remote control units directly at each
other and press and hold in the button on the
other remote control unit which you want to
“learn”.
Other remote
control unit
6
“OK” appears on the remote control unit’s
display and learning is completed.
•“KEY” is displayed. Other keys can be
“learned” by repeating steps 4 to 5.
8
To cancel the learning mode, press the power
ON/SOURCE button and the OFF button
simultaneously again.
Registering is not possible in the receiver
mode.
7
The mode can be switched by pressing a mode
button while the “KEY” indicator is lit.
When the “ENTER” button is pressed, the
“KEY” display reappears and the learning
standby mode is set.

Denon AVR-3803 Specifications

General

Channels	7.1
Dolby Digital	Yes
DTS	Yes
Component Video Inputs	3
S-Video Inputs	7
Digital Audio Inputs	5 (3 Optical, 2 Coaxial)
Analog Audio Inputs	9
Type	AV Receiver
THD	0.05%
Input Sensitivity	200 mV
Signal to Noise Ratio	100 dB
Frequency Response	10 Hz - 100 kHz
Digital Inputs	5 (3 Optical, 2 Coaxial)
Weight	33.1 lbs
Amplifier Channels	7
Signal-to-Noise Ratio	100 dB
Surround Sound Modes	Dolby Digital, DTS, Dolby Pro Logic II
Power Output	110W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Video Inputs	S-Video, Component
Input Sensitivity/Impedance	200 mV / 47 kOhm
Video Inputs/Outputs	S-Video, Component
Dimensions (W x H x D)	17.1 x 6.6 x 16.9 inches
