10
3. PCB REG CNT/PCB REG
(1) Removethescrews.
(2) Disconnecttheconnectorwiresandconnectorboard..
CABINET TOP
RADIATOR ASSY
PCB REG CNT/PCB REG
Proceeding :
PCB REG

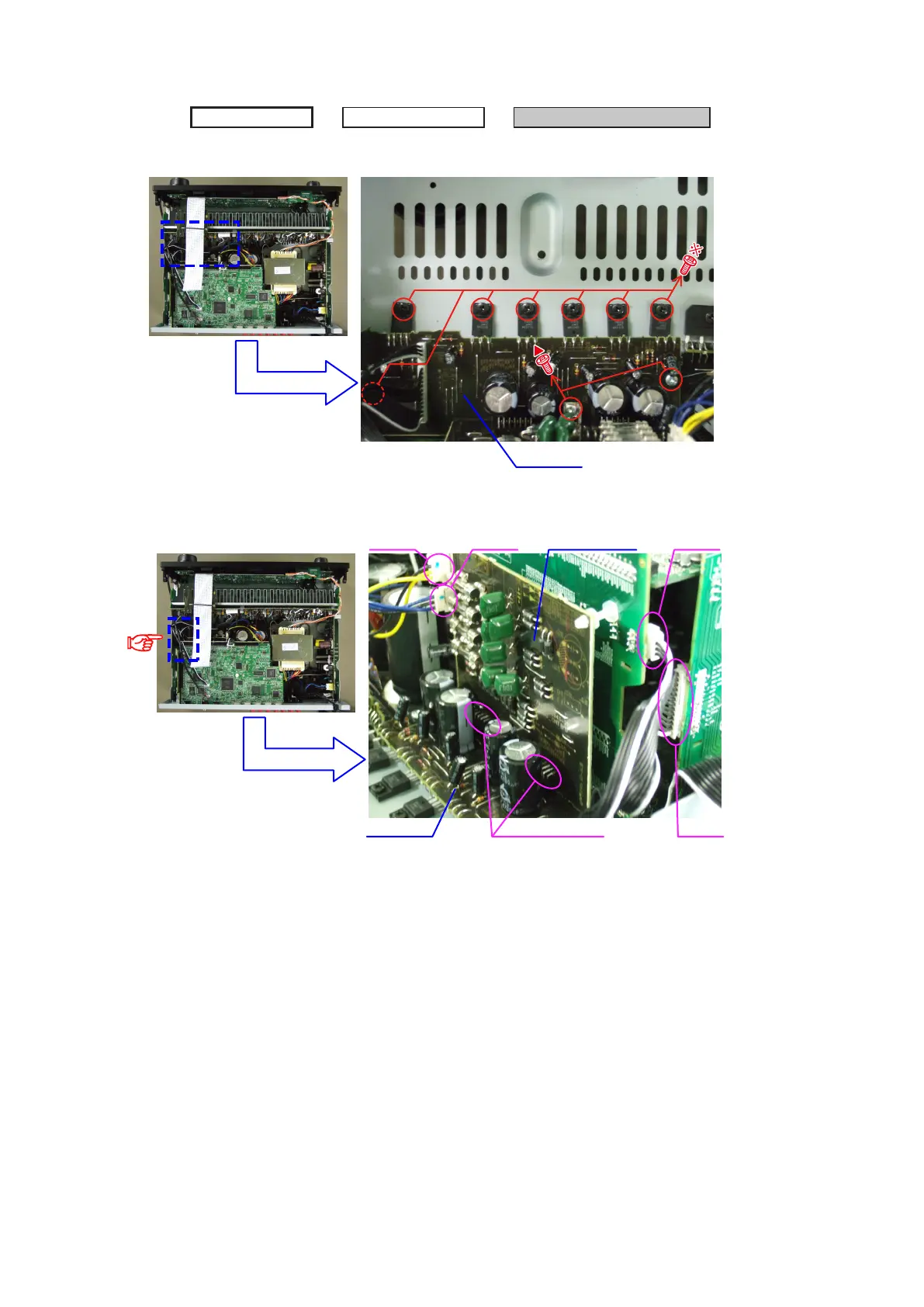

Direction of photograph: C
CP13BCP104
PCB REG CNT
Board to board
CP102
CP13A
PCB REG
