Denon AVR-791 Service Manual

107
ADSP21367KSWZ2A (HDMI : U1901)

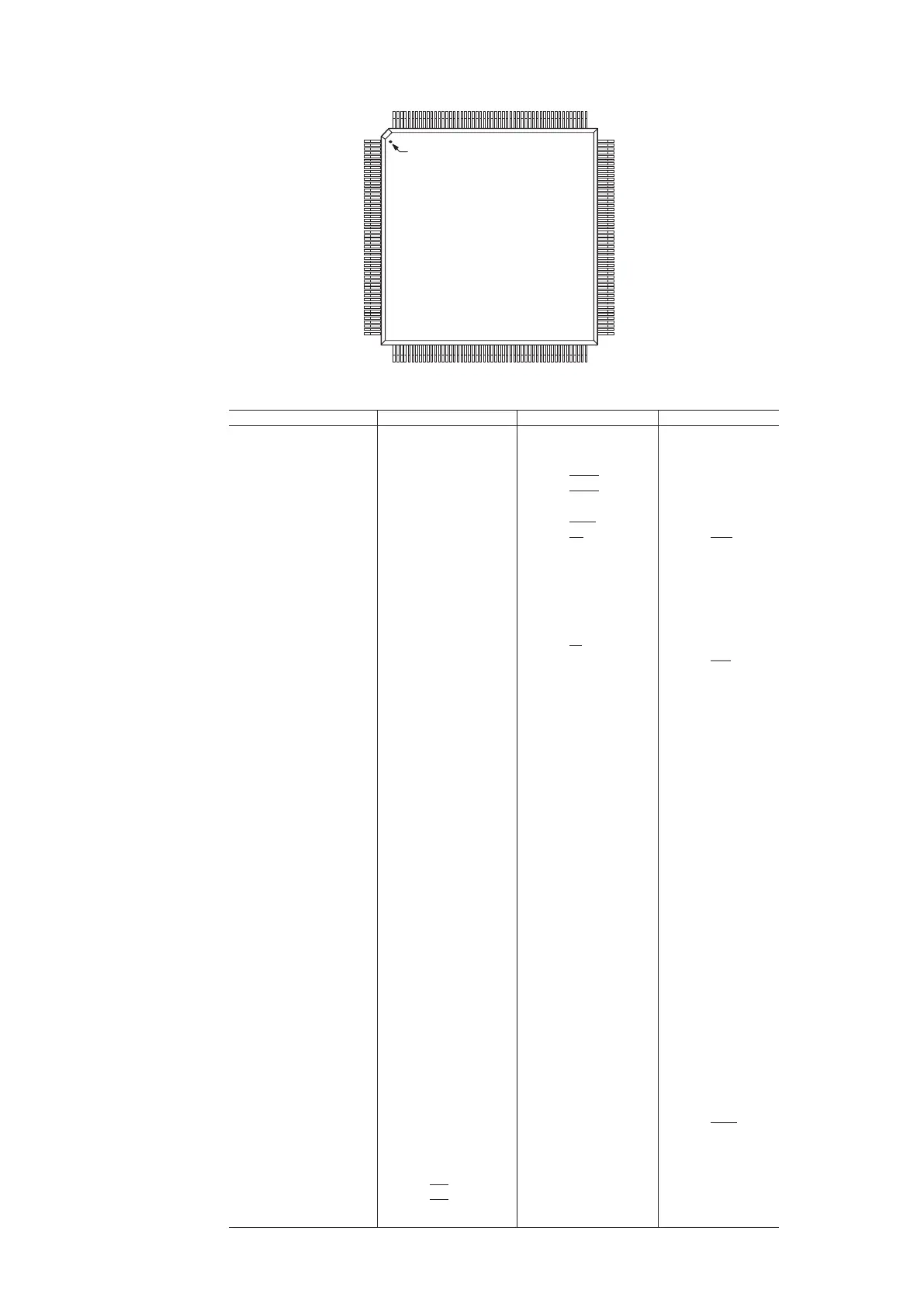

ADSP21367KSWZ2A Terminal Function
1
208 157
156
105
10453
52
TOP VIEW
(PINS DOWN)
PIN 1 INDICATOR
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 VDD 53 VDD 105 VDD 157 VDD
2 DATA28 54 GND 106 GND 158 VDD
3 DATA27 55 IOVDD 107 IOVDD 159 GND
4 GND 56 ADDR0 108 SDCAS
160 V D D
5 IOV DD 57 ADDR2 109 SDRAS
161 V D D
6 DATA26 58 ADDR1 110 SDCKE 162 V D D
7 DATA25 59 ADDR4 111 SDWE
163 TDI
8 DATA24 60 ADDR3 112 WR
164 T RST
9 DATA23 61 ADDR5 113 SDA10 165 TCK
10 GND 62 GND 114 GND 166 GND
11 VDD 63 VDD 115 I OVDD 167 VDD
12 DATA22 64 GND 116 SDCLK0 168 TMS
13 DATA21 65 IOVDD 117 GND 169 CLK_CFG0
14 DATA20 66 ADDR6 118 VDD 170 BOOTCFG0
15 IOVDD 67 ADDR7 119 RD
171 CLK_CFG1
16 GND 68 ADDR8 120 ACK 172 EMU
17 DATA19 69 ADDR9 121 FLAG3 173 BOOTCFG1
18 DATA18 70 ADDR10 122 FLAG2 174 TDO
19 VDD 71 GND 123 FLAG1 175 DAI4
20 GND 72 VDD 124 FLAG0 176 DAI2
21 DATA17 73 GND 125 DAI20 177 DAI3
22 VDD 74 IOVDD 126 GND 178 DAI1
23 GND 75 ADDR11 1 2 7 VDD 179 IOVDD
24 VDD 76 ADDR12 128 GND 180 GND
25 GND 7 7 ADDR13 129 IOVDD 181 VDD
26 DATA16 78 GND 130 DAI19 18 2 GND
27 DATA15 79 VDD 131 DAI18 183 DPI14
28 DATA14 80 AVSS 132 DAI17 184 DPI13
29 DATA13 81 AVDD 133 DAI16 185 DPI12
30 DATA12 82 GND 134 DAI15 186 DPI11
31 IOVDD 83 CLKIN 135 DAI14 187 DPI10
32 GND 8 4 XTAL2 136 DAI13 188 DPI9
33 VDD 85 IOVDD 137 DAI12 189 DPI8
34 GND 86 GND 138 VDD 190 DPI7
35 DATA11 87 VDD 139 IOVDD 191 IOVDD
36 DATA10 88 ADDR14 140 GND 192 GND
37 DATA9 89 GND 141 VDD 193 VDD
38 DATA8 90 IOVDD 142 GND 194 GND
39 DATA7 91 ADDR15 143 DAI11 195 DPI6
40 DATA6 92 ADDR16 144 DAI10 196 DPI5
41 IOVDD 93 ADDR17 145 DAI8 197 DPI4
42 GND 94 ADDR18 146 DAI9 198 D PI3
43 VDD 95 GND 147 DAI6 199 DPI1
44 DATA4 96 IOVDD 148 DAI7 200 DPI2
45 DATA5 97 ADDR19 149 DAI5 201 CLKOUT
46 DATA2 98 ADDR20 150 IOVDD 202 R E SET
47 DATA3 99 ADDR21 151 GND 203 IOVDD
48 DATA0 100 ADDR23 152 VDD 204 GND
49 DATA1 101 ADDR22 153 GND 205 DATA30
50 IOVDD 102 M S1
154 V D D 206 DATA31
51 GND 103 MS0
155 GND 207 DATA29
52 VDD 104 VDD 156 VDD 208 VDD

Denon AVR-791 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Audyssey Technologies	Audyssey MultEQ, Audyssey Dynamic Volume, Audyssey Dynamic EQ
4K Pass-Through	No
Signal-To-Noise Ratio	100 dB
HDMI Switching	Yes
Input Sensitivity	200 mV
THD	0.08%
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
Tuner Bands	AM/FM
Preset Station Qty	56
Auto Preset Memory	Yes
HDMI Pass-Through	Yes
Frequency Response	10Hz-100kHz
Power Output	90 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Dolby Technologies	Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Neo:6
Response Bandwidth	10 - 100000 Hz
Input Impedance	47 kΩ
Audio D/A Converter	24-bit / 192kHz
DSP Presets	Rock Arena, Jazz Club, Mono Movie, Matrix, Virtual, Game
Tuning Range	AM: 520 - 1710 kHz, FM: 87.5 - 108 MHz
Connector Type	HDMI
Amplifier Output Details	90W x 7 (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Conversion	Yes (Composite to HDMI)
