Denon AVR-791 Service Manual

23

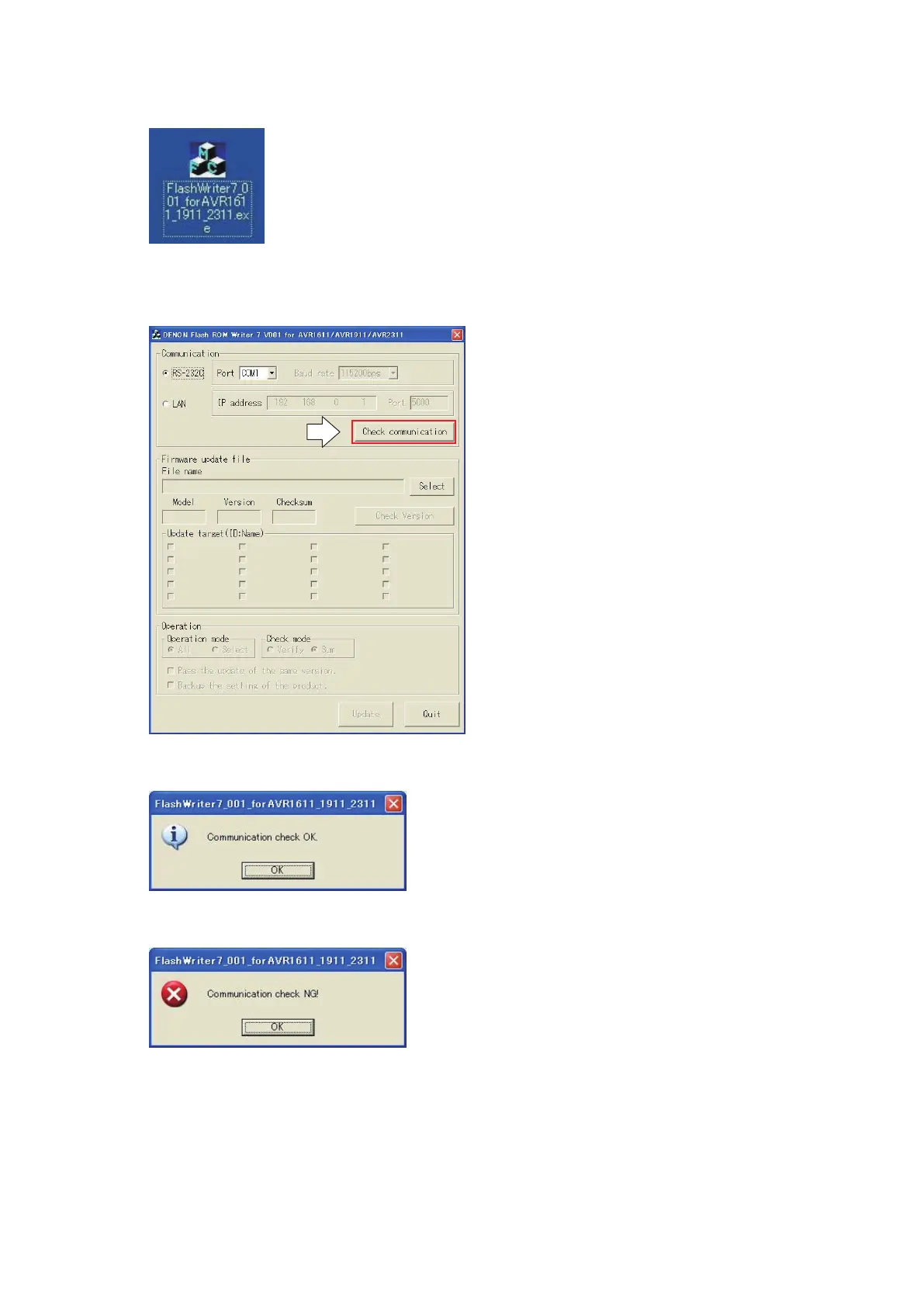

4. Run the DENON Flash ROM Writer
Run the “FlashWriter7_001_forAVR1611_1911_2311.exe” on desktop of PC.
5. Communication check
(1) Click the “Check communication” button.
(2) When connection is good, then you can see the “Communication check OK.” message.
(3) If connection is not good, then you can see the “Communication error!” message.
Please conrm the following
(a) Check the connection of the AV receiver/amplier and PC. (refer to “2.Connection to AV …” )
(b) Check the operation mode of the AV receiver/amplier. (refer to “3.Turn on the AV …”)
(c) Check the selection of the RS-232C port number of PC.

Denon AVR-791 Specifications

General

Number of Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Audyssey Technologies	Audyssey MultEQ, Audyssey Dynamic Volume, Audyssey Dynamic EQ
4K Pass-Through	No
Signal-To-Noise Ratio	100 dB
HDMI Switching	Yes
Input Sensitivity	200 mV
THD	0.08%
Surround Sound Effects	Yes
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	7
Tuner Bands	AM/FM
Preset Station Qty	56
Auto Preset Memory	Yes
HDMI Pass-Through	Yes
Frequency Response	10Hz-100kHz
Power Output	90 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Dolby Technologies	Dolby Digital Plus, Dolby TrueHD
DTS Technologies	DTS, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Neo:6
Response Bandwidth	10 - 100000 Hz
Input Impedance	47 kΩ
Audio D/A Converter	24-bit / 192kHz
DSP Presets	Rock Arena, Jazz Club, Mono Movie, Matrix, Virtual, Game
Tuning Range	AM: 520 - 1710 kHz, FM: 87.5 - 108 MHz
Connector Type	HDMI
Amplifier Output Details	90W x 7 (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Conversion	Yes (Composite to HDMI)
