Denon AVR-791

11
4. HDMI UNIT ASSY

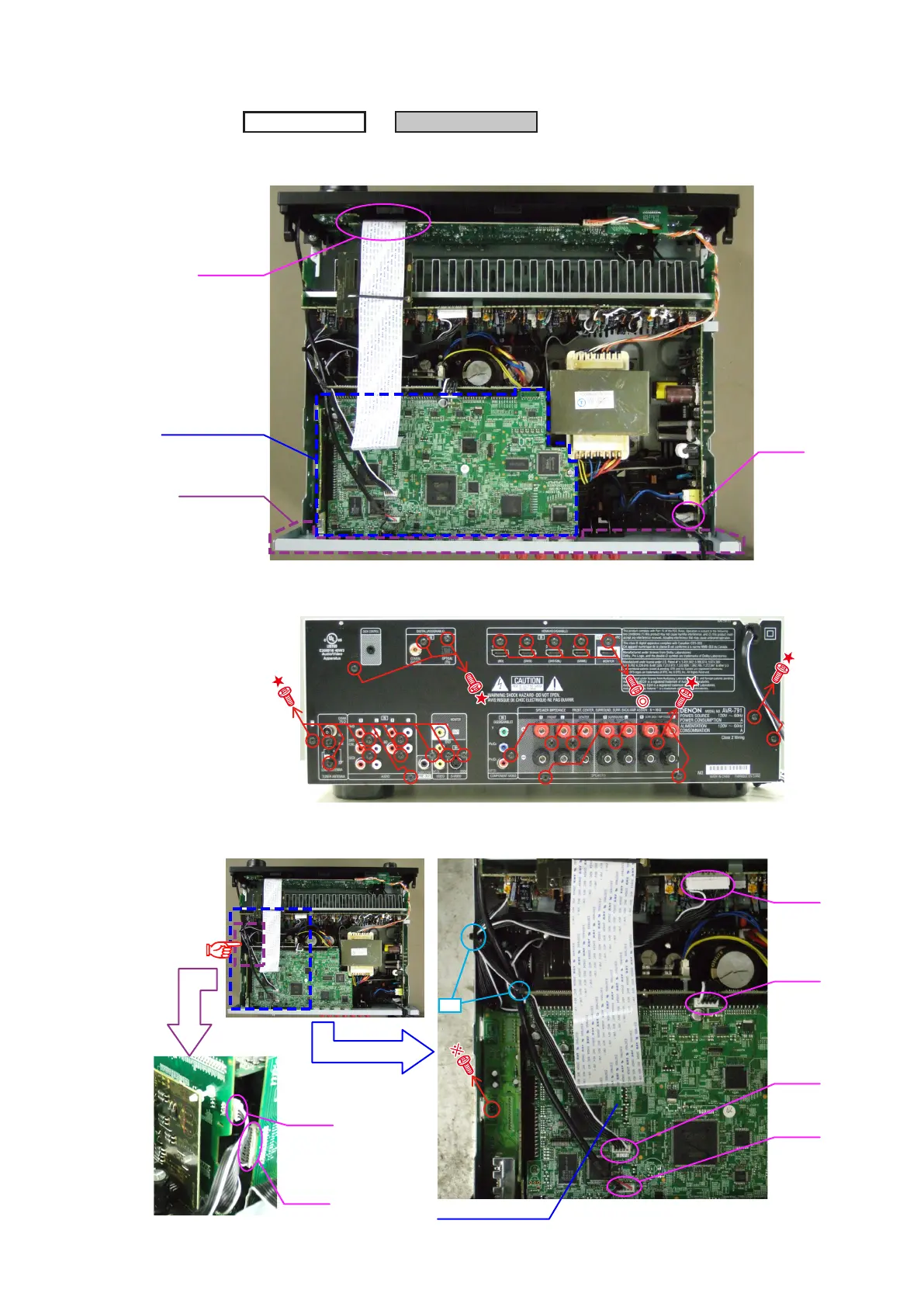

(1) DisconnecttheconnectorwireandFFCcable.
(2) Removethescrews,thenremovetheBACKPANEL.
(3) Cutthewireclampband,thendisconnecttheandconnectorwires.Removethescrew.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
BACK PANEL
HDMI UNIT ASSY
CX100
FFC cable
Direction of photograph: A
CP401
N2501
N2706
N4401
HDMI UNIT ASSY
cut
CP13B
CP13A
