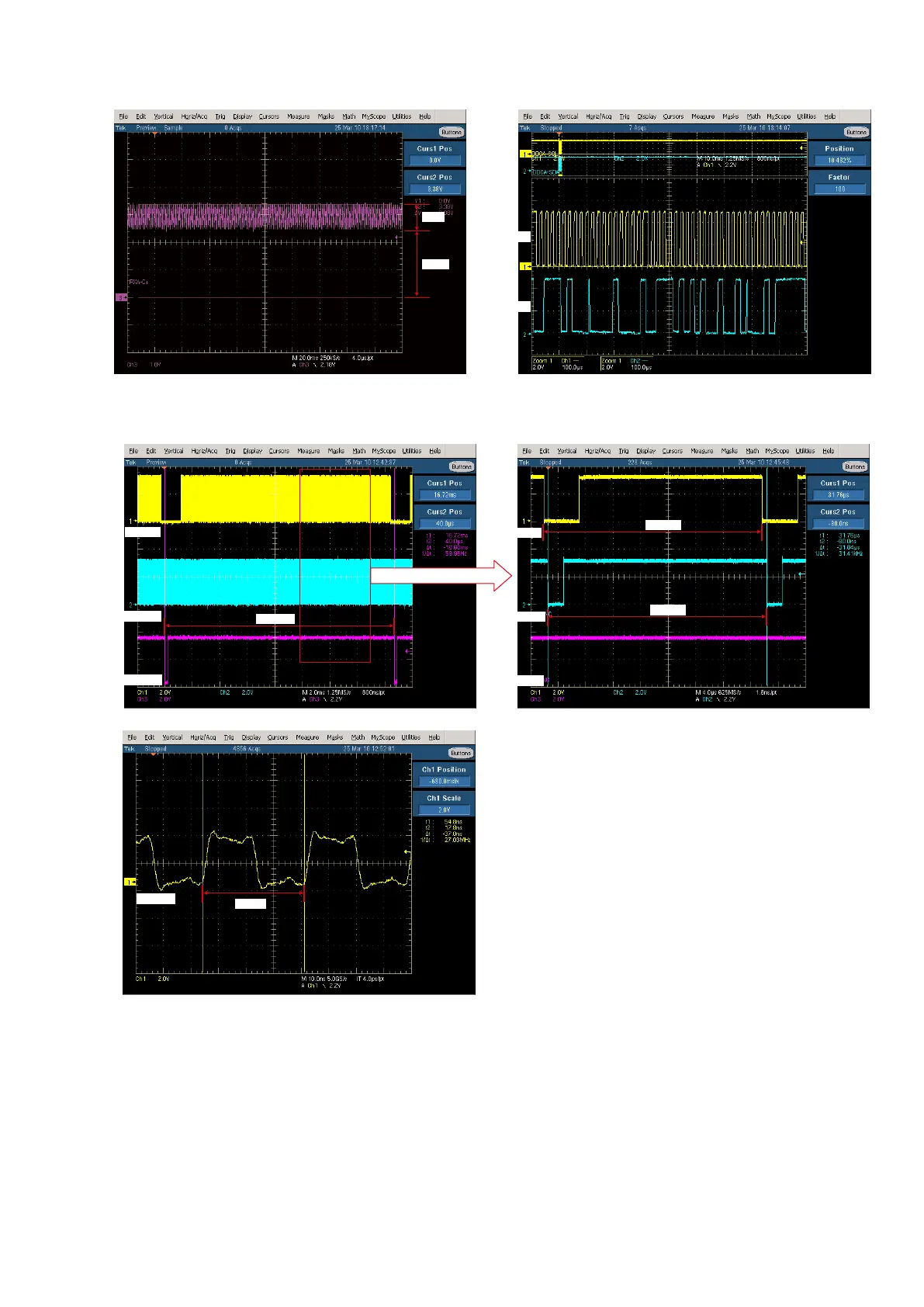

DDC_CLK/DDC_DATA/TMDS(1,3,4,6,7,9,10,12pin) : Check item (15),(17)

IPINDE/IPINVSYNC/IPINHSYNC/IPINPCK : Check item (21)

0.9V

2.48V

DDC_CLK

DDC_DATA

IPINDE

16.68ms

IPINHSYNC

IPINVSYNC

IPINHSYNC

IPINVSYNC

31.84us

31.76us

IPINPCK

37.0ns
