Denon AVR-S700W Service Manual

TECHNICAL SPECIFICATIONS FOR AVR-S700W
n
Audio section
• Power amplifier
Rated output
:
Front :
75W+75W（8Ω、20Hz～20kHz with 0.08％ T.H.D.）
110W+110W（6Ω、1kHz with 0.7％ T.H.D）
Center :
75W（8Ω、20Hz～20kHz with 0.05％ T.H.D.）
110W（6Ω、1 kHz with 0.7 % T.H.D.)
Surround :
75W+75W（8Ω、20 Hz – 20 kHz with 0.08% T.H.D.)
110W+110W（6Ω、1 kHz with 0.7 % T.H.D.)
Surround back:
75W+75W（8Ω、20 Hz – 20 kHz with 0.08% T.H.D.)
110W+110W（6Ω、1 kHz with 0.7 % T.H.D.)
Output connectors : 4～16Ω
n
Analog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz – 100 kHz — +1, –3 dB（Direct mode）
S/N : 98 dB（IHF–A weighted, Direct mode）
n
Video section
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
Reception frequency range : FM 87.5 MHz – 107.9 MHz
AM 520 kHz – 1710 kHz
Effective sensitivity : FM 1.2μV（12.8dBf）
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF–A weighted, Direct mode)
STEREO ― 67 dB (IHF–A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 – 11 ch
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for E3) : AC 120 V, 60 Hz
Power consumption : 400W
Power consumption in standby mode : 0.1W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W

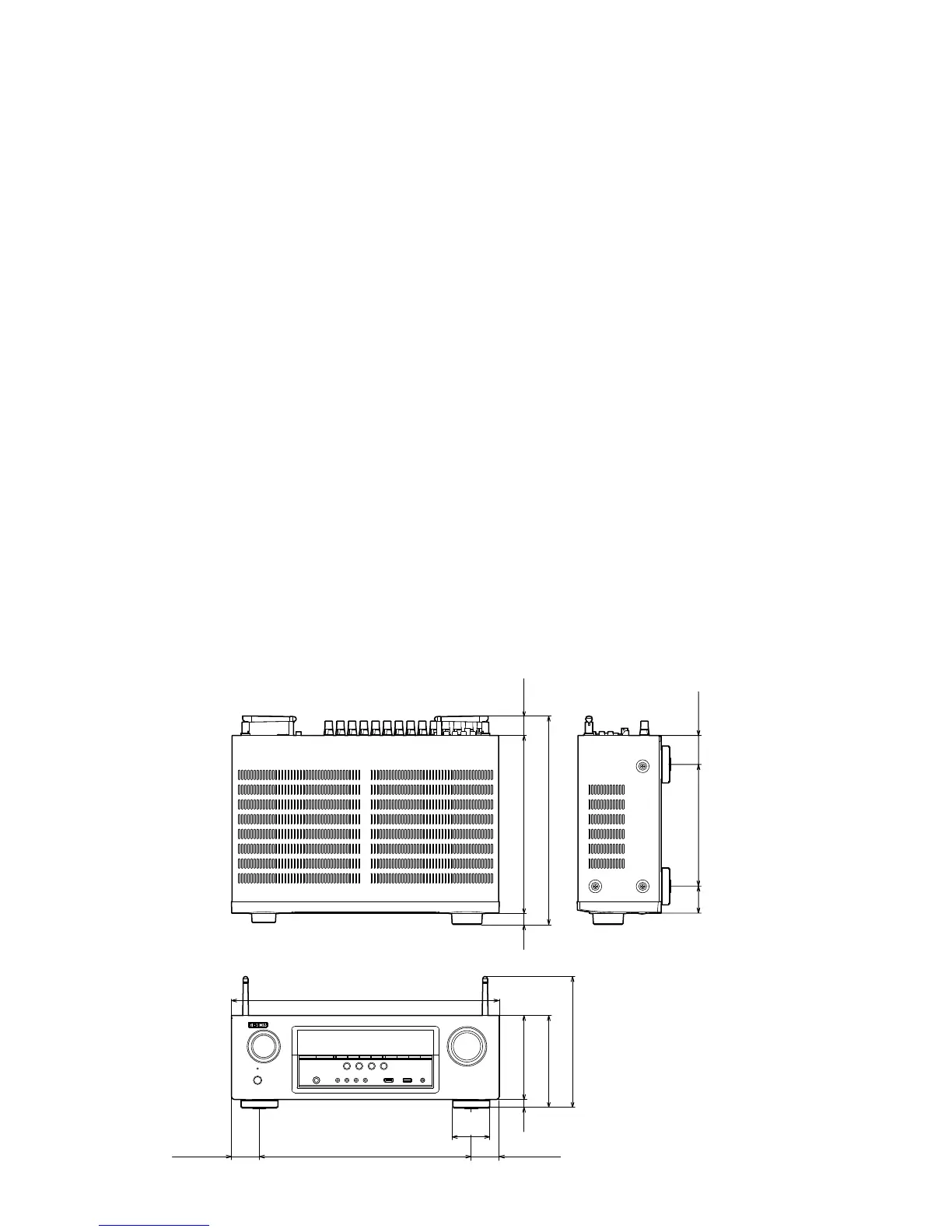

DIMENSION FOR AVR-S700W
Unit
：
Unit : in. (mm) Weight
：
18 lb 15 oz (8.6 kg)
7 3/4 (197)
1 47/64
(44)
1 27/32
(47)
17 3/32 (434)
19/32
(15)
5 23/64 (136) 5 15/16 (151)
8 15/32 (215)
13 35/64 (344)
2 23/64
(60)
1 49/64 (45) 1 49/64 (45)
11 11/32 (288) 13 11/32 (339)
3/4
(19)
1 7/32
(32)
10

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
