2. DIGITAL PCB
Proceeding : TOP COVER
DIGITAL PCB

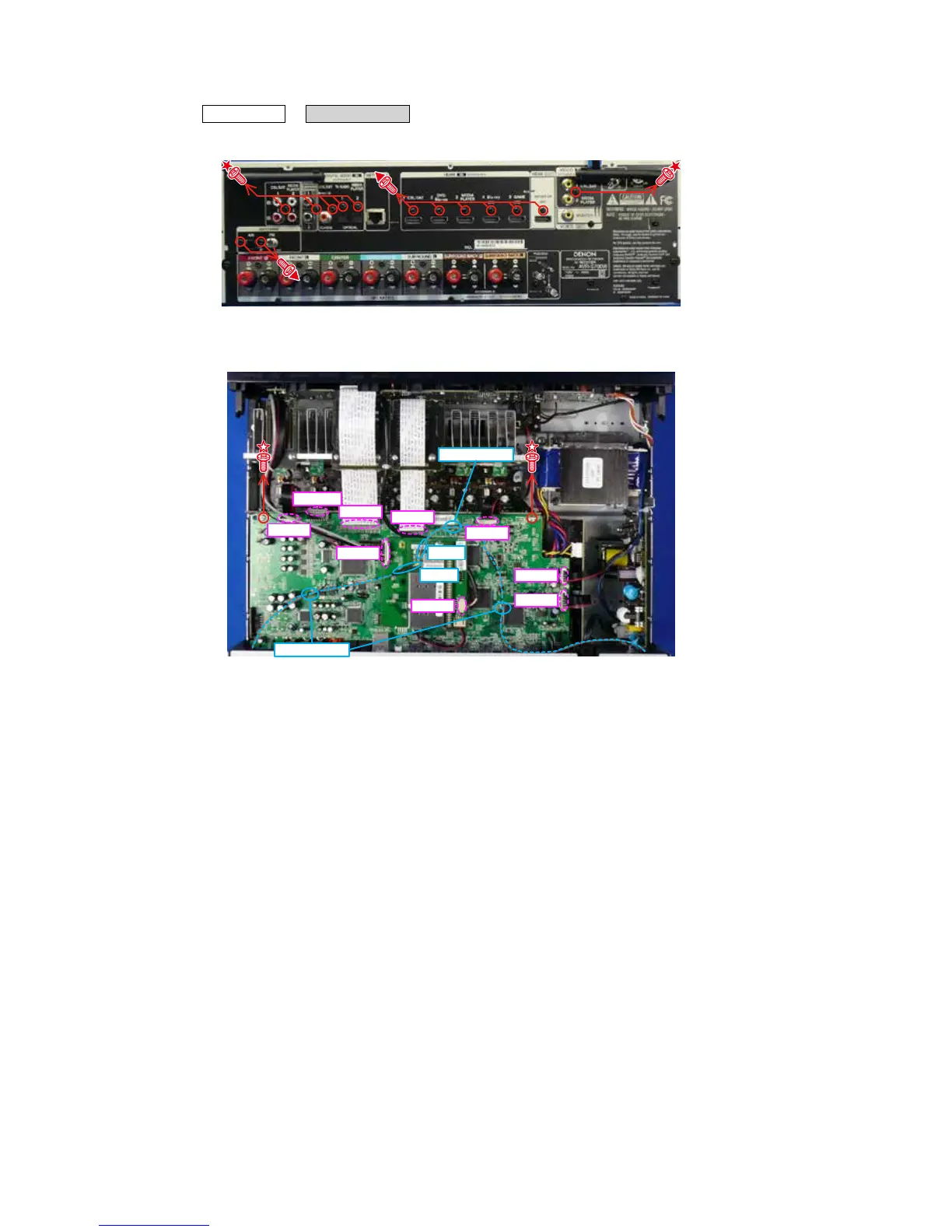

(1) Remove the screws.
(2) Remove the connector wire and FFC. Remove the screws.
Front side
FFC
CN762
CN761
FFC
CN619
CN914
CN741
CN823
CN8221
CON2
CON1
STYLE PIN
STYLE PIN
14
