Denon AVR-S700W Service Manual

SERVICE JIGS
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.

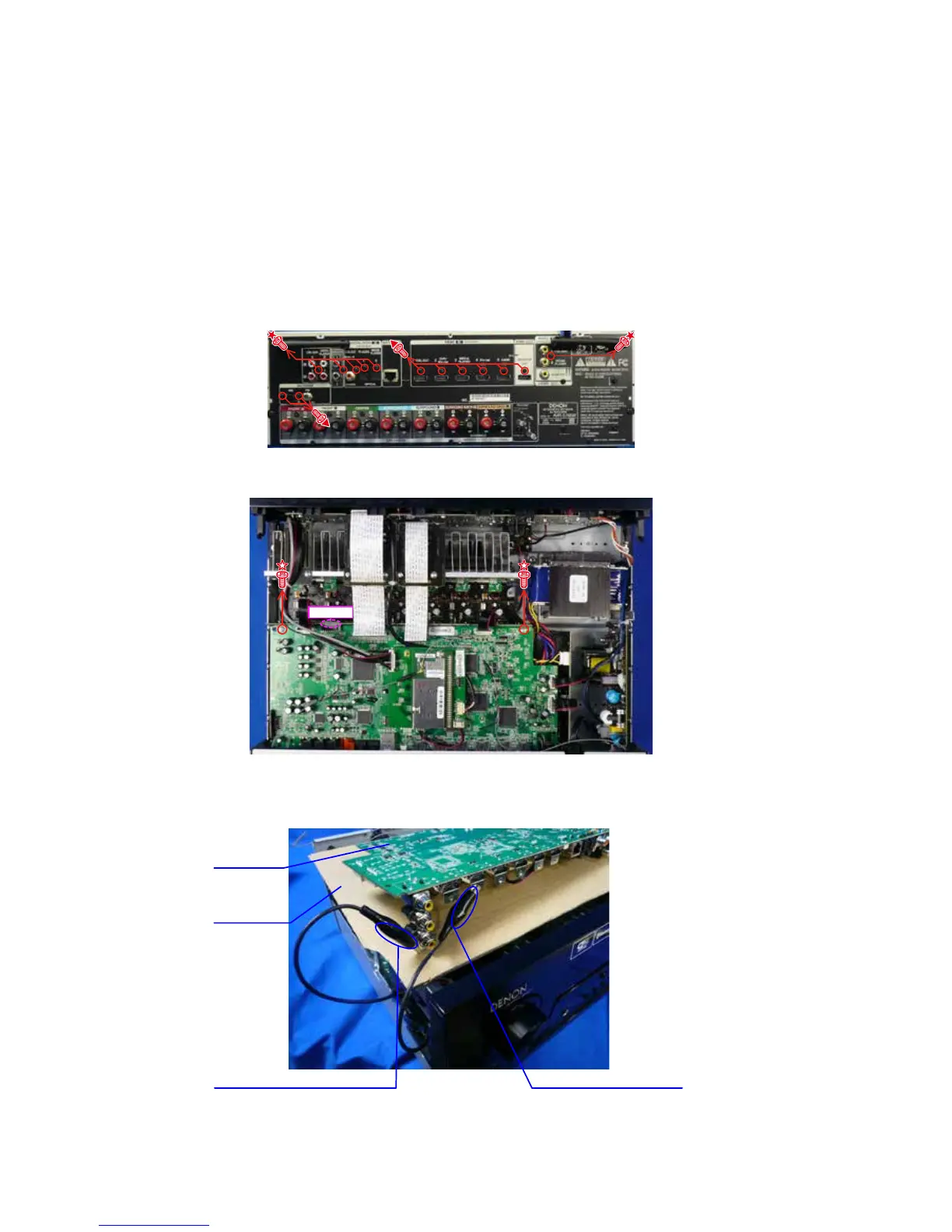

• Connection of Jig for DIGITAL PCB
-Items to Be Prepared-
8U- 110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Not supplied) : 1sheet
Ground lead (Not supplied) : 2 pc
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB. Remove the screws.
(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
Front side
CN8221
PCB DIGITAL
CHASSIS-COMPOSIT CONNECTOR CHASSIS-HDMI CONNECTOR
Insulation sheet
52

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
