Denon AVR-S700W Service Manual

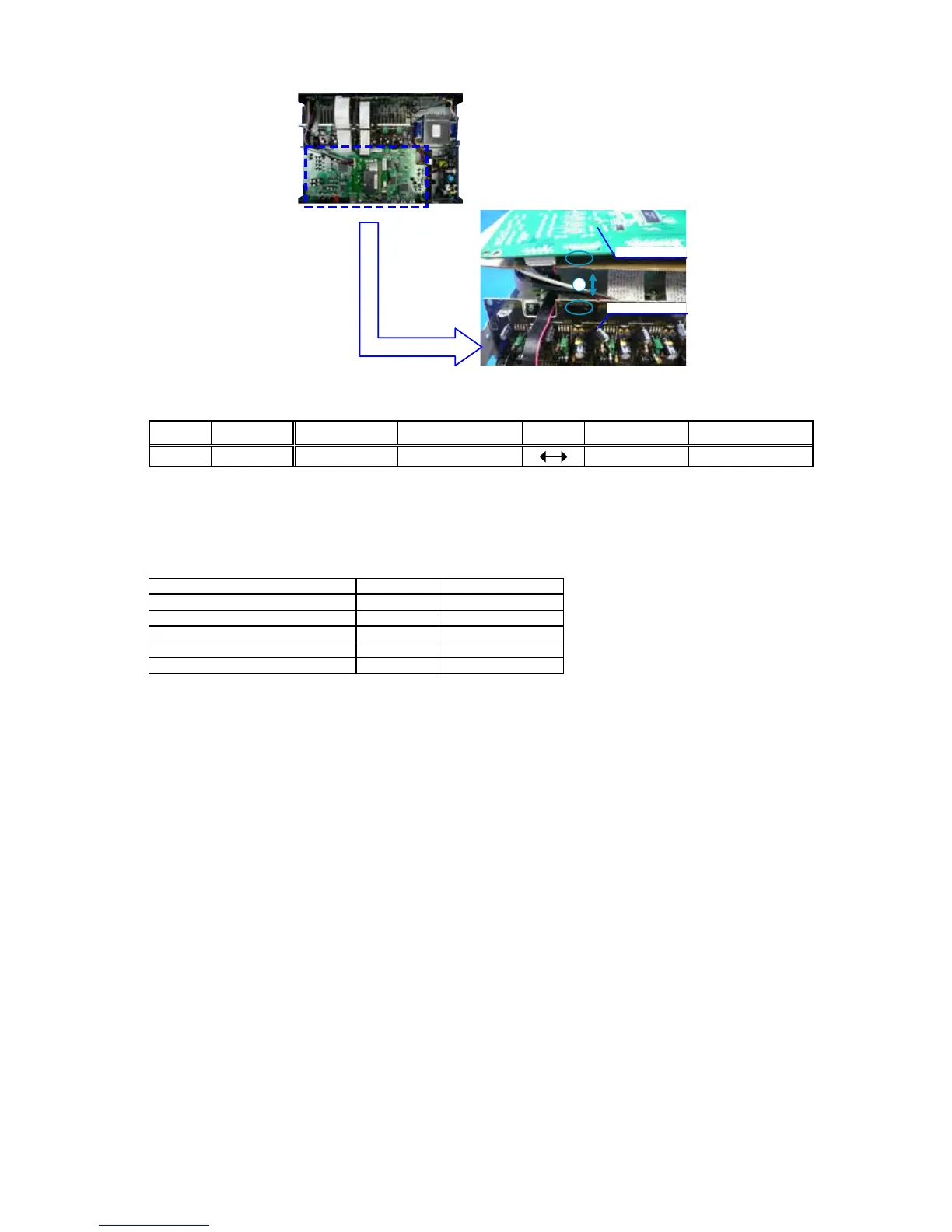

(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP CN822 DIGITAL
Procedure after Replacing the WLAN MODULE.
When replaced of the WLAN MODULE(CX870-3B-D60), conrm contents of the following.
(1) Part numbers differ depending on the region of the WLAN MODULE.
Be sure to follow the table below when replacing the parts.
MODULE Name Remarks Part No.
CX870 MODULE ASSY (E3) X1100E3 943189100770D
CX870 MODULE ASSY (E2/E1) E2/E1 943189100780D
CX870 MODULE ASSY (E1C) E1C 943189100790D
CX870 MODULE ASSY (JP) K 943189100800D
CX870 MODULE ASSY (S700S) S700W 943189100760D
(2) With DPMS or USB memory, update rmware.
See "
Firmware Update Procedure
"(54 page)"
1.Updating by USB
" or "
2.Updating by DPMS
"
PCB DIGITAL
PCB DIFF-AMP
1
53

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
