Denon AVR-S700W Service Manual

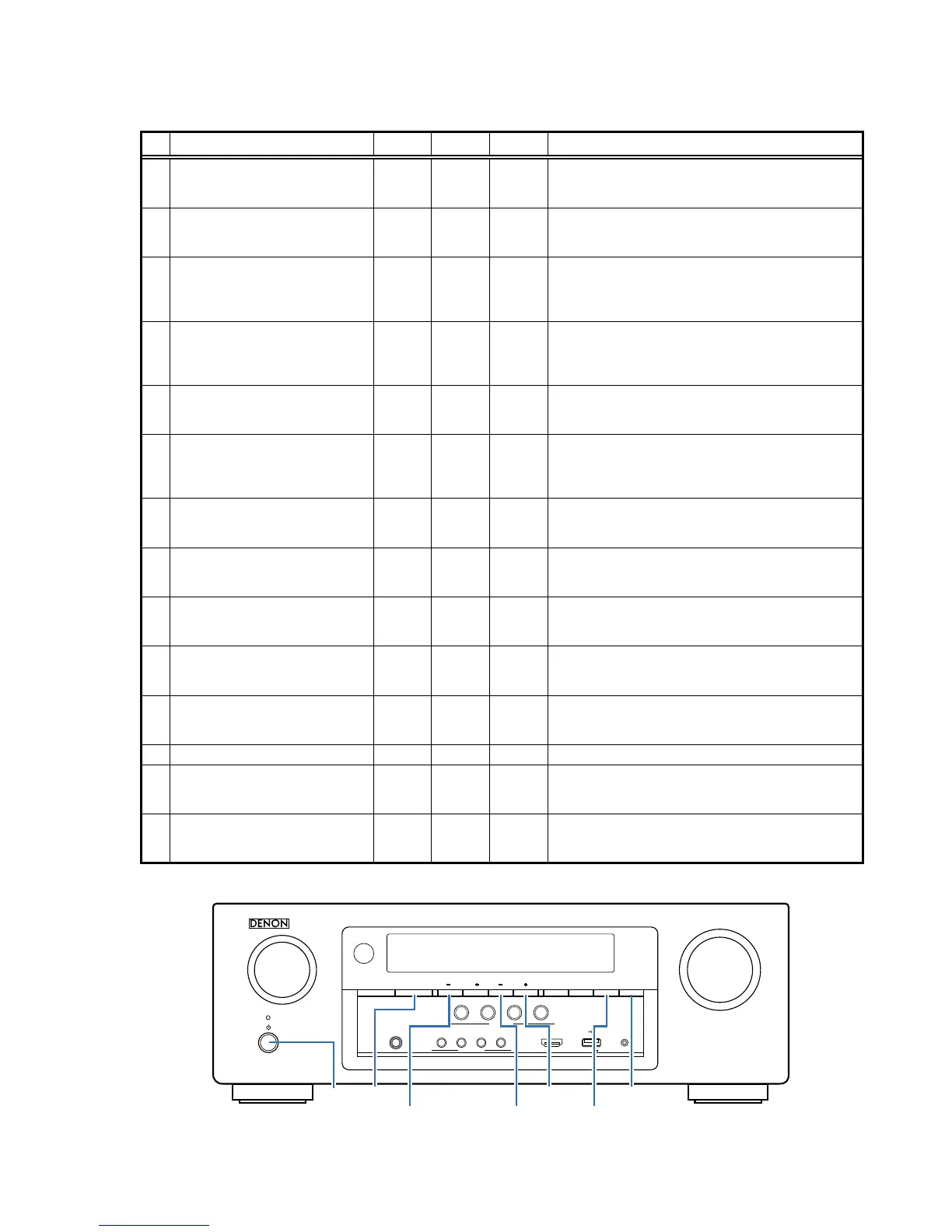

Special Mode Conguration Buttons (for AVR-S700W)
b
No. 1 - 13 : Hold down buttons A, B and C at the same time and press the power button to turn on the power.
b
No. 14
：
Press the A and B buttons simultaneously while inserting the AC plug to turn the power on.
No. Mode Button A Button B Button C Contents
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS –
Displays the version of rmware such as the main rmware
or DSP, etc. Errors that have occurred are displayed. (See
18 page)
2 Protection History Display Mode
TUNER
PRESET
CH +
TUNE - TUNE +
Displays the protection occurrence history.
(See 45 page)
3
Check the Video/Audio pass
Mode
↑ ↑ ↑
This is a special mode for service conrmation used during
repair work to simplify the conrmation work for the Audio
channel/video channel.
(See 25 page)
4 Remote ID Setup Mode
↑ ↑ ↑
If there are multiple DENON AV receivers in the same area,
this mode stops the other AV receivers from being operated
concurrently with this device.
(See 49 page)
5 TUNER step
↑ ↑ ↑
Enables reception STEP of the ANALOG TUNER to be
changed.
(See 48 page)
6 Operation INFO
↑ ↑ ↑
Displays the total operating time of the set, number of times
the power was switched on, and number of occurrences of
each protection.
(See 47 page)
7
User Initialization mode
(Settings for the Installer Setup are
not initialized.)
TUNER
PRESET
CH -
TUNER
PRESET
CH +
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
8
Factory Initialization mode
(Initialization includes settings for the
Installer Setup.)
TUNER
PRESET
CH +
TUNE - -
Initializes backup data.
(Initialization includes settings for the Installer Setup.)
9
Mode for preventing remote
control acceptance
ZONE2
SOURCE
TUNER
PRESET
CH +
-
Start this unit in the PANEL/REMOTE LOCK selection
mode so that PANEL LOCK and Remote Lock can be
selected as ON or OFF. (See 22 page)
10
PANEL LOCK mode
(with Volume)
↑ ↑ -
This function prevents reception of all keys/encoders
(including VOLUME) other than the power supply button on
the Front Panel.
11
PANEL LOCK mode
(without Volume)
↑ ↑ -
This function prevents reception of all keys/encoders other
than the power supply button and VOLUME encoder on the
Front Panel.
12 Panel Lock Release
↑ ↑ -
Function for Releasing the PANEL LOCK
13 Protection pass mode
ZONE2
SOURCE
TUNER
PRESET
CH +
TUNE +
Enables the power to be turned on when protection
detection is in the stopped state.
(See 50 page)
14 Forced USB All Device Write Mode
TUNE +
ZONE2
SOURCE
-
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See 56 page)
MASTER VOLUM E
SOURCE SELEC T
BAND MODE DIMMER STATUS
TUNEZONE2 ON/OFF ZONE2 SOURCE
TUNER
PRESET CH
CB L/S A T
3
4
ONLINE
1
GAME
2
DVD/Blu-ray
QUICK SELECT
SETUP MICAUX - HDMI
5V / 1A
PHONES
MOVIE MUSIC GAME PURE
SOUND MODE
TUNE
－
DIMMER
STATUSZONE2
SOURCE
TUNE +
X
TUNER
PRESET CH +
TUNER
PRESET CH
－
17

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
