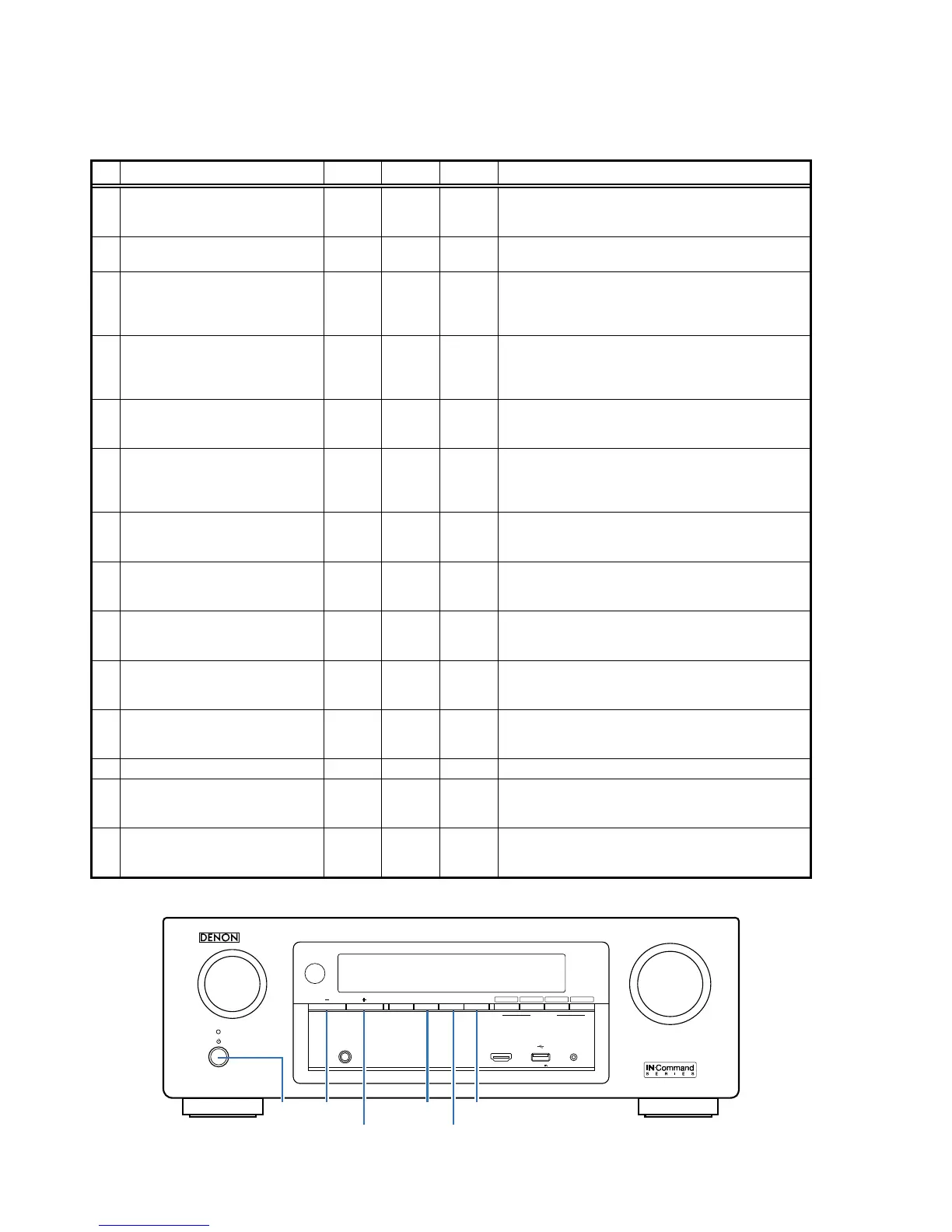

SPECIAL MODE
Special Mode Conguration Buttons (for AVR-X1100W)
b
No. 1 - 13 : Hold down buttons A, B and C at the same time and press the power button to turn on the power.
b
No. 14
：
Press the A and B buttons simultaneously while inserting the AC plug to turn the power on.
No. Mode Button A Button B Button C Contents
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS –
Displays the version of rmware such as the main rmware
or DSP, etc. Errors that have occurred are displayed. (See
18 page)
2 Protection History Display Mode
ZONE2
SOURCE
DIMMER STATUS
Displays the protection occurrence history.
(See 45 page)
3
Check the Video/Audio pass
Mode
↑ ↑ ↑
This is a special mode for service conrmation used during
repair work to simplify the conrmation work for the Audio
channel/video channel.
(See 25 page)
4 Remote ID Setup Mode
↑ ↑ ↑
If there are multiple DENON AV receivers in the same
area, this mode stops the other AV receivers from being
operated concurrently with this device.
(See 49 page)
5 TUNER step
↑ ↑ ↑
Enables reception STEP of the ANALOG TUNER to be
changed.
(See 48 page)
6 Operation INFO
↑ ↑ ↑
Displays the total operating time of the set, number
of times the power was switched on, and number of
occurrences of each protection.
(See 47 page)
7
User Initialization mode
(Settings for the Installer Setup are
not initialized.)
TUNER
PRESET
CH -
TUNER
PRESET
CH +
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
8
Factory Initialization mode
(Initialization includes settings for the
Installer Setup.)
ZONE2
SOURCE
DIMMER -
Initializes backup data.
(Initialization includes settings for the Installer Setup.)
9
Mode for preventing remote
control acceptance
TUNER
PRESET
CH +
ZONE2
SOURCE
-
Start this unit in the PANEL/REMOTE LOCK selection
mode so that PANEL LOCK and Remote Lock can be
selected as ON or OFF. (See 22 page)
10
PANEL LOCK mode
(with Volume)
↑ ↑ -
This function prevents reception of all keys/encoders
(including VOLUME) other than the power supply button
on the Front Panel.
11
PANEL LOCK mode
(without Volume)
↑ ↑ -
This function prevents reception of all keys/encoders other
than the power supply button and VOLUME encoder on
the Front Panel.
12 Panel Lock Release
↑ ↑ -
Function for Releasing the PANEL LOCK
13 Protection pass mode
TUNER
PRESET
CH +
ZONE2
SOURCE
STATUS
Enables the power to be turned on when protection
detection is in the stopped state.
(See 50 page)
14 Forced USB All Device Write Mode
TUNER
PRESET
CH +
STATUS -
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See 56 page)
