Denon AVR-S700W Service Manual

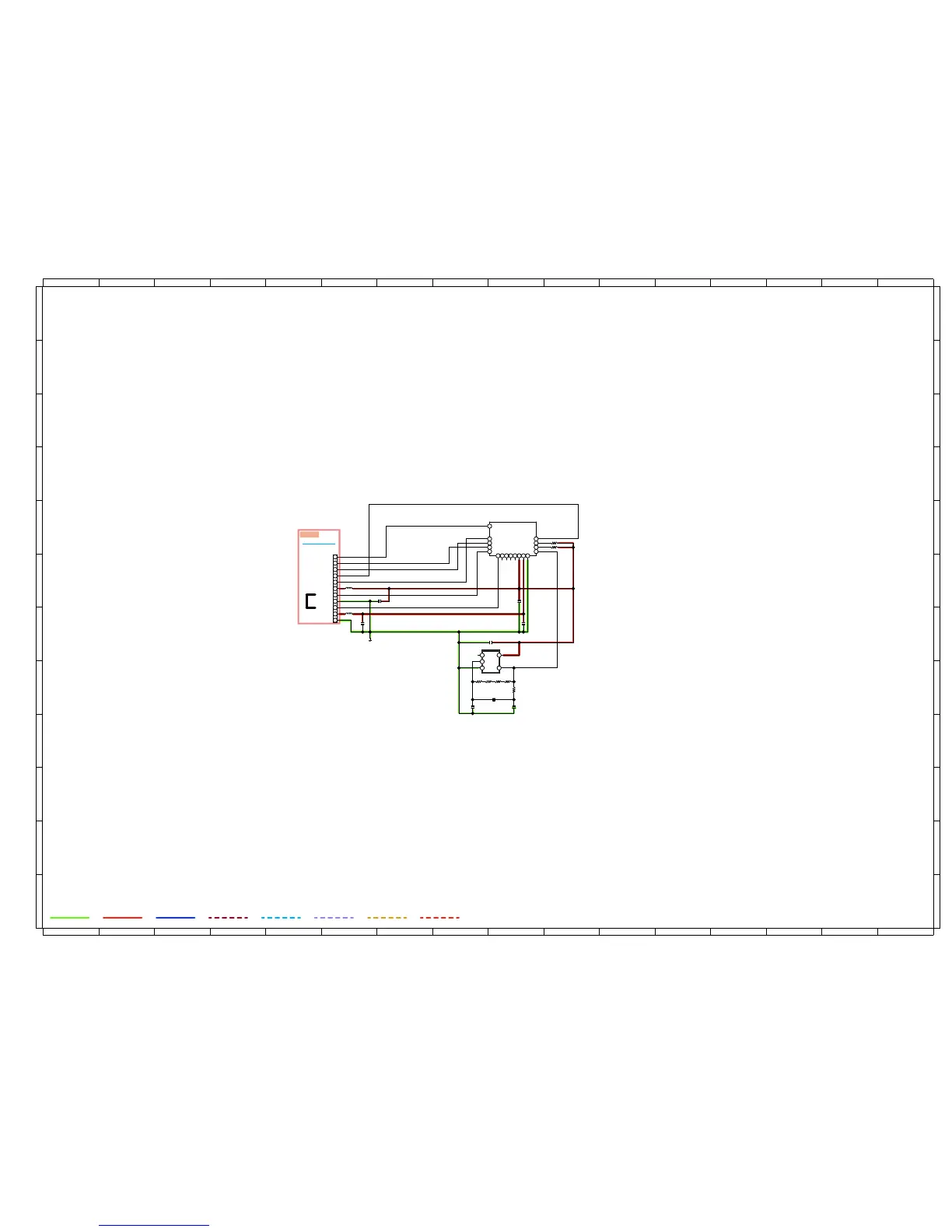

SCHEMATIC DIAGRAMS (14/19)
SCH14_BLUETOOTH
GND LINE POWER- LINE POWER+ LINE ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL ANALOG VIDEO STBY POWER
BLUETOOTH PART
BLUETOOTH MODULE
6.3.3V
8.DGND
2.BT_EINT
3.WLAN_ACTIVE
4.BT_LDO_ON
5.BT_PRIORITY
7.RXD0
9.TXD0
1.BT_ACTIVE
BT_ACTIVE
BT/PRIORITY
UART_RX
WLAN_ACTIVE
BT_EI NT
UART_TX
PCM_SYNC
PCM_LRCK
PCM_DIN
PCM_DOUT
VIO
VDD
GND
CLK_32K
I2C_SDA
I2C_SCL
LDO_ON
10.3.6V
IN
OUT
SHIELD WIRE
11.DGND
17
16
15
14
131211109876
5
4
3
2
1
IC921
CNVIBT-06-02
R9203
10K
R9204
10K
11 10 9 8 7 6 5 4 3 2 1
BN921
3
OUT Y
IN A
GND
VCCNC
2
4
51
IC922
CVITC7SGU04FE
R9201
10M
R9202
470K
C9206
10P
C9207
10P
C9205
0.1uF
C9203
0.1uF
C9204
0.1uF
X9201
32
.768KHz
C9202
1uF
C9201
1uF
L9202
CB03YTYH600
L9201
CB03YTYH600
R9205
10M
R9206
1M
R9207
1M
GND3
BN921
TO CN916
113
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
