Denon AVR-S700W Service Manual

fig.13b
AUDIO IN
CEN
FR
FL
+
-
-
+
-
+

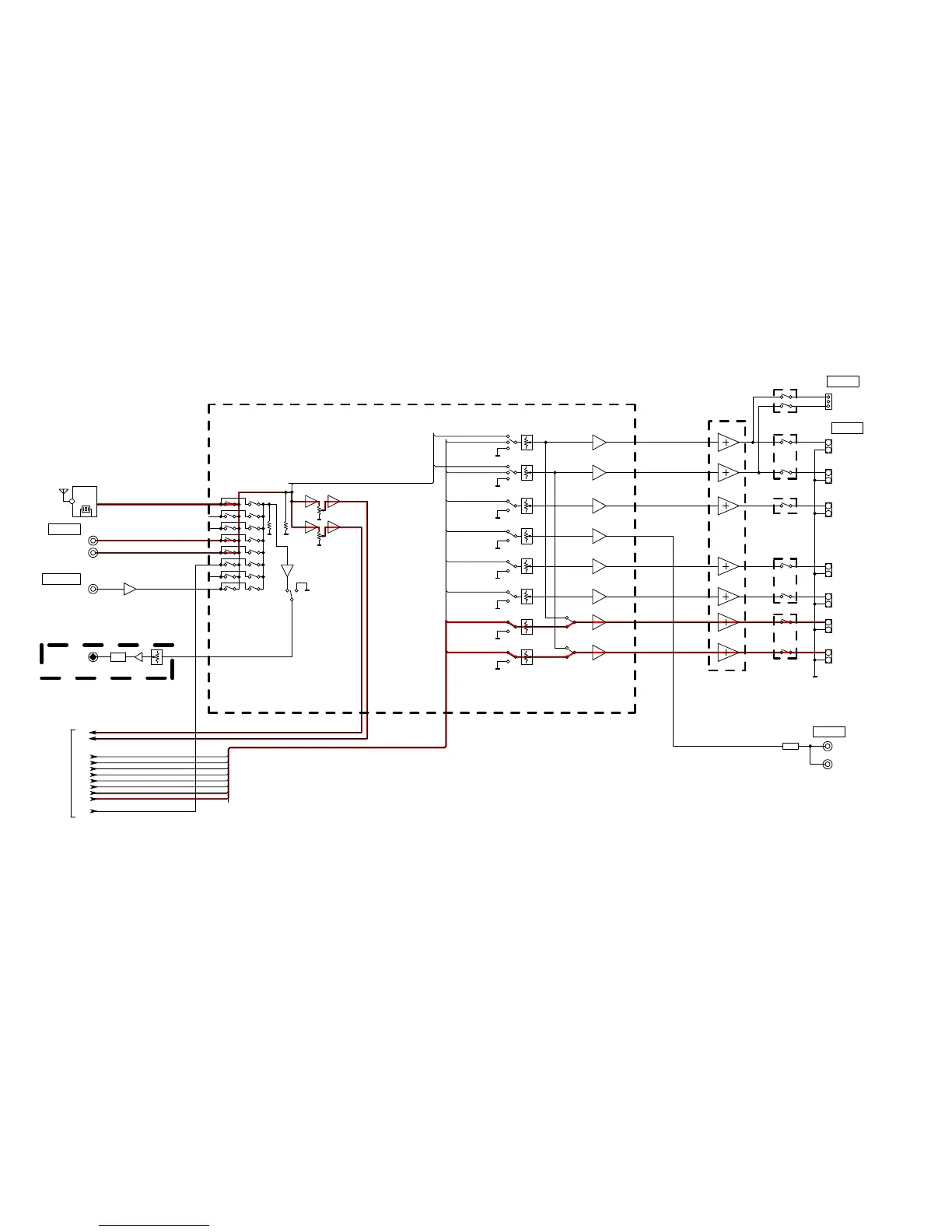

AVR-S700W/X1100W ANALOG AUDIO BLOCK
+
-
-
+
SL
SR
NJU72340A
VOL IC
SPK OUT
PRE OUT
MAIN
TUNER
CBL/SAT
MIC(AUTO SETUP)
SW1
MUTE
AUDYSSEY
Media Player
P-AMP
MUTE
DA_FL
DA_FR
DA_CEN
DA_SW
DA_SL
DA_SR
DA_SBL
DA_SBR
ANA_FL
ANA_FR
H/P L
GND
H/P R
H/P OUT
+
-
-
+
SBL
SBR
BD3812F
VOL IC
SW2
32.768kHz
FM/AM
DA01
DA02
DA03
DA04
DA05
DA06
DA03
DA04
DA05
DA06
DA07
DA08
ANA01
DA07
DA08
DA01
DA02
ANA01
ANA02
AD_FL
AD_FR
TO DIGITAL
AUDIO BLOCK
DA_FL
DA_FR
DA_CEN
DA_SW
DA_SL
DA_SR
NETWORK
ZONE2
AVR-X1100W E3 ONLY
DA_SBL
DA_SBR
(FL-H/FL-B/BI-AMP-FL/ZONE-FL)
(FR-H/FR-B/BI-AMP-FR/ZONE-FR)
44

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
