Denon AVR-S900W Service Manual

TECHNICAL SPECIFICATIONS FOR AVR-S900W
n
Audio section
• Power amplifier
Rated output
:
Front :
90W+90W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
125W+125W(6Ω, 1kHz with 0.7% T.H.D)
Center :
90W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
125W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
90W+90W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
125W+125W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
90W+90W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
125W+125W(6Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 4 - 16Ω
n
Analog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N : 100 dB(IHF-A weighted, Direct mode)
n
Video section
Input sensitivity/Input impedance : Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz - 60 MHz — 0, -3 dB
n
Tuner section
FM
Reception frequency range : FM 87.5 MHz - 107.9 MHz
AM 520 kHz - 1710 kHz
Effective sensitivity : FM 1.2μV(12.8dBf)
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF-A weighted, Direct mode)
STEREO ― 67 dB (IHF-A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 - 11 ch
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10 m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for E3) : AC 120 V, 60 Hz
Power consumption : 460W
Power consumption in standby mode : 0.1W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W
For purposes of improvement, specications and design are subject to
change without notice.

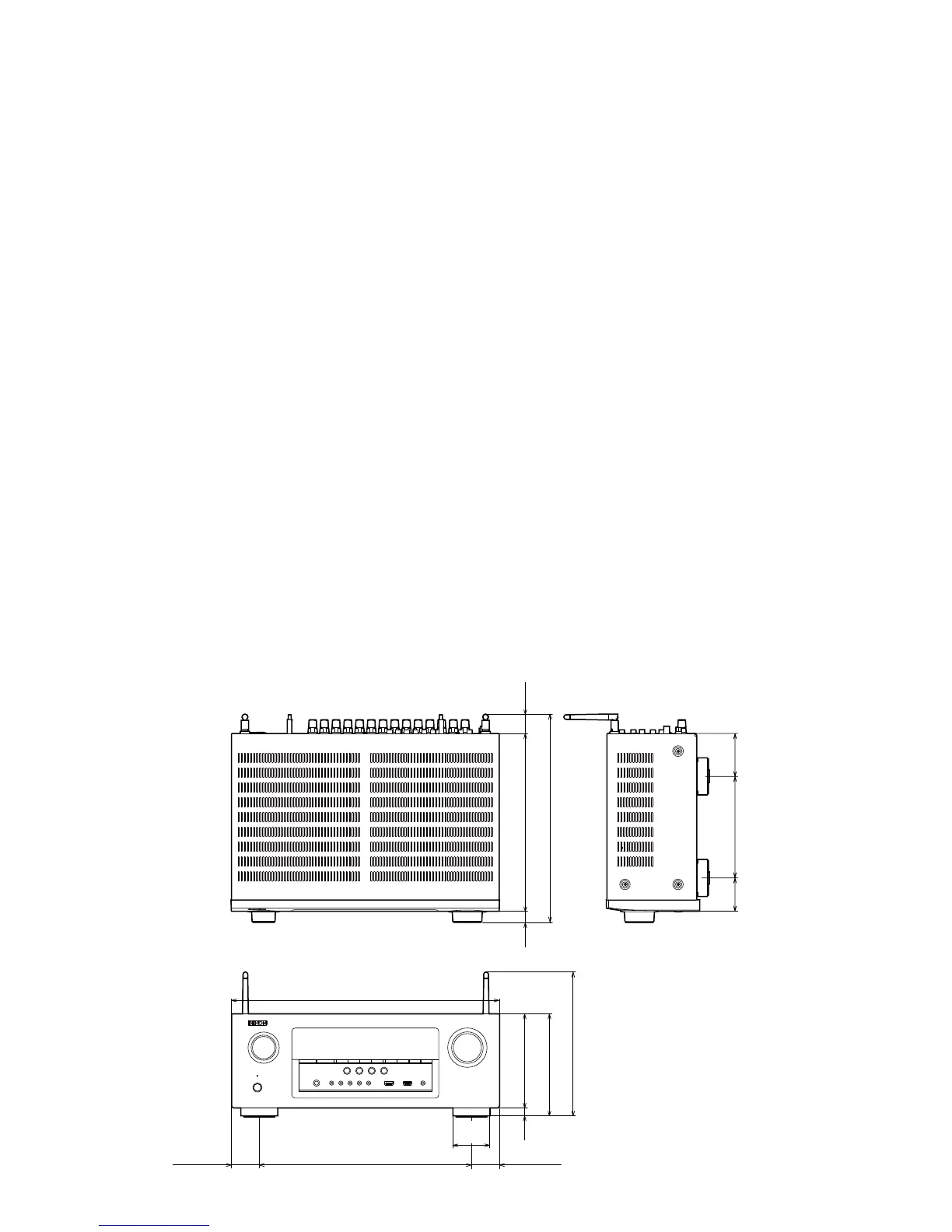

DIMENSION FOR AVR-S900W
Unit： Unit : in. (mm) Weight： 21 lb 6 oz (9.7 kg)
17 3/32 (434)
19/32
(15)
5 63/64 (152) 6 37/64 (167)
9 1/4 (235)
13 35/64 (344)
2 23/64
(60)
1 49/64 (45) 1 49/64 (45)
6 1/2 (165)
2 1/8
(54)
2 23/32
(69)
11 11/32 (288) 13 11/32 (339)
3/4
(19)
1 17/64
(32)
10

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
