Denon AVR-S900W Service Manual

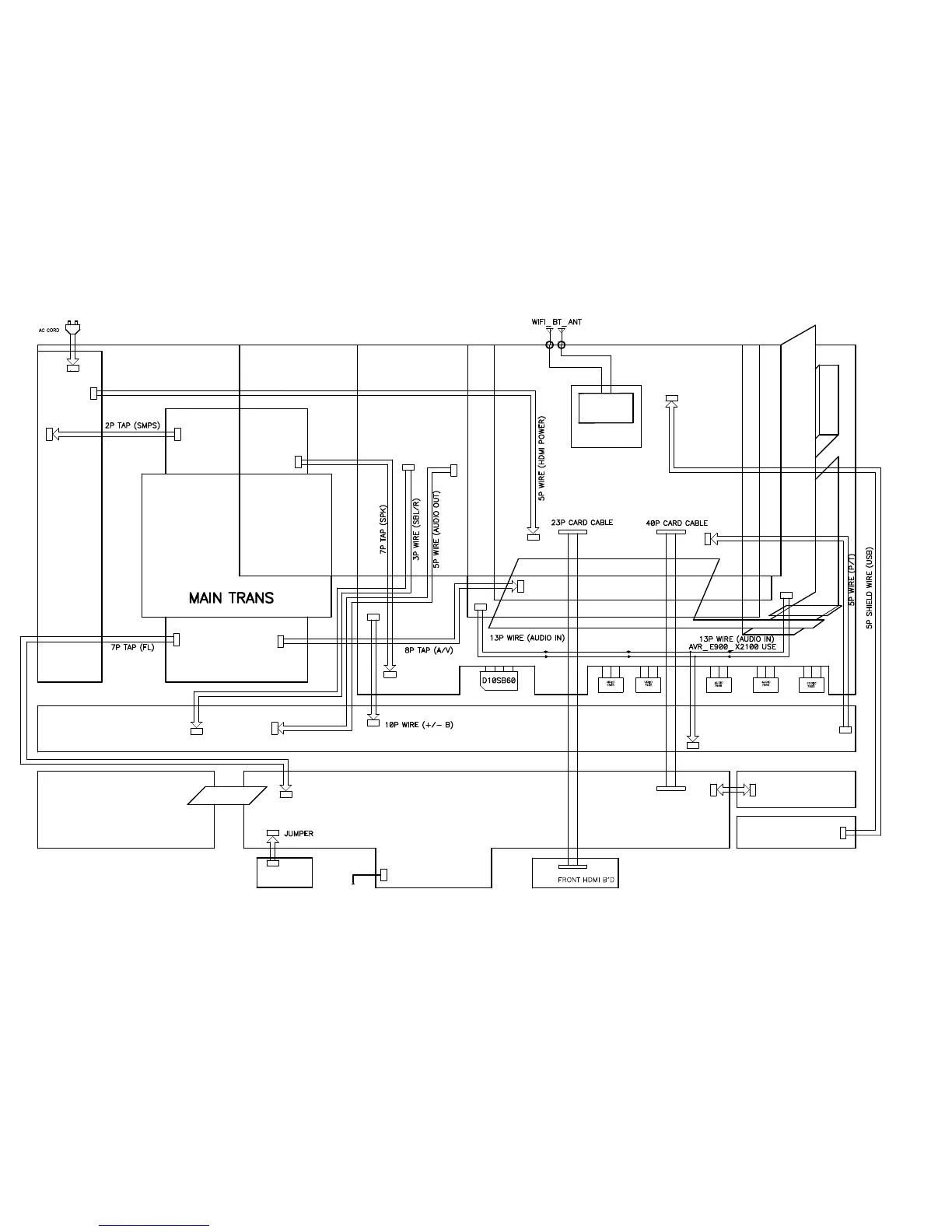

WIRING DIAGRAM
23P
SMPS B'D
40P
HDAM B'D
H/P B'D
CHASSIS
FRONT B'D
SPK B'D
VIDEO B'D
FRONT CNT B'D
HDMI B'D
MIC
(OTHER AVR1 ONLY)
CX870
MODULE
870 JUNCTION B'D
USB B'D
AUDIO IN B'D
TUNER PACK
V.AUX (OTHER AVR1 ONLY)
SELECT B'D
7CH AMP B'D
PRE_OUT B'D
VOLUME B'D
AVR_S900 / X2100 / OTHER AVR1 WIRE DIAGRAM
OTHER AVR1 ONLY USE
106

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
