Denon AVR-S900W Service Manual

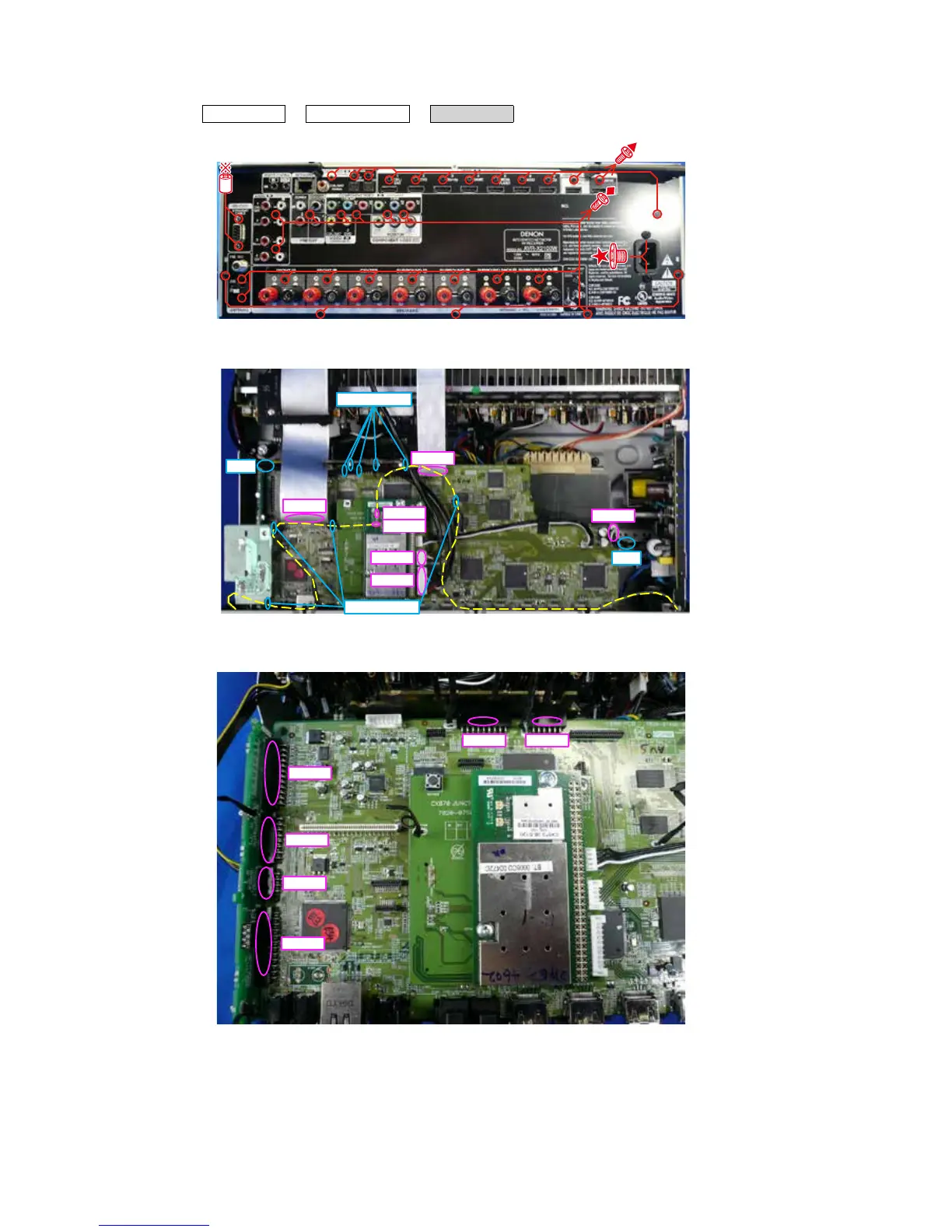

3. HDMI PCB
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC.
(3) Remove the connector wire.
Front side
FFC
FFC
N7005
N7002
CON1
CON2
N1029
CUT
STYLE PIN
CUT
STYLE PIN
Front side
N1033N1018
N1014
N1015
N1013
N1016
16

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
