Denon AVR-S900W Service Manual

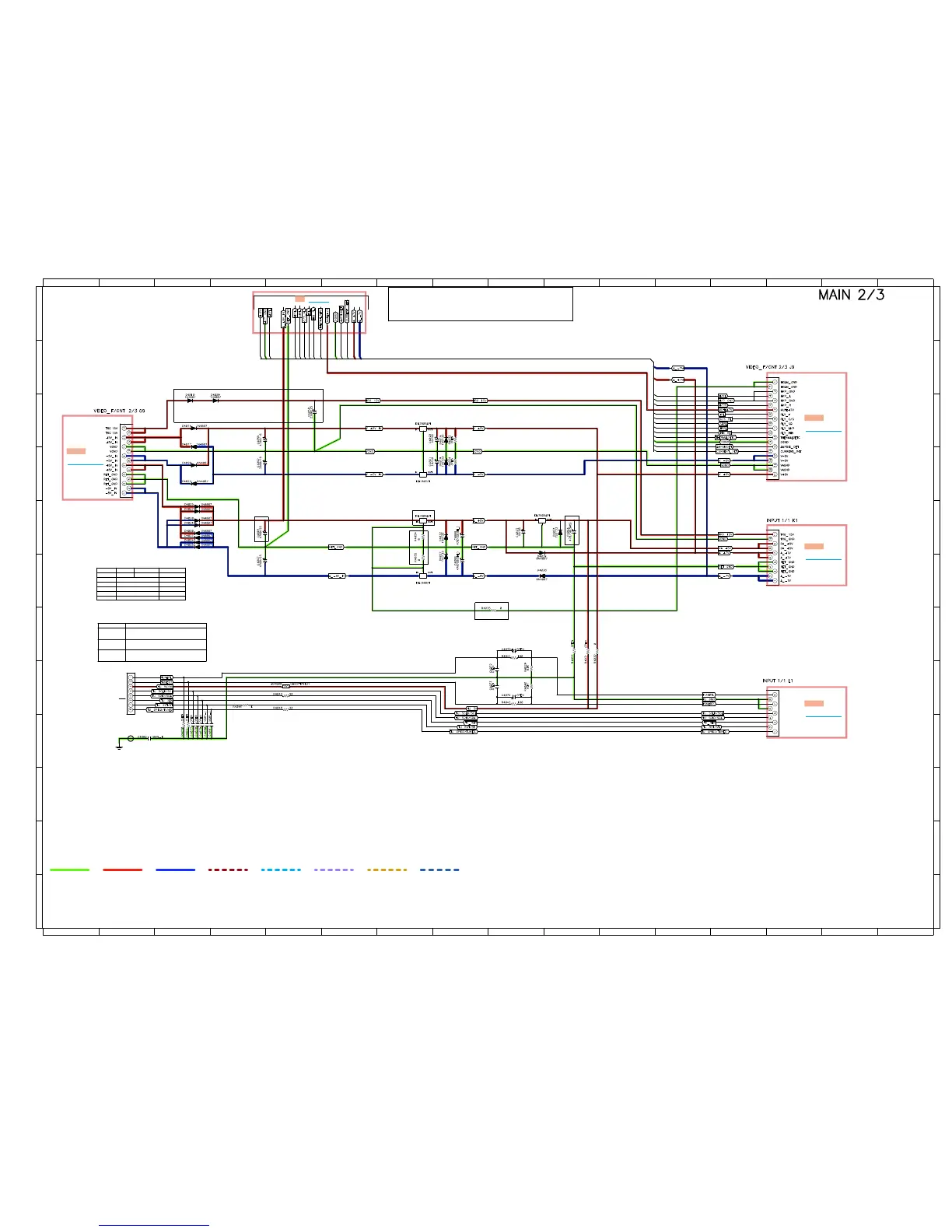

SCHEMATIC DIAGRAMS (27/30)
27-MAIN_TUNER_REG
GND LINE POWER- LINE POWER+ LINE ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL VIDEO SIGNAL COMPONENT(Y)
OTHER AVR1N
OTHER AVR1U
AREA
RST
SEN
SCLK
KIA7808API
O
E3
BA08T
X
U/N/K
OPTION A
OTHER AVR1K
MODEL
GPIO2
TU_5V
SDIO
AVR-S900
X
4700UF/25V
TUNER
O
OTHER AVR1
6800UF/25V
TUNERR
AVR-X2100E1C/K
AVR-S900E3
TUNER OPTION
OPTION D
OPTION B
KST-MW004MV1-S63-1 FM/AM NA
KST-MW104MV1-S63-1 FM/AM/RDS EU
E3/E2/E1/E1C/K
OPTION C
OPTION D
OPTION F
TU_GPIO2/TUNED
TU_RST/ST
TU_SDIO/SDA
TU_GND
TU_GND
TUNERL
AVR-X2100E2/E1
AVR-X2100E3
MODEL
OPTION F
OPTION A
OPTION C
AVR-X2100
100UF/16V(SMS)
OPTION A
OPTION B
TU_SEN
TU_SCLK/SCL
TUNERR
TUNERL
* MODEL / AREA OPTION
CHASISGND
KST-MW004MV1-S63SV-1 4GANG+MW+50US NA
470UF/50V(SMS)
AVR_S900/X2100 : 4700UF/25
V
OTHER AVR1 : 6800UF/25V
TUNER / REG PART
CP4002
PACK4000
CP4007
CP4006
CP4003
IC4000
IC4001
IC4002 IC4003
IC4004
3G
TO G3
CP4006
TO CN4006
CP4002
TO CN4002
CP4003
TO CN4003
CP4007
TO CN4703
139
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
