JIG FOR SERVICING
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for HDMI PCB
-Items to Be Prepared-
8U- 110084S : EXTENSION UNIT KIT : 1 Set
8U- 110136S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Not supplied) : 2 sheet
Ground lead (Not supplied) : 2 pc
-Procedures-

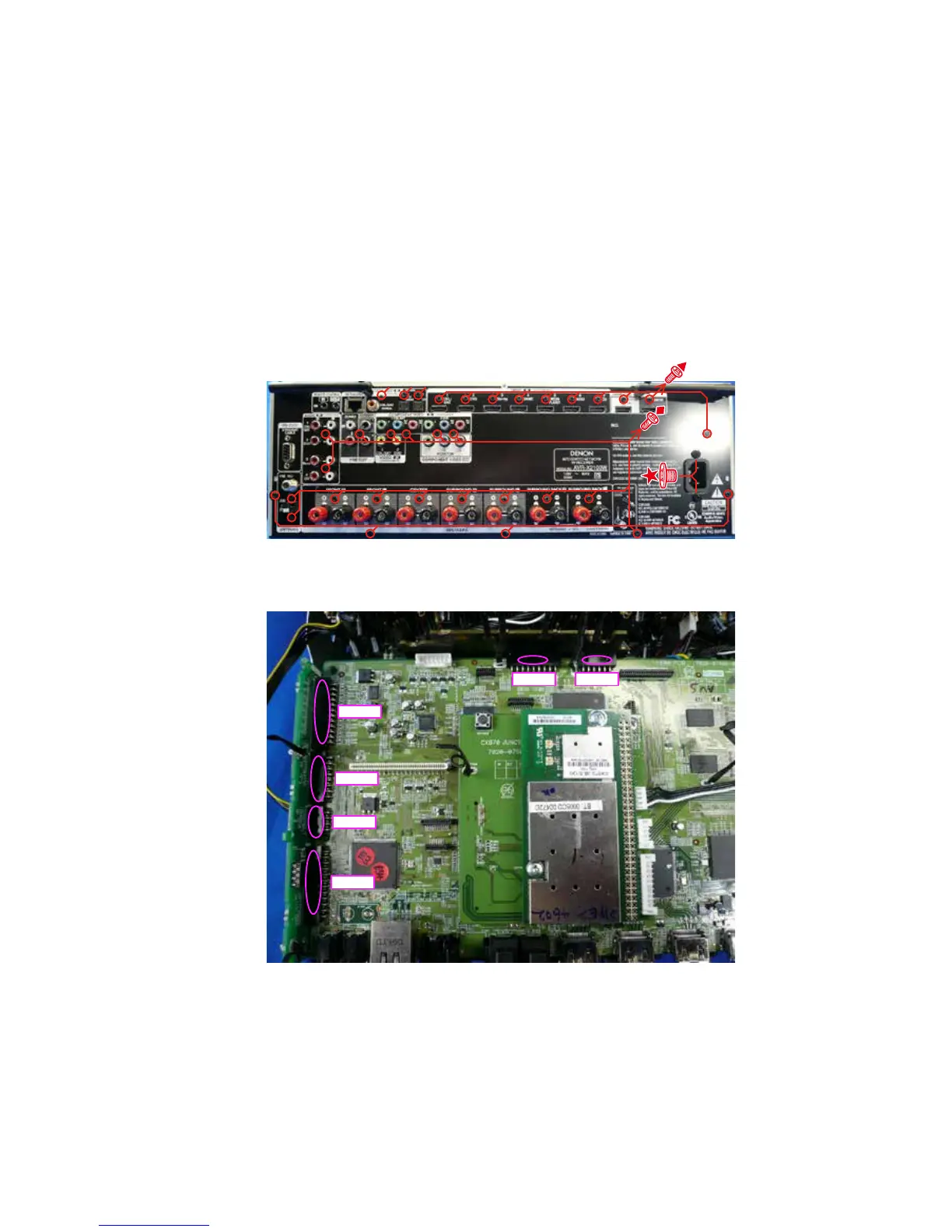

(1) Remove the screws.
(2) Remove the connector PCB.
Front side
N1033N1018
N1014
N1015
N1013
N1016
57
To Next Page
