Denon AVR-S900W Service Manual

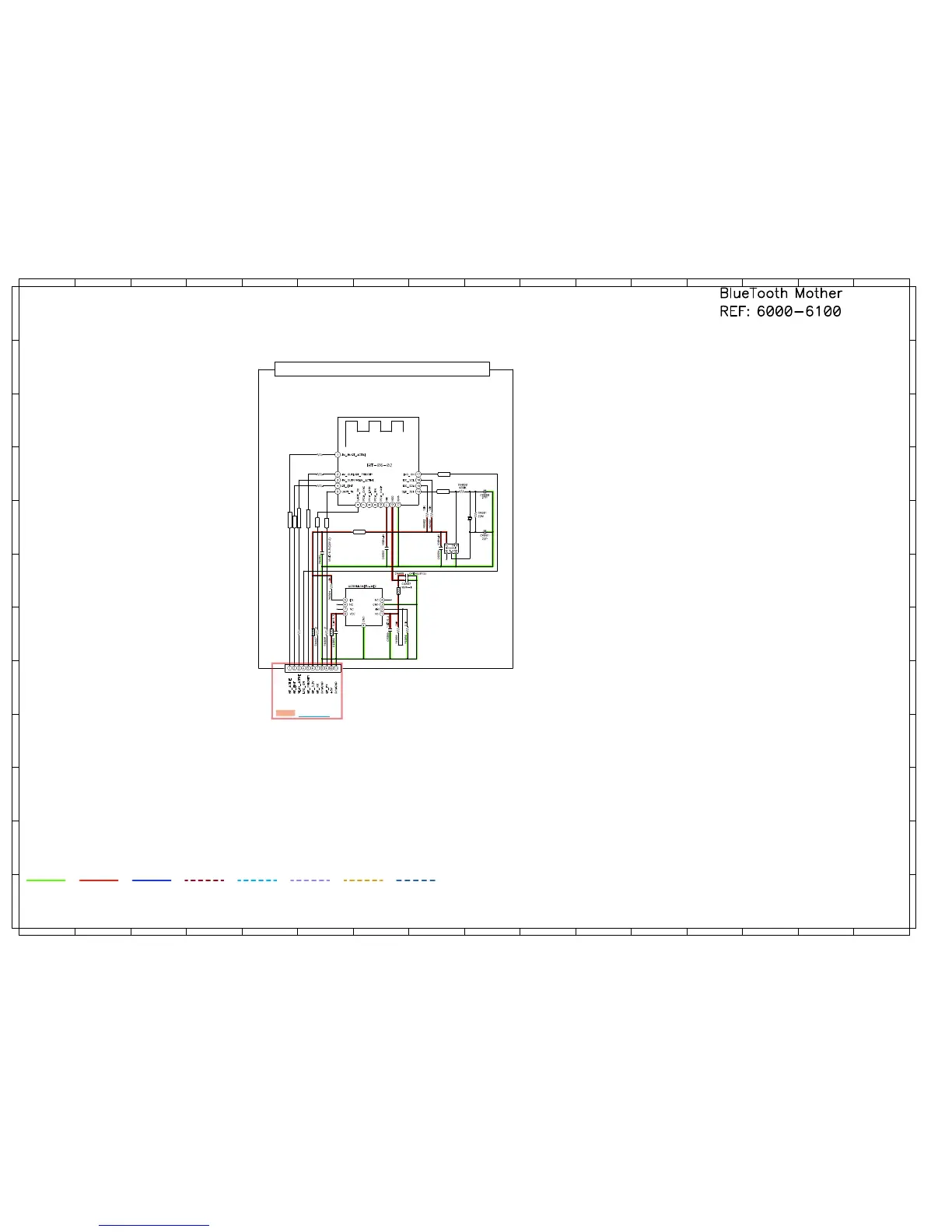

SCHEMATIC DIAGRAMS (4/30)
04-BlueTooth
GND LINE POWER- LINE POWER+ LINE ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL VIDEO SIGNAL COMPONENT(Y)
BT_EINT
BT_ACTIVE
WLAN_ACTIVE
BT_PRIORITY
BT_RX
BT_TX
L6002 0
32.768KHZ(FA-135)X6000
R6010 0
R6009 0
BT_3.3V
R6012 0
R6011 0
L6001 CB05YTYH221 L6000 CB05YTYH221
CLK_32K
LDO_ON
AVR-X2100 BT Mother B'D
CP6001
U6001
U6000
IC6000
CP6001
TO N7005
116
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Denon AVR-S900W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Dolby Atmos	Yes
DTS:X	No
HDMI Pass-Through	Yes
Input Impedance	47 kOhm
Input Sensitivity	200 mV
THD at rated output	0.08%
Signal-To-Noise Ratio	98 dB
DAC Resolution	24-bit / 192kHz
HDMI Switching	Yes
AirPlay	Yes
DLNA	Yes
Dimensions	17.1 x 6.6 x 13.3 inches
Power Output	90 W
Response Bandwidth	10Hz-100kHz
Output Impedance / Channel	6 Ohm
Inputs	HDMI
Outputs	HDMI
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV
Supported Video Formats	4K
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
