(2) Remove the connector wire.
(3) Remove the connector wire. Remove the screws.

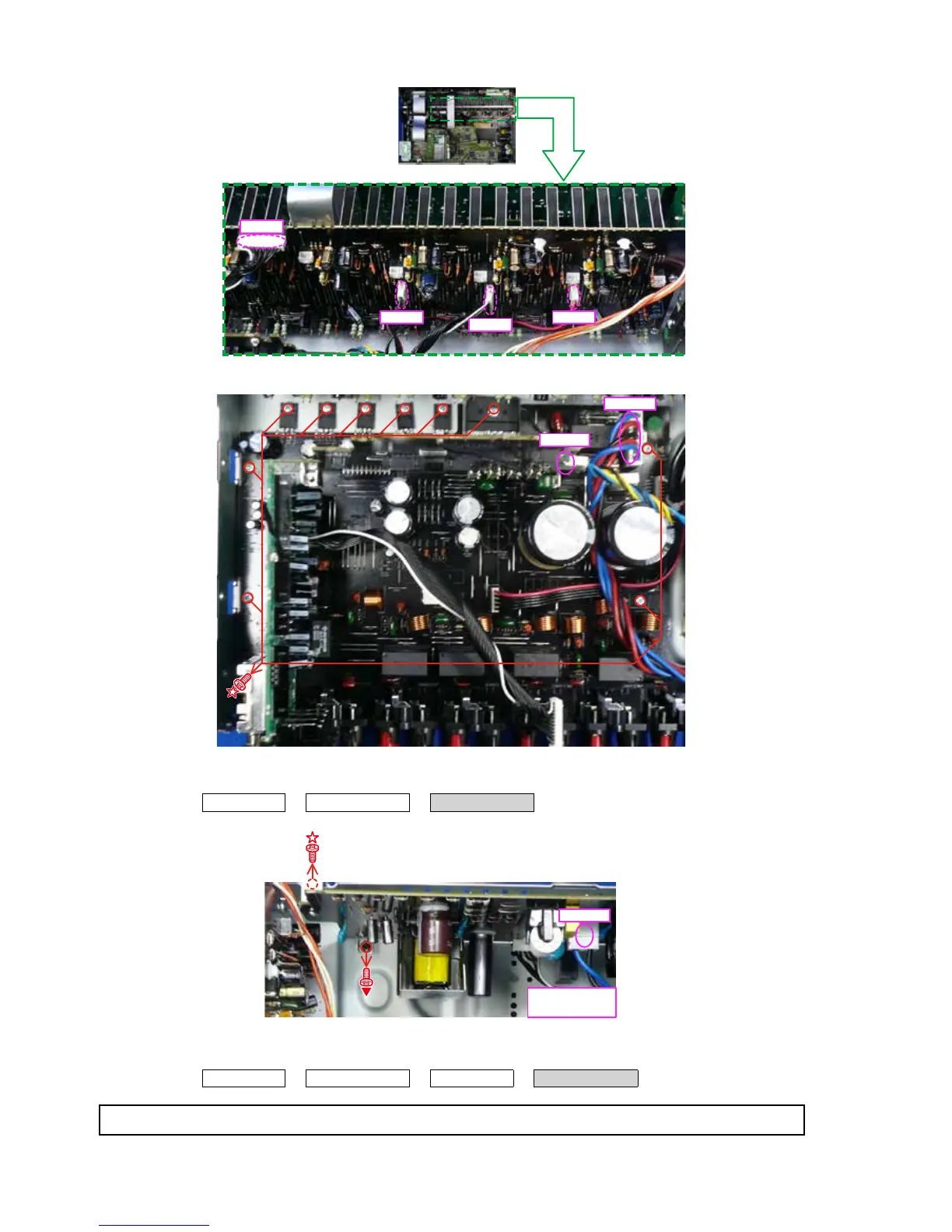

6. SMPS PCB
Proceeding : TOP COVER → BACK CHASSIS → SMPS PCB
(1) Remove the connector wire. Remove the screws.
7. TRANS POWER
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB → TRANS POWER
CP402
CP401
CP405
CP403
CN4212
CP5003
CP4142
TO HDMI PCB
N1029
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "TRANS POWER".
