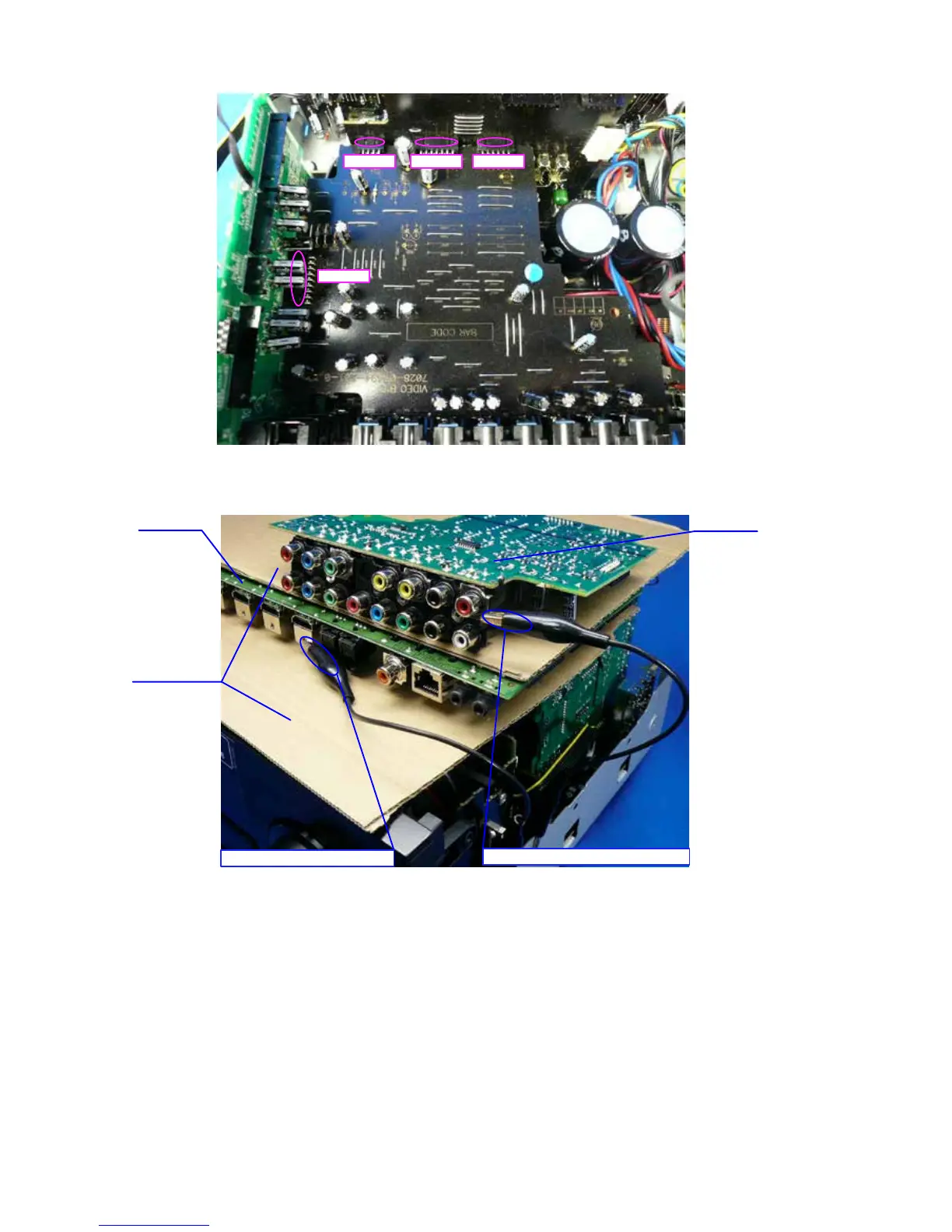

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
Front side
CN5000CN5001CN5004
CN5003
PCB HDMI
PCB VIDEO
Insulation sheet
CHASSIS-COMPOSIT CONNECTOR
CHASSIS-HDMI CONNECTOR
